VNP-96P

Fully-automatic Nucleic Acids Extraction Instrument

0.00 0.00

Not Available For Sale

    Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

    https://www.yamato-usa.com/web/image/product.template/14375/image_1920?unique=c142cc8

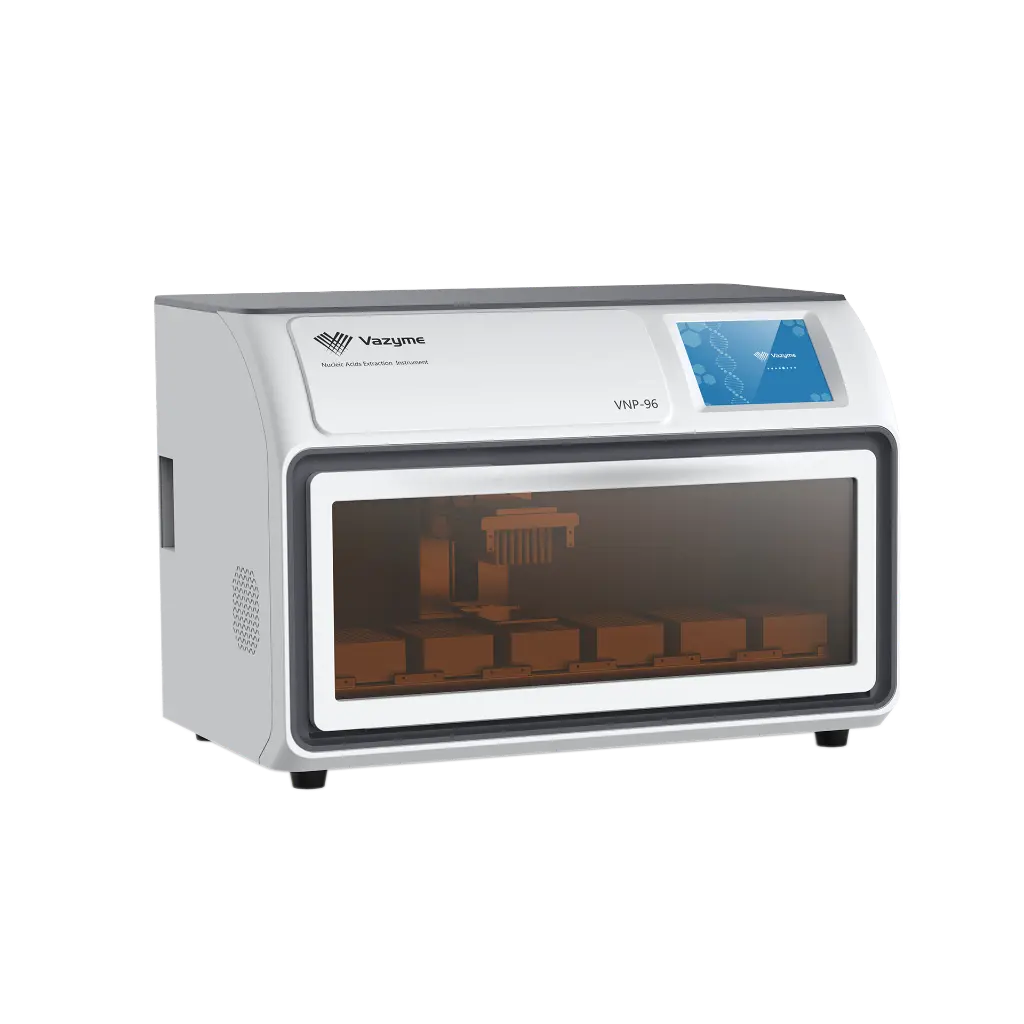

    VNP-96P


    VaPura is a high-throughput and high-precision nucleic acid extractor used in pair with prepackaged extraction reagents based on silica-coated superparamagnetic beads to extract and purify nucleic acids from the blood, tissue, cells, body fluids, bacteria, viruses, and many other biological samples. It purifies and enriches nucleic acids by utilizing magnetic rods to capture, transfer, and release magnetic beads. With highly automated, fast, and simple workflow, the product is ideal for a wide  range of applications in molecular diagnosis and animal disease detection.


    Features

    Simple and efficient

    Just add the sample and finish fully automatic extraction; One-button start to run with preset program.

    High extraction efficiency

    Recovery rate is higher than 95% with strong magnetic force adsorption of magnetic beads and permanent magnet material.

    Highly effective anti-contamination

    Reduce contamination risk with built-in UV module and drying fan system.

    Power failure protection function

    After the instrument is powered on again, it can continue to run, avoiding sample waste caused by power failure during the process.


    Specifications

    Parameter VNP-96
    Principle Magnetic Beads-based Method
    Sample throughput 1 - 96
    Use kit 96 deep-well plate
    Processing volume 20 μL - 1000 μL
    Difference between purification repeats CV ≤ 5%
    Heating temperature Room temperature - 120°C
    Temperature accuracy ±1°C
    Operation interface 8-inch color touch screen, can be connected to external mouse
    Internal procedures 1000 programs can be stored
    Program management New, edit, save as, delete, mode program
    Instrument interface 3 type A USB, 1 Ethernet port, 1 DB9 debugging interface
    Network Wi-Fi function
    Disinfection UV disinfection
    Maximum input power AC 100–240 V, 50Hz/60Hz, 500 W
    Dimensions (W×D×H) UV disinfection
    Weight (kg) 70 kg
    Location Indoor use
    Altitude ≤ 2000 m
    Mains supply voltage fluctuations ≤ ±10%
    Overvoltage category II
    Pollution degree 2
    Degree of ingress protection IPX0

    Storage

    Store at 15 ~ 25°C and transport at room temperature.
