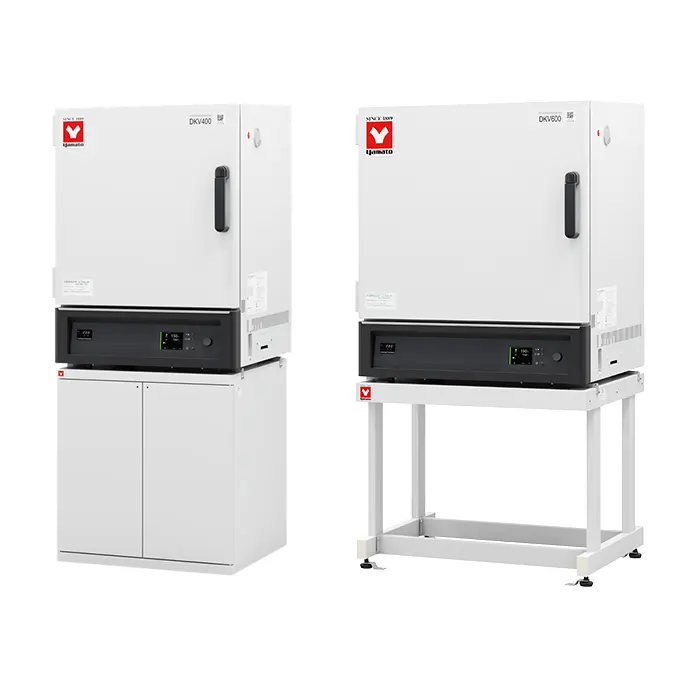

Yamato DKV Series Standard Programmable Forced Convection Ovens

Programmable forced convection ovens with new features that enhance versatility and performance

$ 1.00 1.0 USD $ 1.00

Not Available For Sale

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us
https://www.yamato-usa.com/web/image/product.template/14369/image_1920?unique=742422e

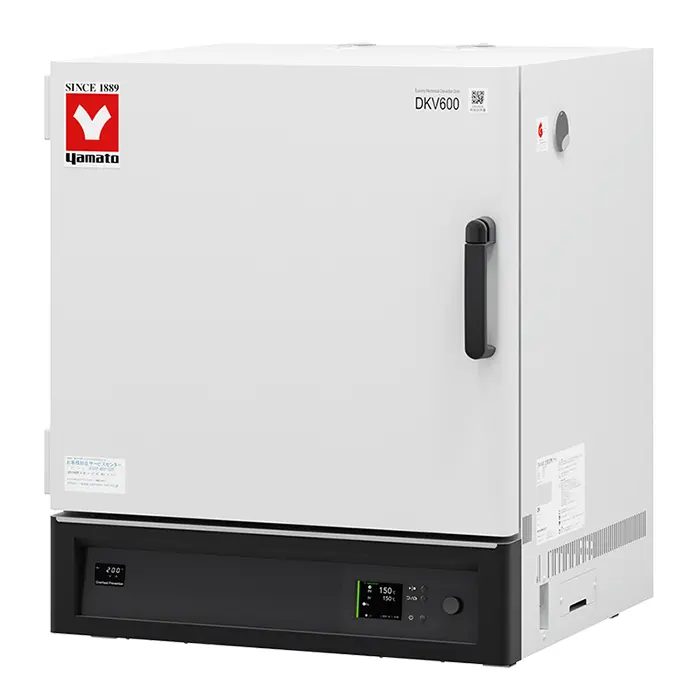

DKV400/410/600/610/810/910​


Features

  • Superior temperature accuracy
  • Easy to use, highly visible 3.5 in. color LCD controller
  • Door hinges with click function
  • Fixed temperature, Quick Auto-Stop / Auto-Stop / Auto-Start / Programmed Auto-Start
    (Time and Clock Settings), Programmed (Time Settings) operations
  • Increased safety and self-diagnostic functions
  • User-friendly and easy to maintain
  • Built in cable and exhaust ports


Safety features

  • Self-diagnostic functions (temperature. sensor abnormal, heater disconnection, SSR-short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection


40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model DKV400 DKV410 DKV600 DKV610 DKV810 DKV910
Circulation method Forced convection
Operating temp. range1 Room temp. +10°C to 260°C RT +10°C to 220°C
Temp. fluctuation2 ±.6°C (at 270°C) ±.5°C (at 270°C) ±.6°C (at 270°C) ±.6°C (at 220°C)
Temp. gradient2 9°C (at 270°C) 11°C (at 270°C) 11°C (at 220°C)
Temperature rise rate2 3.3°C / min 2.1°C / min 3.4°C / min 2.5°C / min
Temp. rise time2 ~75 min. ~115 min. ~75 min. ~80 min.
Exterior material Chromium-free electrogalvanized steel sheet, baked coating

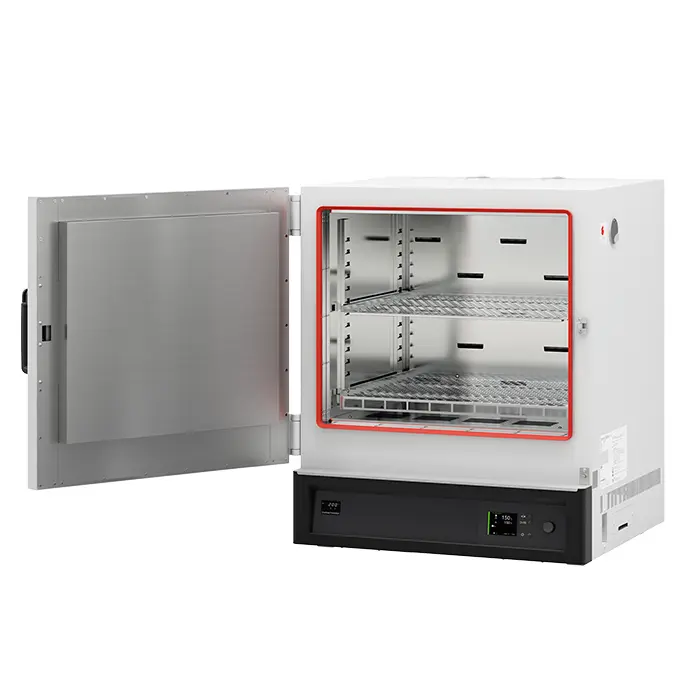

Chamber Stainless steel
SUS tube heater 1.5kW 2.5kW 3.0kW
Cable port Stainless steel tube heater
Exhaust port 33mm I.D. x 2 (top) 33mm I.D. x 2 (back)
Safety devices Self-diagnostic functions (automatic overtemperature protection, temperature sensor error, SSR short circuit, heater disconnection, fan error, clock element error, main relay error, memory error, internal communication error) / independent overheat prevention device / door switch (door alarm) / overcurrent leakage breaker / fall prevention fitting (Model 810/910)
Controller type VSD-1 Controller
Temp. control system PID control by microcomputer
Temp. display 3.5-inch color LCD panel digital display
Timer / clock timer 1 minute to 99 hours 59 minutes / Date: hour: minute (up to 31 days later)
Operation modes Fixed temperature / Timer: Hourly quick auto stop operation / Timer: Hourly auto stop operation / Timer: Hourly auto start operation / Program operation / Timer: Hourly program auto start operation
Additional functions Calibration offset / Power failure return mode selection function / Timer Wait function / Security management function / Temperature upper/lower limit alarm function / Fan OFF delay function / Power failure alarm / External communication terminal (RS-485) / Temperature output terminal (4-20mA) / Time-up output terminal / Error output terminal / Recorder terminal / Program preview function / Operation trend function
Sensor Temperature controller / independent overheat prevention device: K thermocouple
Safety devices3 Self diagnosis functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Internal dimensions (W×D×H) 450×450×450 mm 600×500×500 mm 600×500×1000 mm 1090×500×1000 mm
External dimensions (W×D×H)4 580×635×830 mm 730×685×880 mm 730×685×1610 mm 1220×685×1610 mm
Internal capacity 90L 150L 300L 545L
Chamber shelf load ~15kg/shelf
Chamber load capacity ~30kg ~60kg ~120kg
Number of shelves / pitch 11 steps / 30mm 13 steps / 30mm 29 steps / 30mm 29 / 30mm×2 columns
Power supply 50/60Hz

Rated current		 115V, 13.5A

with plug		 220V, 7.5A

no plug, round terminal		 115V, 13.5A

with plug		 220V, 7.5A

no plug, round terminal		 Single phase 220V, 12A

with plug		 Single phase 220V, 14.5A

no plug, round terminal
Weight ~60kg ~75kg ~120kg ~195kg
Included shelf plate / brackets 1 pc. / 2 pcs. 3 pc. / 6 pcs. 6 pc. / 12 pcs.
Fall prevention fittings - - 4 pcs (fixing hole diameter Φ14 M12 recommended)

*1.  Performance (excluding temperature rise time) is measured at rated voltage, 50Hz or 60Hz frequency, room temperature 23° C ±5° C, humidity 65%RH ±20%, and no load. Note that the maximum temperature in the temperature control range may not be reached if the power supply voltage is below the rating or if the outside temperature is low.

*2.  Temperature rise time is reference data for rated voltage, 50Hz or 60Hz, room temperature 23°C, humidity 65%, and no load. Note that the temperature rise time may be longer when the power supply voltage is below the rating or when the outside temperature is low.

*3.  If the product is used beyond the operating voltage range ( ±10% of rating), there is a possibility that the safety function will malfunction. Pay attention to the power supply voltage when using the product.

*4.  Protrusions are not included.

Click on the links below to download the associated PDFs.

Oven Overview

DKV Series Catalog

DKV Series Introduction Brochure

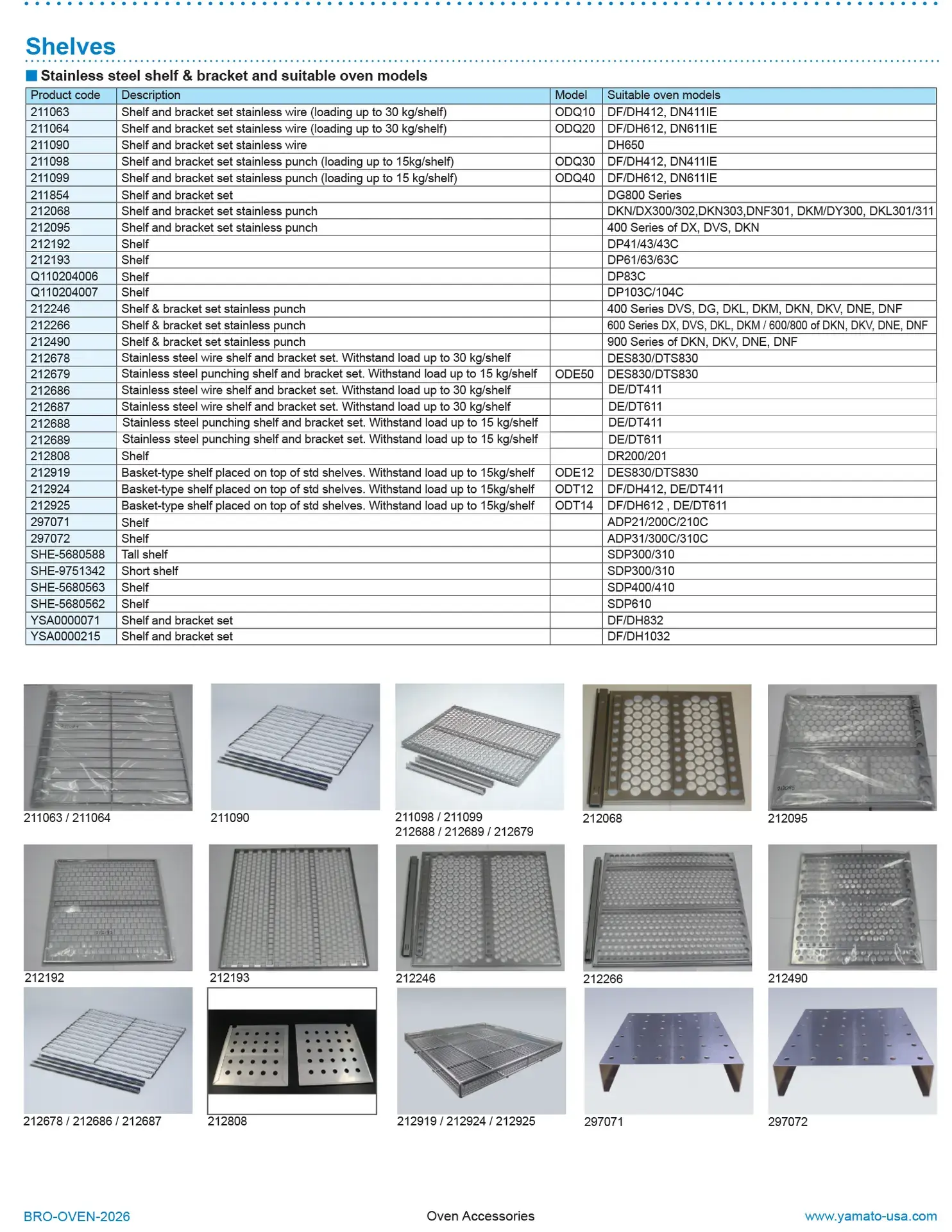

Oven Accessories
