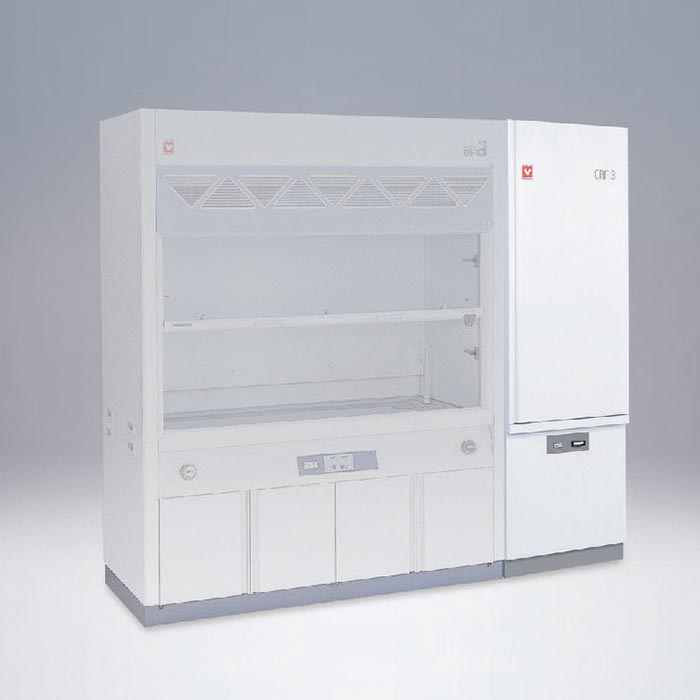

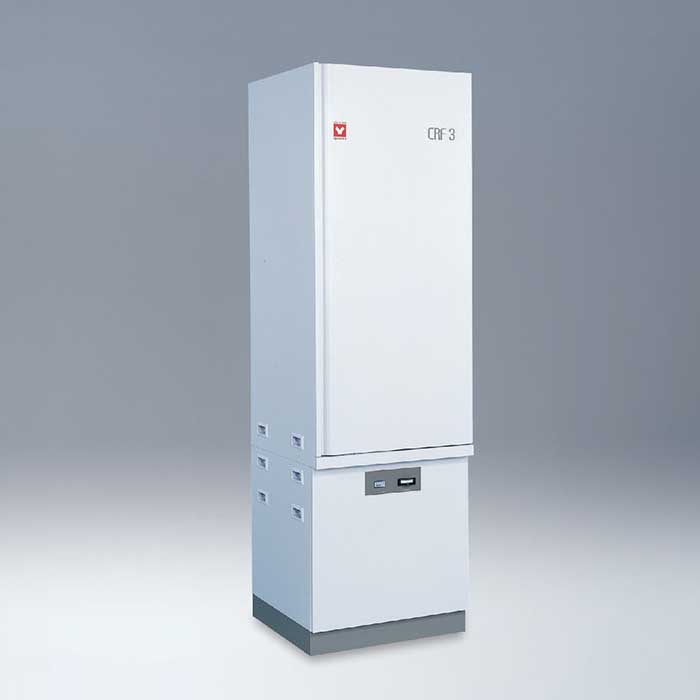

Yamato CRF3 Fume Hood Exhaust Gas Washer

Yamato CRF3 Fume Hood Exhaust Gas Washer

Highly efficient dry type exhaust gas washing device with selectable adsorbent of activated carbon and four types of chemical adsorbent according to different target gas.

Model
- CRF3-12L
- CRF3-19L
- CRF3-45L
- CRF3-12V
- CRF3-19V
- CRF3-45V

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Interested In Our Yamato CRF3 Fume Hood Exhaust Gas Washer?

Find out if this model is suitable for your application.

Send me a quote

CRF3

Features

Recommended especially for hazardous and highly toxic vapors; these exit gases should pass through ‘scrubbers’
Supports large volume exhaust
Suitable for low ceiling space
Adsorbent usage life displayed by integrated time meter

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.


Common specifications
Exterior	Cold-rolled steel sheet Chemical resistant baking finish
Interior	SUS or PVC (user preference)
Adsorbent	Activated carbon (K), Chemical adsorbent (A2, E2, F, O2)
Differential pressure gauge	(0~50mmH₂O) 0~490Pa
Accumulated timer	0~9999.9h
Optional item	Connection duct to fume hood


Model	CRF3-12L	CRF3-19L	CRF3-45L	CRF3-12V	CRF3-19V	CRF3-45V
Interior	SUS			PVC
Adsorbent	Activated carbon (K), Chemical adsorbent (A2, E2, F, O2)
Height	2350mm
Depth	750mm
Width	650mm	750mm	1,050mm	650mm	750mm	1,050mm
Weight	180kg	240kg	350kg	180kg	240kg	350kg
Volume capacity (m³/min)	12	16~19	28~45	12	16~19	28~45
Internal pressure loss*¹ (Pa/mmH₂O)	294/30	343/35	294/30~490/50	294/30	343/35	294/30~490/50
Adsorbent weight *²	30kg	40kg	60kg	30kg	40kg	60kg


Adsorbent selection table	Activated carbon	Chemical adsorbent
Grade	K	A2	E2	F	O2
Target gas	Benzene	Hydrochloric acid	Hydrogen sulfide	Caustic soda	Ozone
	Toluene	Sulfuric acid band	Sulfurous acid gas	Ammonia	Chlorine
	Xylene	Acetic acid	Amine	Amine	Hydrogen peroxide
	Halogen	Hydrofluoric acid	Ethylene
	Hydrocarbon	Phosphoric acid
		Nitric acid

PiCOEXPLORER Application Flyer – Summary

Amino Acid (Glutamin Acid) Evaluation

Comparison of Mouse Spleen Protein Quantification

Evaluation of Nitrite Ion Concentration

Measurement of Antioxidant Activity (DPPH Radical Elimination Method)

Measurement of Iron Ions

Measuring Optical Density of Microbial Culture (E.Coli)

Protein Quantification (BCA Assay)

Protein Quantification (Bradford Assay)

Quantification of Glucose Level (Reducing Sugar Concentration)

Quantification of Protein Extracted from Tumor Transplanted to Mouse by BCA Method

Turbidity Measurement of E. Coli

Click on the links below to download the associated PDFs.

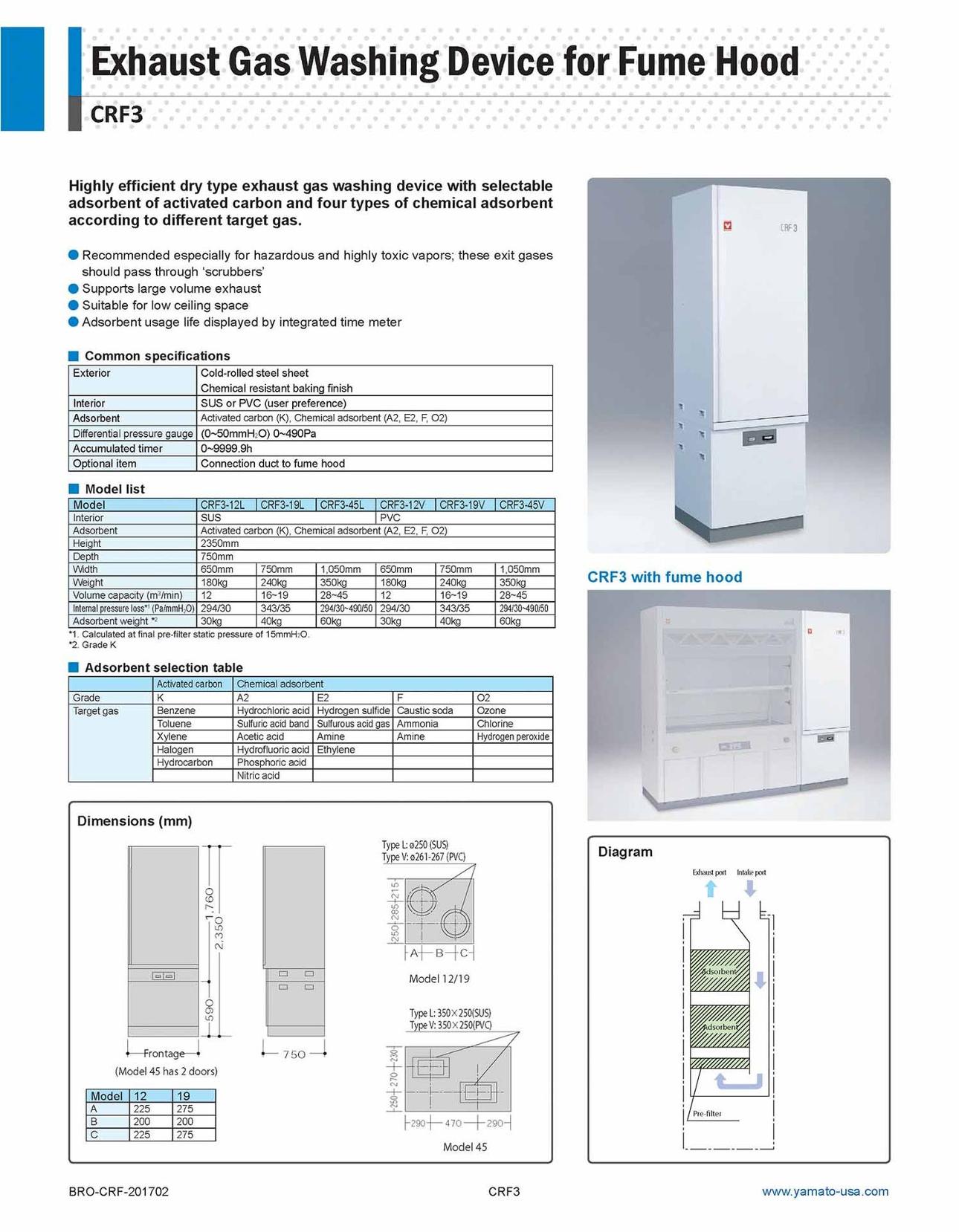

CRF3 Catalog
