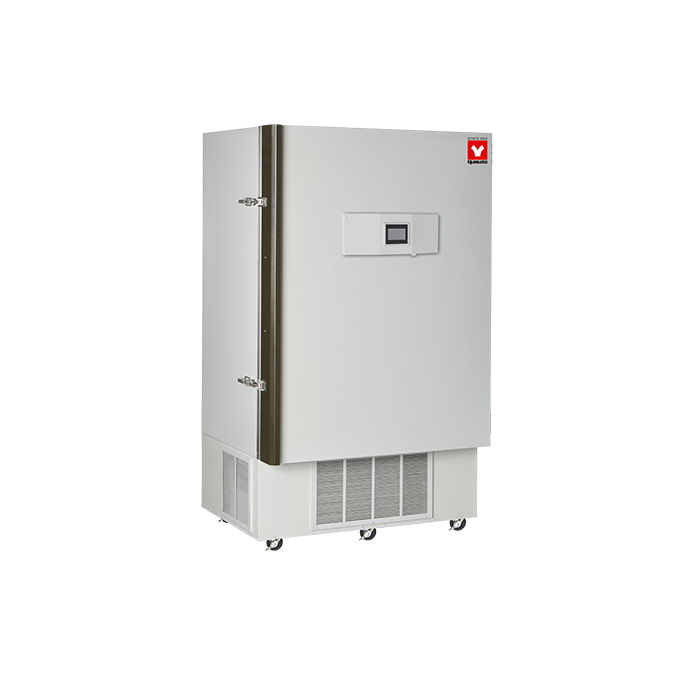

Ultra-Low ULF Platinum Series Vertical (Upright) Freezers

https://www.yamato-usa.com/web/image/product.template/45/image_1920?unique=43fe9c9

-40˚C to -85˚C

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Ultra-Low ULF Platinum Series Vertical (Upright) Freezers?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

​Looking for an Ultra-Low Chest Freezer?


Features


2X Variable Speed Hermetic Compressors
Temperature Hi/Low Alarm with Real-Time Email & Text Notifications
​
Intuitive Touchscreen Interface
​
Battery Backup

Excellent Temperature Stability
​
Remote Access Via Smart Devices

User Access Control

Automated Data Logging

CFC & HCFC free
​
COVID-19 Vaccine Storage

Energy Saving


Primary Uses

  • Clinics
  • Research
  • Small laboratories
  • Hospital rooms
  • Medical clinics
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

COMMON SPECIFICATIONS OF VERTICAL (UPRIGHT STYLE) MODELS

Model ULF Platinum Series
Temperature range -40ºC to -85ºC / -40ºC to -80ºC
Temperature control system Touch Screen control
Displays set point and chamber temperature
Hi/Low Alarm W/ Email and SMS notification
Alarm Relay Dry Contacts
Power Failure Dry Contacts
Battery Back-up
Viewable Temperature graph
Data logging downloadable via USB or FTP
Multi-Level Security
VNC Remote Access via PC / smart devices
Digital alarm system with relay Battery operated alarm system will emit an audible and visual signal when there is a mechanical or electrical failure. Alarm has over and under temperature setting, alarm
silencing switch, and battery test switch. Also provided is a relay for remote alarm hook-up.
Access port Mounted in left hand side of the cabinet will be a 1/2" porthole leading into the chilling chamber, complete with plugs
Refrigeration system Cascade type - Two hermetic compressors.
CFC & HCFC free refrigerants
Construction Chamber is 14-ga. zinc coated galvanized steel.
Exterior is 16-ga. steel. Powder coated cool gray finish.
Electrical requirements 115V, 60 Hz, 1 phase
208V, 60 Hz, 1 phase
230V, 60 Hz, 1 phase
220V, 50 Hz, 1 phase
220V, 60 Hz, 1 phase
Optional accessories Chart recorder, CO² and LN² back-up system, Racks, Cold safety gloves


UNIQUE SPECIFICATIONS OF VERTICAL (UPRIGHT STYLE) MODELS

Model Capacity Rack Capacity Shelving Temp. Range Internal Dimensions External Dimensions List Price

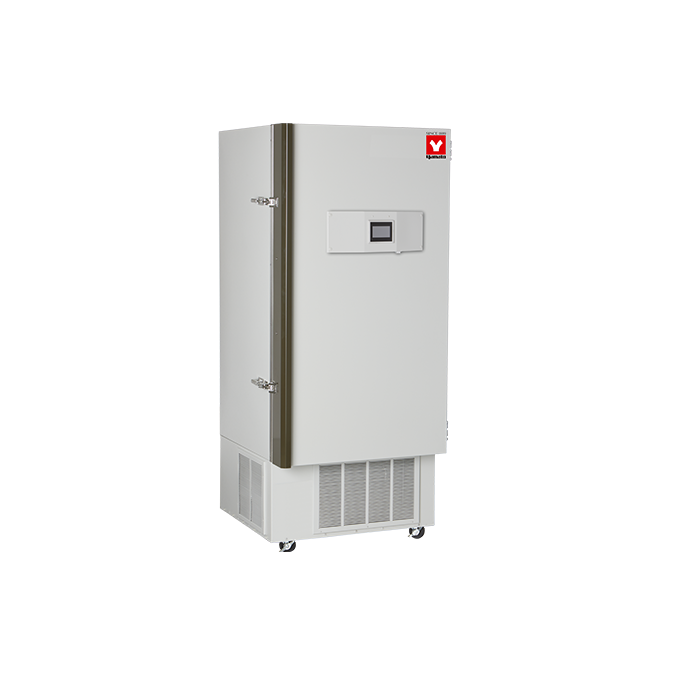

ULF401UP 370L / 13 cu. ft. 15 4 adjustable
(5 compartments)		 -40ºC to -85ºC 20” x 22” x 51.25
50 x 55 x 130 cm		 35" x 34.5" x 79.5"
88 x 87 x 201 cm		 $19,185
ULF501UP 505L / 18 cu. ft. 20 4 adjustable
(5 compartments)		 -40ºC to -85ºC 23” x 26” x 51.25”
58 x 66 x 130		 40" x 36" x 79.5"
101 x 91 x 201 cm		 $19,705
ULF601UP 626L / 22 cu. ft. 25 4 adjustable
(5 compartments)		 -40ºC to -85ºC 28.5” x 26” x 51.25”
72 x 66 x 130 cm		 43" x 37" x 79.5"
109 x 93 x 201 cm		 $21,380
ULF701UP 710L / 25 cu. ft. 30 4 adjustable
(5 compartments)		 -40ºC to -85ºC 34” x 25” x 51.25”
86 x 63 x 130 cm		 50" x 37" x 79.5"
127 x 93 x 201 cm		 $23,255
ULF801UP 792L / 28 cu. ft. 30 4 adjustable
(5 compartments)		 -40ºC to -80ºC 38” x 25” x 51.25”
96 x 63 x 130 cm		 54" x 37" x 79.5"
137 x 93 x 201 cm		 $28,080
ULF901UP 877L / 31 cu. ft. 35 4 adjustable
(5 compartments)		 -40ºC to -80ºC 42” x 25” x 51.25”
106 x 63 x 130		 60.5" x 37" x 79.5"
153 x 93 x 201 cm
 $28,415


Click on the links below to download the associated PDFs.

ULF Platinum Series Ultra Low Freezers

ULT Freezer and Refrigerator Buyer’s Guide

To download Operational Manual, visit our Technical Support Center

​
