RealTime-PAGE View RT-PV-051 Electrophoresis Observation Device
Real time observation of molecular movement in a transparent gel during electrophoresis
| Model: RT-PV-051 |
Interested In Our RealTime-PAGE View RT-PV-051 Electrophoresis Observation Device?
Find out if this model is suitable for your application.
RT-PV-051
Features
- Allows for early confirmation of results through real-time observation, reducing time needed for electrophoresis experiments
- No CBB staining required
- Reduces time, effort, and waste involved in protein purification
- Electrophoresis conditions (e.g. migration time) can be determined through observation
- Simple operation method makes it easy to use
- Lightweight device, portable with one hand, can be easily moved and used anywhere due to its USB power supply

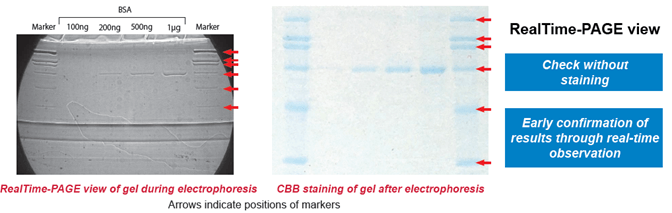

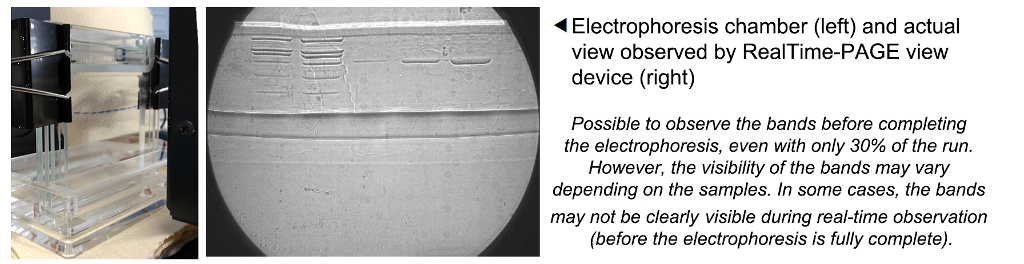

Observation of protein bands in gels without staining
Comparison between real-time observation and post electrophoresis gel CBB staining.
Field of view is Φ50mm. Move device or electrophoresis tank to observe the whole thing.
Waste liquid is reduced since staining is not required, making the unit environment friendly.

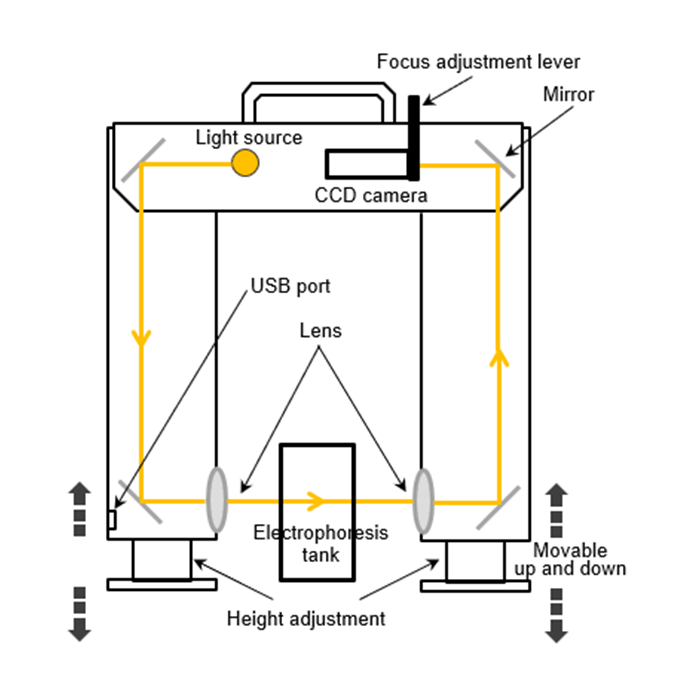

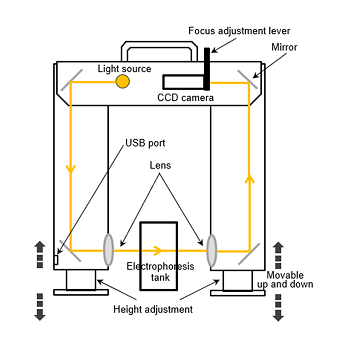

Shadowgraph method (patent no. 6281805)
The shadowgraph method can be utilized to enhance the contrast in refractive indices, allowing the visualization of bands running through the gel during electrophoresis.

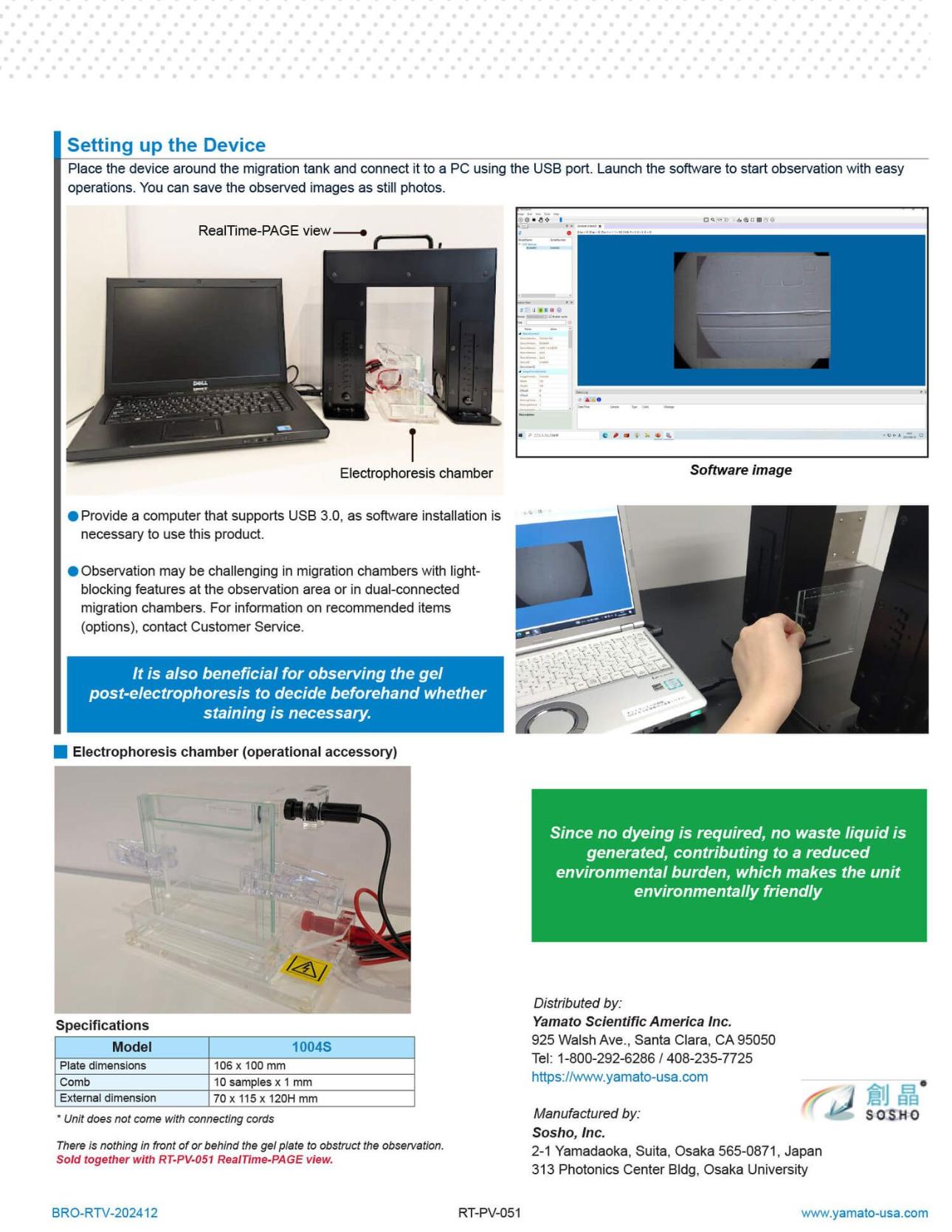

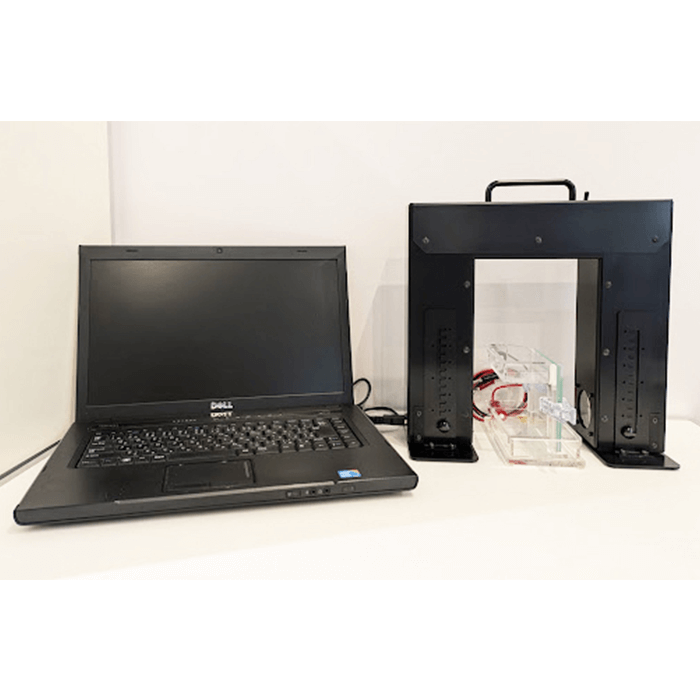

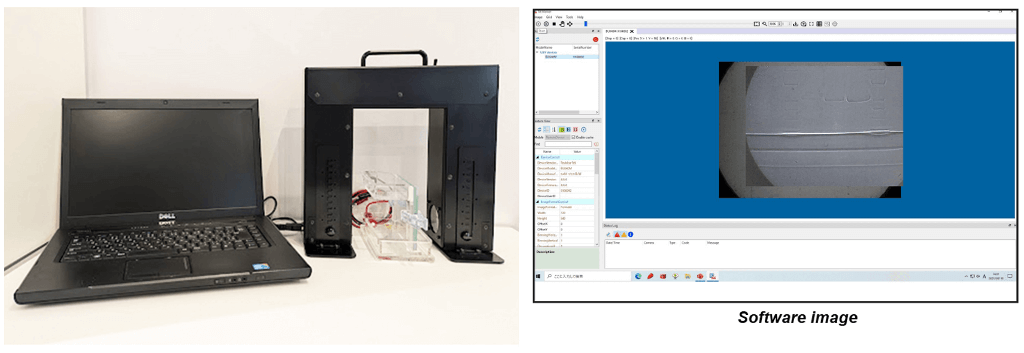

Easy set-up and simple operation
Set up the electrophoresis tank and connect to a PC using the USB port.
Launch the software to start observation.
Observed images can be saved as still photos.

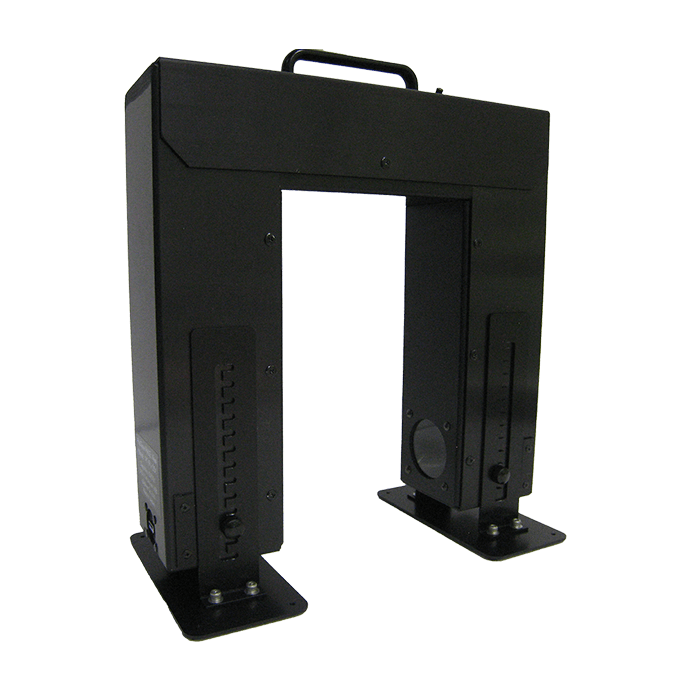

Main Unit
Due to the 50 mm diameter field of view, it's not feasible to observe the entire gel at once.
However, by adjusting the electrophoresis chamber or device, different parts of the gel can be
observed.
Operational Accessory

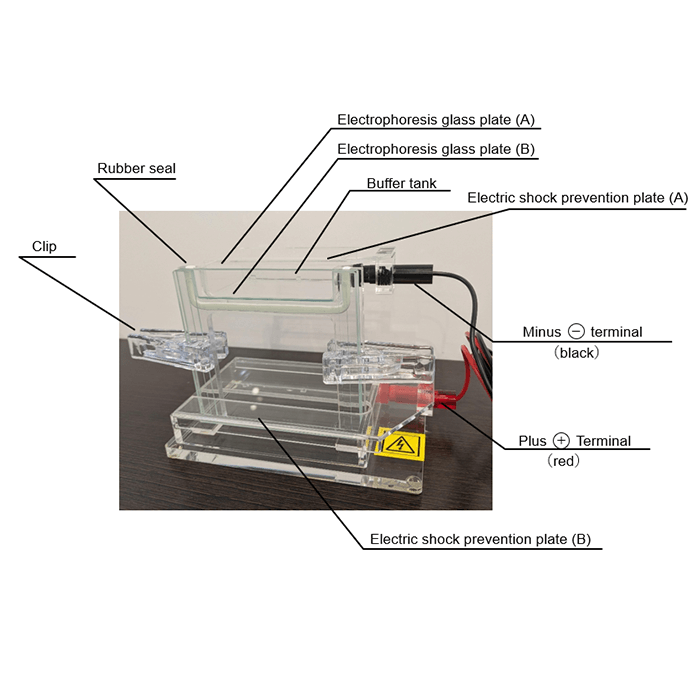

Electrophoresis Chamber
* Unit does not come with connecting cords
There is nothing in front of or behind the gel plate to obstruct the observation.
Sold together with RT-PV-051 RealTime-PAGE view.
