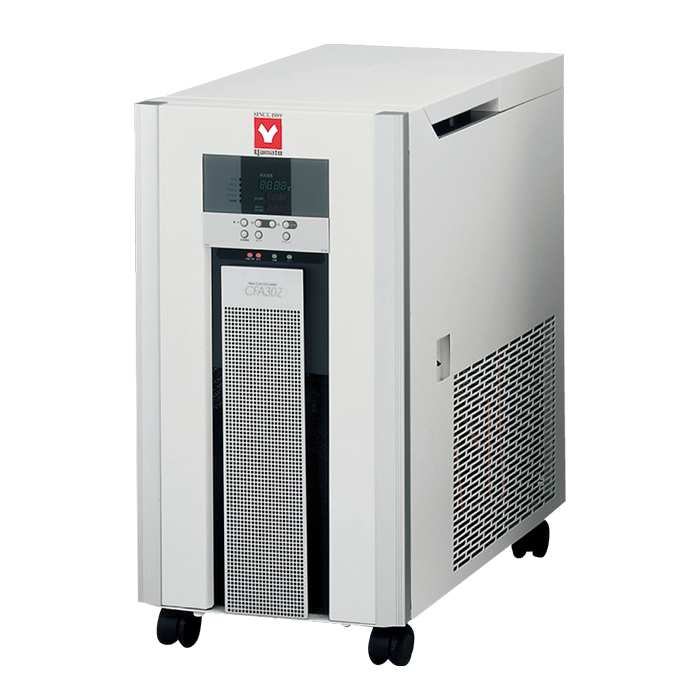

Yamato CFA302 Water Circulator

Externally-sealed precision circulation system

Model
- CFA302

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Model: CFA302

Interested In Our Yamato CFA302 Water Circulator?

Find out if this model is suitable for your application.

Send me a quote

CFA302

Features

Provides high-precision circulation water with temp. range of -10°C+60°C
Powerful cooling capacity
Continuous monitoring of water level, abnormal refrigerator pressure, refrigerator operation, circulation pump operation and more
Standard equipped with a variety of support functions such as auto-stop operation, auto-start operation, temperature output terminal, and calibration offset function
Compatible with TE100 Thermal Analyzer

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Technical Specs
Downloads

MODEL	CFA302
PERFORMANCE^*1
Circulation method	External closed system circulation
Temperature control range	-10~+60°C
Setting temperature range	-15 ~ +65°C
Temperature control accuracy	±0.1°C at 20°C JTM
Temperature fluctuation	±0.3°C at 20°C JIS
Temperature display unit	0.1°C
Cooling capacity	~ 370W (318Kcal/h) at liquid temperature 10°C
Ambient temp. range	5 ~ 35°C
Circulation capacity (50/60Hz) Maximum flow rate (pump capacity)	8.9/10.3L/min (15.0/17.0L/min)
Circulation capacity (50/60Hz) Maximum head (pump capacity)	6.6/9.0m (8.0/11.0m)
CONFIGURATION
Bath	Stainless steel SUS304
Temperature control system	PID control
Temperature sensor	Double sensor: Pt100Ω (for temperature control) K-thermocouple (for overheating prevention)
Temperature setting / display method	Digital setting
Refrigeration system/rated performance	Air cooling / 300W
Refrigerant	R404A 300g
Circulation pump	Magnet pump 45W
Heater	850W (SUS316)
Cooling coil	Copper nickel plating treatment
External circulation nozzle	Rc3/8 with discharge port and return ports outer diameter Φ14 mm hose nipple
Safety device	Earth leakage breaker, overheating prevention device, refrigerator overload relay protecting circuit, delay timer for refrigerator protection, refrigerator pressure detection, float switch, bypass for circulating pump protection, self-diagnostic functions (sensor failure, heater disconnection, SSR short circuit, main relay contact short circuit, automatic overheating prevention)
Other functions	Operation monitor, drain cock, key lock, calibration offset, temperature output terminal, refrigerator pressure indicator, condenser filter
STANDARD
Tank dimension (WxDxH)	245 x 315 x 180 mm
External dimension (WxDxH) ^*2	380 x 565 x 725 mm
Water tank capacity	~13L
Power source	AC100V single phase 13.8A
Weight	~60kg
Included accessories	Drain hose 0.5m 1 piece overflow hose 0.5m 1 piece
List Price	$ 5,255

MODEL	CFA302
PERFORMANCE^*1
Circulation method	External closed system circulation
Temperature control range	-10~+60°C
Setting temperature range	-15 ~ +65°C
Temperature control accuracy	±0.1°C at 20°C JTM
Temperature fluctuation	±0.3°C at 20°C JIS
Temperature display unit	0.1°C
Cooling capacity	~ 370W (318Kcal/h) at liquid temperature 10°C
Ambient temp. range	5 ~ 35°C
Circulation capacity (50/60Hz) Maximum flow rate (pump capacity)	8.9/10.3L/min (15.0/17.0L/min)
Circulation capacity (50/60Hz) Maximum head (pump capacity)	6.6/9.0m (8.0/11.0m)
CONFIGURATION
Bath	Stainless steel SUS304
Temperature control system	PID control
Temperature sensor	Double sensor: Pt100Ω (for temperature control) K-thermocouple (for overheating prevention)
Temperature setting / display method	Digital setting
Refrigeration system/rated performance	Air cooling / 300W
Refrigerant	R404A 300g
Circulation pump	Magnet pump 45W
Heater	850W (SUS316)
Cooling coil	Copper nickel plating treatment
External circulation nozzle	Rc3/8 with discharge port and return ports outer diameter Φ14 mm hose nipple
Safety device	Earth leakage breaker, overheating prevention device, refrigerator overload relay protecting circuit, delay timer for refrigerator protection, refrigerator pressure detection, float switch, bypass for circulating pump protection, self-diagnostic functions (sensor failure, heater disconnection, SSR short circuit, main relay contact short circuit, automatic overheating prevention)
Other functions	Operation monitor, drain cock, key lock, calibration offset, temperature output terminal, refrigerator pressure indicator, condenser filter
STANDARD
Tank dimension (WxDxH)	245 x 315 x 180 mm
External dimension (WxDxH) ^*2	380 x 565 x 725 mm
Water tank capacity	~13L
Power source	AC100V single phase 13.8A
Weight	~60kg
Included accessories	Drain hose 0.5m 1 piece overflow hose 0.5m 1 piece
List Price	$ 5,255

*¹ Performance at the environmental temperature of -20°C ±5
*² Outer dimensions excludes protrusions.
