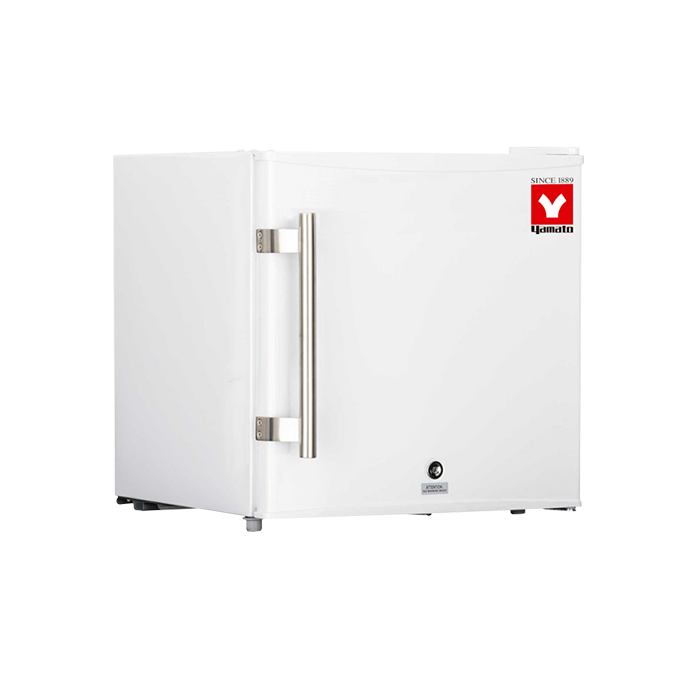

Yamato UCF Series Undercounter & Countertop Freezers

$ 1.00 1.0 USD $ 1.00

Not Available For Sale

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us
https://www.yamato-usa.com/web/image/product.template/145/image_1920?unique=fe871bd

Features


Security Door

CFC & HCFC free

Digital Display

Low Energy Consumption

High/Low Temperature Alarm

Small Footprint
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model UCF000 UCF001
 UCF101A UCF101B
Capacity 42L / 1.5 cu.ft. 48L / 1.7 cu.ft. 90L / 3.2 cu.ft. 90L / 3.2 cu.ft.
Temperature range -20°C / -4°F -15°C to -25°C / 5°F to -13°F -10°C to -25°C / +14°F to -13°F -20°C to -40°C / -4°F to -40°F
Temperature control Mechanical dial thermostat Digital display
Alarm system N/A Hi/Low temperature, door ajar, power failure, low battery sensor failure, USB failure
Data logging N/A Yes, adjustable intervals
Data download N/A N/A Yes, via USB, PDF format
Min / Max temperature N/A Yes, display and reset
Alarm relay N/A Yes, dry contacts
Back-up battery N/A N/A Yes, only powers alarm
Access port 3/8" diameter 1" diameter
Shelves 1 fixed shelf 2 adjustable shelves, base shelf
Insulation Urethane foam US EPA and SNAP approved
Refrigerant R600a R290
Compressor Hermetic compressor
Air circulation Gravity flow Direct cooling
Defrost Manual
Exterior construction Painted steel
Interior construction Steel Painted aluminum
Lockable door Yes, keyed
Leveling legs 4 2 front
Casters N/A N/A 2 rear
Internal dimensions
(WxDxH)		 14" x 13.25" x 14.5"
35 x 33 x 36 mm		 17.75” x 13.75” x 16”
45 x 34 x 40 cm		 19.5” x 15.75” x 22”
50 x 40 x 56 cm		 20” x 19.5” x 24.25”
50 x 49 x 61 cm
External dimensions
(WxDxH)		 18.5” x 19.5” x 19.5”
46 x 49 x 49 cm		 28.75” x 24” x 20.5”
74 x 61 x 53 cm		 23.75” x 21.5” x 32”
60 x 64 x 84 cm		 24” x 24” x 33”
61 x 61 x 83 cm
Weight ~ 50 lbs. 115 lbs. 165 lbs.
Voltage 115V, 60 Hz, 1 phase
Amperage Line | Running 15 Amp Dedicated | 1.1A 15 Amp Dedicated | 1.66A 15 Amp Dedicated | 4.19A
Supply plug NEMA 5-15
Certification N/A UL listed, C-UL, Energy Star UL listed
Optional accessories Chart recorder, cold safety gloves
List Price $ 1,700 $ 2,770 $ 2,975 $ 4,350


Click on the links below to download the associated PDFs.

UCF Series Undercounter & Countertop Freezers

ULT Freezer and Refrigerator Buyer’s Guide

To download Operational Manual, visit our Technical Support Center
