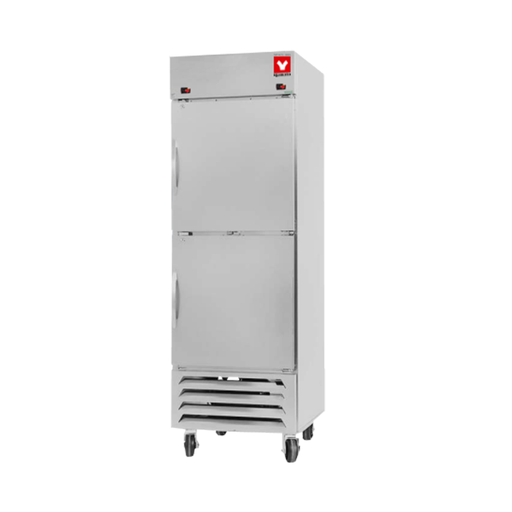

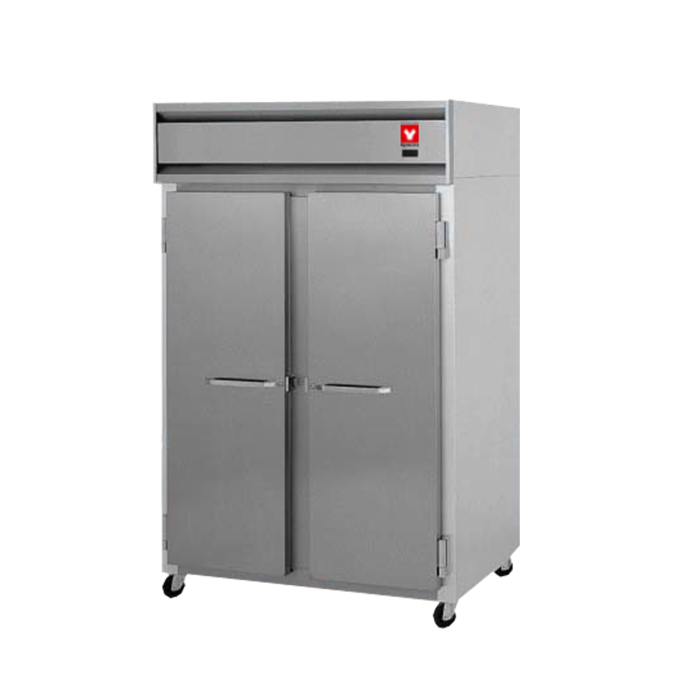

Yamato RFC Series Freezer / Refrigerator Combination

https://www.yamato-usa.com/web/image/product.template/102/image_1920?unique=43fe9c9

RFC Series is a complete line of laboratory and pharmacy refrigerator / freezer combination that provides the reliability and security essential for the protection of sensitive lab samples in the 0°C to -30°C range. These models offer many storage capabilities such as shelves and racks to store samples and other product with easy access to both freezer and refrigerator temperature ranges. Ideal for the demanding requirements of daily lab applications.

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Yamato RFC Series Freezer / Refrigerator Combination?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

RFC Series: Temp. Range up to -25ºC / 2ºC to 8ºC

Operation and features

  • Digital temperature display
  • High/Low alarm
  • Two solid locking doors
  • Auto or manual defrost available
  • Locking casters
  • Four shelves
  • Adjustable shelves
  • CFC-free refrigerant and insulation
  • UL listed
  • Stainless exterior / interior available
  • Optional chart recorder

Primary Uses

  • Laboratories
  • Pharmacies
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model RFC501 RFC1301
 RFC2001
Capacity 515L / 18.2 cu.ft. 1359L / 48 cu.ft. 1982L / 70 cu.ft.
Refrigerator capacity 9.1 cu.ft. 24 cu.ft. 46.6 cu.ft.
Freezer capacity 9.1 cu.ft. 24 cu.ft. 24 cu.ft.
Door Two Solid, locking Three Solid, locking
Temperature range (Refrigerator)
2°C to 8°C /
36°F to 46°F
(Freezer)
0°C to -25°C /
+32°F to -13°F		 (Refrigerator)
2°C to 8°C /
36°F to 46°F
(Freezer)
0°C to -25°C /
+32°F to -13°F		 (Refrigerator)
4ºC / 39ºF
(Freezer)
-20ºC / -4ºF
Temperature control Two - Digital display
Temperature alarm Hi/Low temperature alarm with audible and visual alarm, Alarm relay dry contacts, Min/Max Memory (for RFC1301 and RFC2001)
Shelves 2 Per Compartment /
Epoxy Coated		 3 Per Compartment /
Epoxy Coated		 3 Per Compartment /
Epoxy Coated
Legs Four locking
Insulation Polyurethane
Compressor 1/4 hp (R), 1/3 hp (F) 1/4 hp (R), 1/2 hp (F) 1/3 hp (R), 1/2 hp (F)
Evaporator Fin and tube
Refrigerator defrost Automatic
Freezer defrost Automatic
Interior / Exterior finish White coated steel Stainless steel
Interior dimension of Refrigerator (WxDxH) 28 x 28 x 20” 22 x 28 x 60” 48 x 28 x 60”
Interior dimension of Freezer (WxDxH) 28 x 28 x 20” 22 x 28 x 60” 28 x 28 x 20”
External dimensions (WxDxH) 27.5” x 34” x 81.5”
70 x 86 x 207 cm		 52 x 34.75 x 81.5”
132 x 88 x 207” cm		 78 x 34.75 x 81.5”
198 x 88 x 207 cm
Weight 550 lbs. 625 lbs. 950 lbs.
Voltage 115V, 60 Hz, 1 phase
Running amps 4.5 (R), 7.5 (F) 5.7 (R), 6.0 (F) 9.4 (R), 10.6 (F)
Supply plug 5-15P NEMA (1 plug per chamber) UL listed
Optional accessories Chart recorder, Leg seismic restraints, Wall seismic restraints
List Price $ 20,635 $ 26,010 $ 29,770


Click on the links below to download the associated PDFs.

RFC Series Laboratory Freezer / Refrigerator Combination

ULT Freezer and Refrigerator Buyer’s Guide

To download Operational Manual, visit our Technical Support Center
