Yamato LM Series 1000 RPM Flask Mixers

LM Series compact design laboratory flask mixer features integrated drive and stirring seal allowing direct installation of flask and stirring in a vacuum and sealed state. No time-consuming shaft alignment required. Its strong stirring power is perfect for samples of high volume and high viscosity.

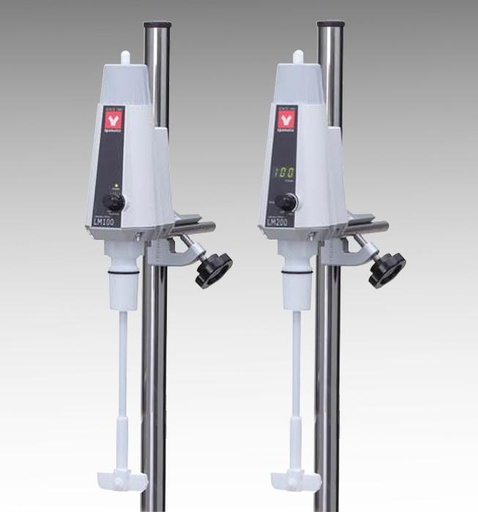

LM100/110 is designed with manual type rotation speed while LM200/210 is equipped with digital indicator.

Model
- LM100
- LM110
- LM200
- LM210

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Interested In Our Yamato LM Series 1000 RPM Flask Mixers?

Find out if this model is suitable for your application.

Send me a quote

LM100/110/200/210

Features

Wide range rotation speed of 50-1000 rpm
Maintenance free and superior DC brushless motor
Belt drive transmission minimizes noise and vibration
Capable of vacuuming up to 399.9Pa without impairing rotation efficiency
Directly attachable to a three-neck flask 24/40, 29/42 optional
Variety of stirring shafts and blades available to handle small to large volume samples
Fluorine rubber seal as standard for shaft seal, superior chemical resistant Teflon®rubber seal available as option
At the flask joint, FKM o-ring is used as standard, superior chemical resistant Kalrez® o-ring available as option
Equipped with 24/40 rotary joint, 29/42 optional
Capable of AC100-240V by changing power cord

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	LM100	LM110	LM200	LM210
Operating temp. range	5°C~35°C
Speed range *¹	50~1000 rpm
Max. torque	0.1N•m
Max. ultimate vacuum	< 399.9Pa
Exterior	PBT /ADC12 (Surface: branded / painted)
Motor	DC brushless motor 30W
Speed control	Feedback control
Display	---		3 digit×10 rpm Digital
Operation lamp	Green LED		Rotation speed display
Adaptable flask size	50~5000 ml
Joint size	TS 24/40
Chuck	ø8mm (φ7.9~7.95)
Sealing material	PTFE (rotary joint) / FKM (oil seal, o-ring)
Safety device	Overload protection function*², coupling cover (hair entanglement prevention structure), slow start function
External dimension	W69 × D108 × H222 mm
Power source 50/60Hz	Single phase AC100V~AC120V 50/60Hz 1A	Single phase AC200V~AC220V 50/60Hz 1A	Single phase AC100V~AC120V 50/60Hz 1A	Single phase AC200V~AC220V 50/60Hz 1A
Power cord	A type 3P (AC115V 50/60Hz)	O type 3P (AC220V 50/60Hz)	A type 3P (AC115V 50/60Hz)	O type 3P (AC220V 50/60Hz)
Weight	700g (main body only)
Included accessories	Hexagon socket head cap screw & wrench, AC adapter, 3m power cord, coupling cover, handle (arbor), flask clip
Operational accessories*³	Stirring shaft (stainless steel or glass), propellers (different types and sizes), stand and rod
List Price	$ 655 (main body only)	$ 655 (main body only)	$ 770 (main body only)	$ 770 (main body only)
Recommended set pricing	$ 1,260	$1,260	$ 1,375	$1,375
Recommended set composition	Main body, stand, PTFE stirring bar with propeller L450mm x φ50mm, burette clamp φ9.5~φ29mm, double opening clamp 3~55mm

*1 Max. revolutions differ depending on the combination of oil seal + stirring shaft.
50 – 1000rpm: FKM oil seal + PTFE stirring shaft / PTFE oil seal + glass or SUS stirring shaft
50 – 300rpm: FKM oil seal + glass or SUS stirring shaft / PTFE oil seal + PTFE stirring shaft
*2 When load exceeding maximum torque is applied, current limit circuit automatically controls the current to protect the motor
*3 Sold separately
