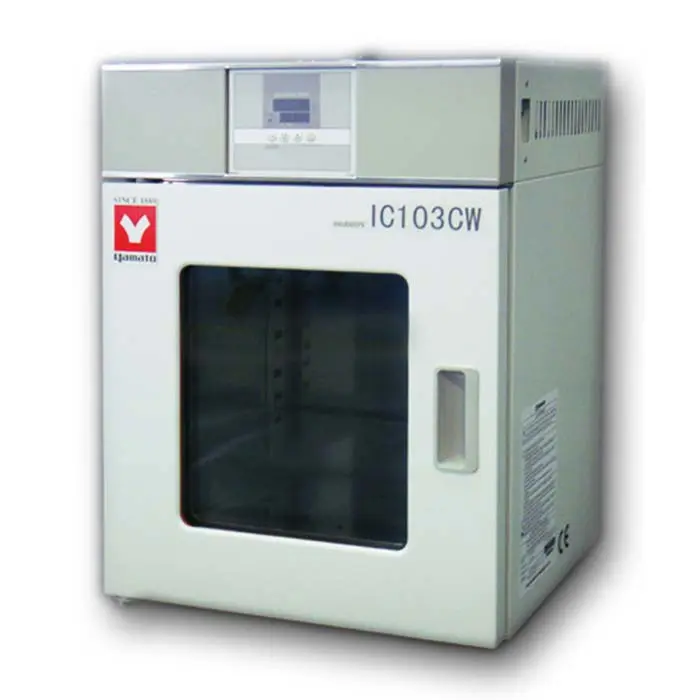

Yamato IC Series Natural Convection Laboratory Incubator

Economical general purpose natural convection incubators

$ 1.00 1.0 USD $ 1.00

Not Available For Sale

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us
https://www.yamato-usa.com/web/image/product.template/70/image_1920?unique=5f2e9eb

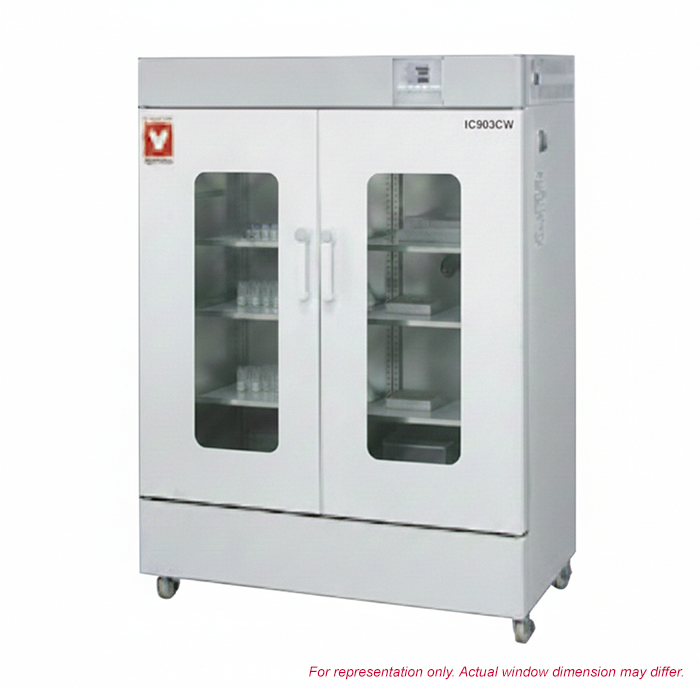

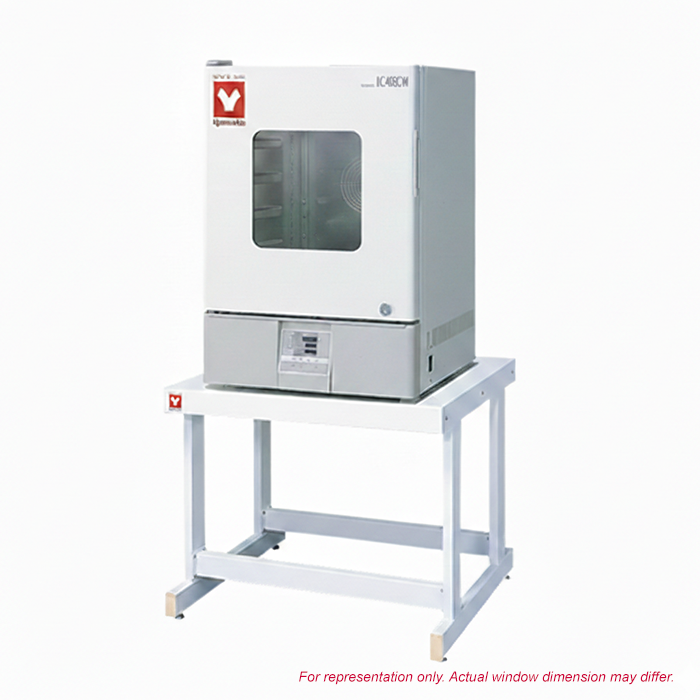

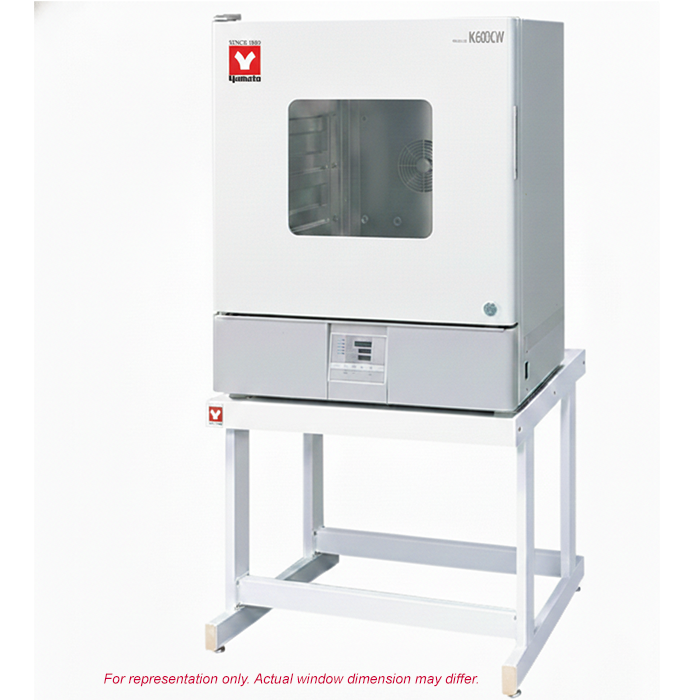

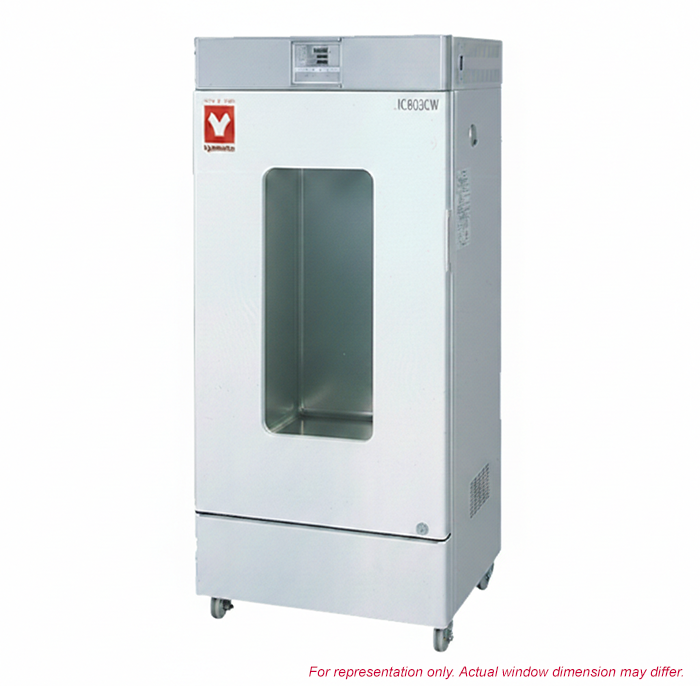

IC103C/113C/103CW/113CW/403CW/413CW/603CW/613CW/803CW/813CW/903CW/913CW


Operation and functions

  • Space saving
  • All lab incubator models come with observation window (W) for improved visibility or solid door (IC103C/113C)
  • Dual door system permits contents to be viewed easily without disrupting atmosphere of the lab incubator (except IC-100 series)
  • Control panel of IC103C/113C/103CW/113CW located at a higher position for easy access

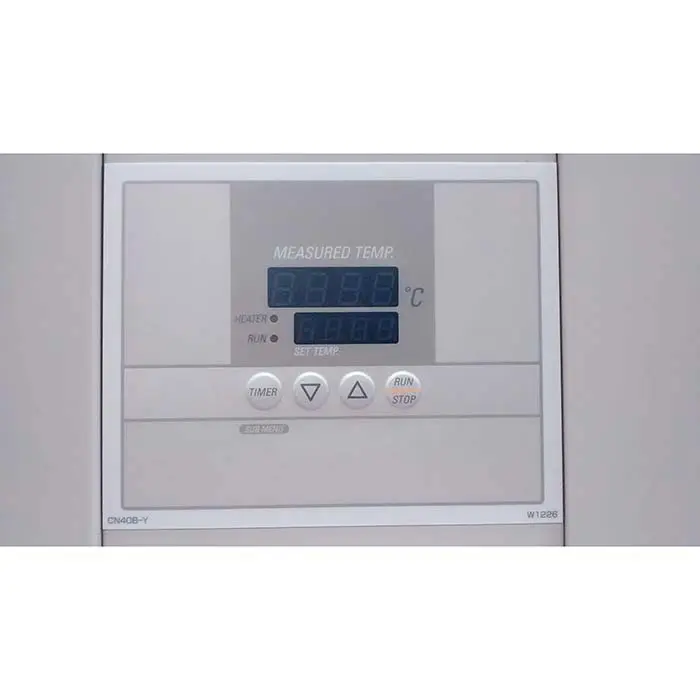

  • Easy to use digital setting display and timer
  • Air jacket technology ensures even and efficient heat distribution throughout the lab incubator chamber
  • Standard equipped with various functions such as self-diagnostic, calibration off-set, overheat prevention and key lock
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model IC103C / CW
IC113C / CW		 IC403CW
IC413CW		 IC603CW
IC613CW		 IC803CW
IC813CW		 IC903CW
IC913CW
System Natural convection
Operating temperature range Room temp. +5~80°C
Temp. control accuracy ±0.5°C (at 37°C)
Temperature distribution accuracy ±1.0°C
Interior material Stainless steel
Exterior material Cold rolled steel plate with melamine resin baking finish
Heat insulator Glass fiber
Heater Stainless steel heating pipe Iron-chrome wire heater
0.2kW 0.3kW 0.4kW 0.7kW 2.2kW
Temperature controller PID control by microprocessor
Temperature setting system Operation menu key and digital setting by ▲/▼ keys, digital display
Temperature display Measurement temperature: Digital display by 4 digit green LED
Setting temperature: Digital display by 4 digit red LED
Timer 1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function)
Operation functions Fixed temperature, Auto start, Auto stop, Quick Auto stop
Additional functions Calibration off-set, Key-lock, Power outage compensation
Safety device Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention
Heater control circuit SSR drive system
Sensor K-thermocouple
Internal dimensions (WxDxH) 350 x 300 x 360 mm 450 × 480 × 450 mm 600 x 530 x 500 mm 600 × 530 × 1000 mm 1070 x 530 x 1000 mm
External dimensions (WxDxH) 430 x 397 x 606 mm 560 × 606 × 820 mm 710 x 656 x 870 mm 710 × 656 × 1619 mm 1180 x 656 x 1619 mm
Internal capacity 37L 97L 159L 318L 567L
Inner door None Reinforced glass door x 1 Reinforced glass door x 2
Window size 300 x 270 717 x 267
Window thickness t5 (5mm thick glass)
Shelf load capacity ~15 kg/pc.
Shelf rest step number 8 steps 9 steps 12 steps 29 steps 29 steps x 2
Power supply (50/60 Hz) AC115V 1.8A
with plug
AC220V 1A
no plug, round terminal		 AC115V 4.5A
with plug
AC220V 2A
no plug, round terminal		 AC115V 6A
with plug
AC220V 2.5A
no plug, round terminal		 AC115V 10A
with plug
AC220V 4.5A
no plug, round terminal		 AC115V 13A
with plug
AC220V 6.5A
no plug, round terminal
Weight ~17 kg ~45 kg ~65 kg ~102 kg ~166kg
Included accessories:
Shelf / shelf brackets		 Stainless steel
2 pcs. / 4pcs. 4 pcs. / 8 pcs. 8 pcs. / 16 pcs.

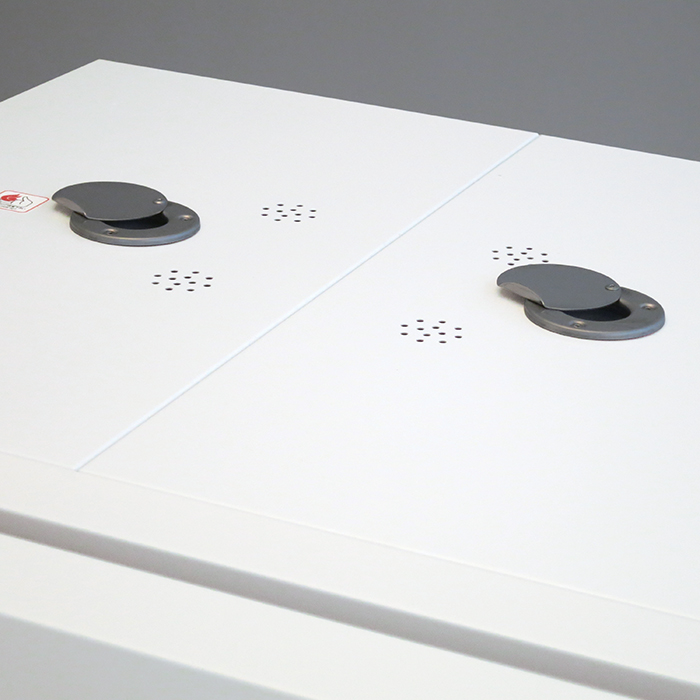

Optional accessories Stand, Stacking kit, Additional shelf, Cable hole (25/50mm or 30/50mm), Temp. output terminal, Time-up output terminal for alarm device
List Price $ 950
$ 985 (with window)		 $ 1,335
$ 1,415 (with window)
$ 1,650 (with communication port)		 $ 1,850
$ 2,065 (with window)
$ 2,180 (with communication port)		 $ 4,045
$ 4,545 (with window)
$ 4,345 (with communication port)
 $ 9,820
$ 10,820 (with window)
$ 10,155 (with communication port)


Click on the links below to download the associated PDFs.

Incubator Overview

IC Series Catalog

Lab Incubator Buyer’s Guide

To download Operational Manual, visit our Technical Support Center
