Yamato IC Series Natural Convection Laboratory Incubator

https://www.yamato-usa.com/web/image/product.template/70/image_1920?unique=43fe9c9

Economical general purpose natural convection incubators

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Yamato IC Series Natural Convection Laboratory Incubator?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

IC103C/113C/403C/413C/603C/613C/803C/813C/903C/913C


Operation and functions

  • Space saving
  • All lab incubator models come with either an observation window (W) for improved visibility or solid door
  • Dual door system permits contents to be viewed easily without disrupting atmosphere of the lab incubator (except IC-100 series)
  • Control panel of IC103C/113C located at a higher position for easy access

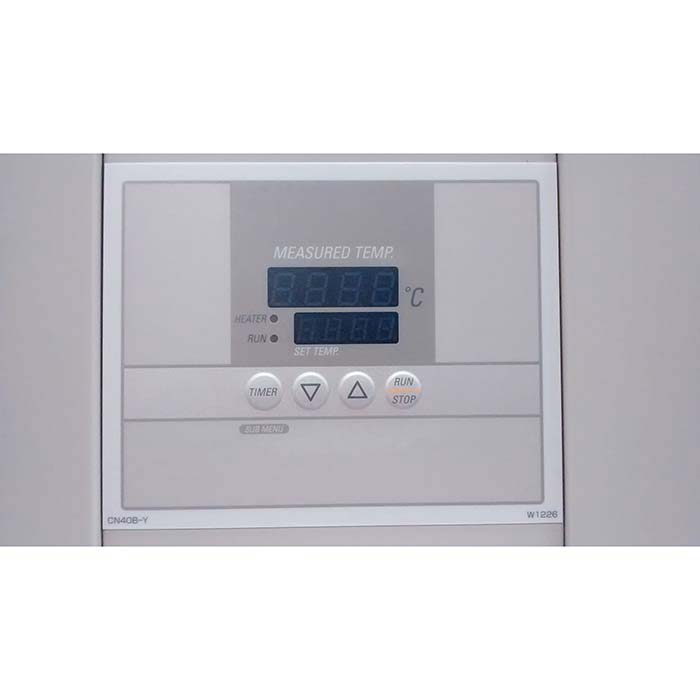

  • Easy to use digital setting display and timer
  • Air jacket technology ensures even and efficient heat distribution throughout the lab incubator chamber
  • Standard equipped with various functions such as self-diagnostic, calibration off-set, overheat prevention and key lock
  • Models 400 to 900 have an option for communication port (R)
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model IC103C
IC113C		 IC403C
IC413C		 IC603C
IC613C		 IC803C
IC813C		 IC903C
IC913C
System Natural convection
Operating temp. range Room temp. +5~80°C
Temp. control accuracy ±0.5°C (at 37°C)
Temp. distribution accuracy ±1.0°C
Interior Stainless steel
Exterior Cold rolled steel plate with melamine resin baking finish
Heat insulator Glass fiber
Heater Stainless steel heating pipe Iron-chrome wire heater
0.2kW 0.3kW 0.4kW 0.7kW 2.2kW
Temperature controller PID control by microprocessor
Temperature setting system Operation menu key and digital setting by ▲▼ keys, digital display
Temperature display Measurement temperature: Digital display by 4 digit green LED / Setting temperature: Digital display by 4 digit red LED
Timer 1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function)
Operation function Fixed temperature, Auto start, Auto stop, Quick Auto stop
Additional function Calibration off-set, Key-lock, Power outage compensation
Safety device Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention
Heater control circuit SSR drive system
Sensor K-thermocouple
Internal dimensions WxDxH 350 x 300 x 360 mm 450 × 480 × 450 mm 600 x 530 x 500 mm 600 × 530 × 1000 mm 1070 x 530 x 1000 mm
External dimensions WxDxH 430 x 397 x 606 mm 560 × 606 × 820 mm 710 x 656 x 870 mm 710 × 656 × 1619 mm 1180 x 656 x 1619 mm
Internal capacity 37L 97L 159L 318L 567L
Inner door None Reinforced glass door x 1 Reinforced glass door x 2
Shelf load capacity ~15 kg/pc.
Shelf rest step number 8 steps 9 steps 12 steps 29 steps 29 steps x 2
Power supply (50/60 Hz) AC115V 1.8A (with plug)
AC220V 1A (no plug, round terminal)		 AC115V 4.5A(with plug)
AC220V 2A (no plug, round terminal)		 AC115V 6A (with plug)
AC220V 2.5A (no plug, round terminal)		 AC115V 10A (with plug)
AC220V 4.5A (no plug, round terminal)		 AC115V 13A (with plug)
AC220V 6.5A (no plug, round terminal)
Weight ~17 kg ~45 kg ~65 kg ~102 kg ~166kg
Included accessories Shelf and brackets (stainless steel)
2 pcs. / 4pcs. 4 pcs. / 8pcs. 8 pcs. / 16pcs.
Optional accessories Stand, Stacking kit, Additional shelf, Cable hole (25/50mm or 30/50mm), Temp. output terminal, Time-up output terminal for alarm device
List Price $ 950
$ 985 (with window)		 $ 1,335
$ 1,415 (with window)
$ 1,650 (with communication port)		 $ 1,850
$ 2,065 (with window)
$ 2,180 (with communication port)		 $ 4,045
$ 4,545 (with window)
$ 4,345 (with communication port)
 $ 9,820
$ 10,820 (with window)
$ 10,155 (with communication port)


Click on the links below to download the associated PDFs.

Incubator Overview

IC Series Catalog

IC Series Poster

Lab Incubator Buyer’s Guide

To download Operational Manual, visit our Technical Support Center
