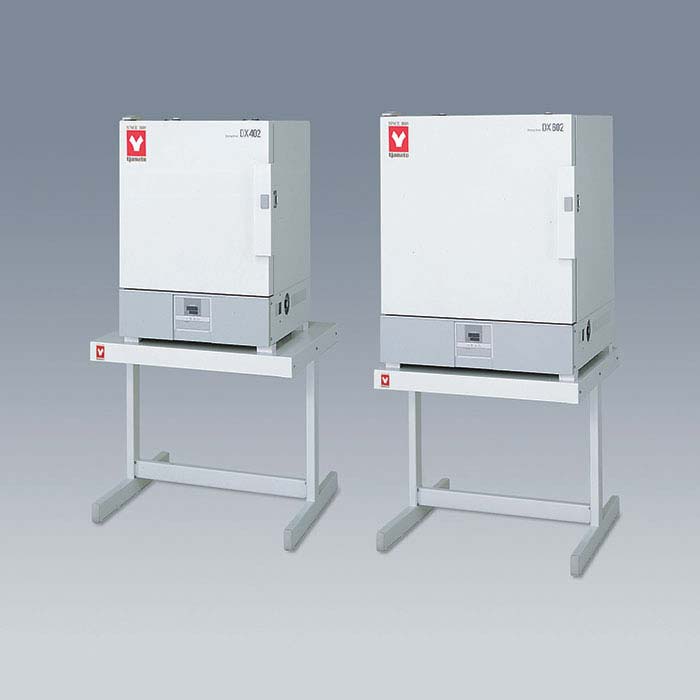

Yamato DX Series Economical Natural Convection Ovens

Standard type natural convection constant temperature drying ovens with extensive features and simple operation

$ 1.00 1.0 USD $ 1.00

Not Available For Sale

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us
https://www.yamato-usa.com/web/image/product.template/50/image_1920?unique=fe871bd

DX302C/312C/402C/412C/602C/612C


Performance and functions

  • Economical and cost saving
  • Easy to use and maintain
  • Excellent temperature accuracy
  • Digital PID controller for easy operation with options for Fixed setting, Auto Start, Quick Auto Stop and Auto Stop
  • Increased safety and self-diagnostic functions
  • Calibration off-set function

Safety features

  • Temp sensor error, Temp input circuit error, Auto overheat prevention, measured temp error, Circuit breaker with over current protection.

Your choice of laboratory oven can have a big effect on your daily lab routines. Download Yamato’s Complete Guide to Buying the Perfect Lab Oven guide and discover how your everyday applications and facility requirements factor into choosing an oven that can provide the best results for your samples.

40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model DX302C
DX312C		 DX402C
DX412C		 DX602C
DX612C
Circulation method Natural convection
Operating temperature range Room temp. +5°C to 300°C Room temp. +5°C to 280°C
Temperature control accuracy ±1°C (at 300°C)
Temperature distribution accuracy ±10°C (at 300°C) ±10°C (at 280°C)
Maximum temperature reaching time ~45 min
(Room temp. to 300°C)		 ~60 min
(Room temp. to 300°C)		 ~80 min
(Room temp. to 280°C)
Interior material Stainless steel
Exterior material Electro-galvanized steel sheet with melamine resin baking finish
Heat insulating material Glass wool
Heater Iron-chrome wire heater 0.9 kW Iron-chrome wire heater 1.36 kW Iron-chrome wire heater 1.36 kW
Exhaust port 33 mm I.D. x 2 pcs. (on top)
Temp. controller PID control by microprocessor
Temp. setting method Digital setting by ▲▼ key
Temp. display method Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.
Operation function Fixed temperature, Quick auto stop, Auto stop, Auto start
Additional function Calibration off-set, Power failure compensation function, Key lock function
Heater circuit control SSR control
Sensor K-thermocouple
Safety device Self diagnostic functions (Temp. Sensor abnormal, Abnormal memory, Input temp. abnormal, Measured temp. abnormal, Automatic overheat prevention), Key lock function, Hydraulic independent overheat prevention device, Electric leakage breaker with over current protection
Internal dimensions W×D×H 300x310x300mm 450x410x400mm 600x510x500mm
External dimensions W×D×H 400x440x630mm 550x540x730mm 700x640x830mm
Internal capacity 28L 74L 153L
Shelf plate with standard load 15kg/piece 15kg/piece 15kg/piece
Shelf rest step number / pitch 6 steps / 35mm 9 steps / 35mm 12 steps / 35mm
Power source 50/60Hz AC115V 9.5A (with plug)
AC220V 4.3A (no plug, round terminal)		 AC115V 14A (with plug)
AC220V 6.4A (no plug, round terminal)		 AC115V 14A (with plug)
AC220V 6.4A (no plug, round terminal)
Weight ~23kg ~38kg ~56kg
Included Accessories Stainless steel punching metal shelf plate 2pcs. / Shelf bracket 4pcs.
List Price $ 1,865 $ 2,420 $ 3,230
