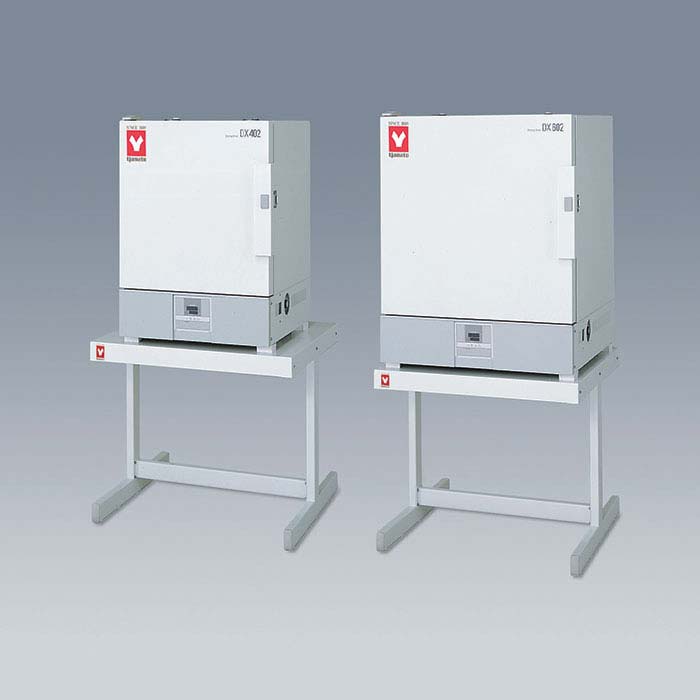

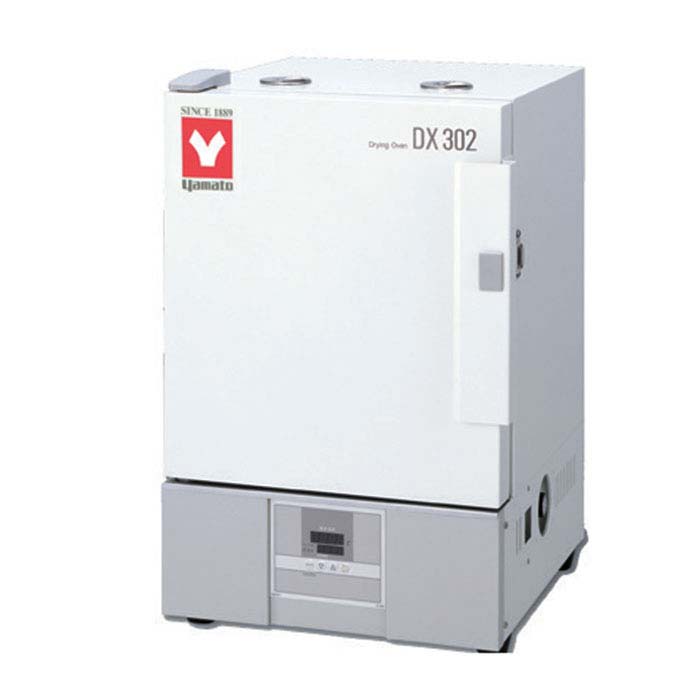

Yamato DX Series Economical Natural Convection Ovens

Yamato DX Series Economical Natural Convection Ovens

Standard type natural convection constant temperature drying ovens with extensive features and simple operation

Model
- DX302C
- DX312C
- DX402C
- DX412C
- DX602C
- DX612C

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Interested In Our Yamato DX Series Economical Natural Convection Ovens?

Find out if this model is suitable for your application.

Send me a quote

DX302C/312C/402C/412C/602C/612C

Performance and functions

Economical and cost saving
Easy to use and maintain
Excellent temperature accuracy
Digital PID controller for easy operation with options for Fixed setting, Auto Start, Quick Auto Stop and Auto Stop
Increased safety and self-diagnostic functions
Calibration off-set function

Safety features

Temp sensor error, Temp input circuit error, Auto overheat prevention, measured temp error, Circuit breaker with over current protection.

Your choice of laboratory oven can have a big effect on your daily lab routines. Download Yamato’s Complete Guide to Buying the Perfect Lab Oven guide and discover how your everyday applications and facility requirements factor into choosing an oven that can provide the best results for your samples.

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DX302C DX312C	DX402C DX412C	DX602C DX612C
Circulation method	Natural convection
Operating temperature range	Room temp. +5°C to 300°C	Room temp. +5°C to 280°C
Temperature control accuracy	±1°C (at 300°C)
Temperature distribution accuracy	±10°C (at 300°C)	±10°C (at 280°C)
Maximum temperature reaching time	~45 min (Room temp. to 300°C)	~60 min (Room temp. to 300°C)	~80 min (Room temp. to 280°C)

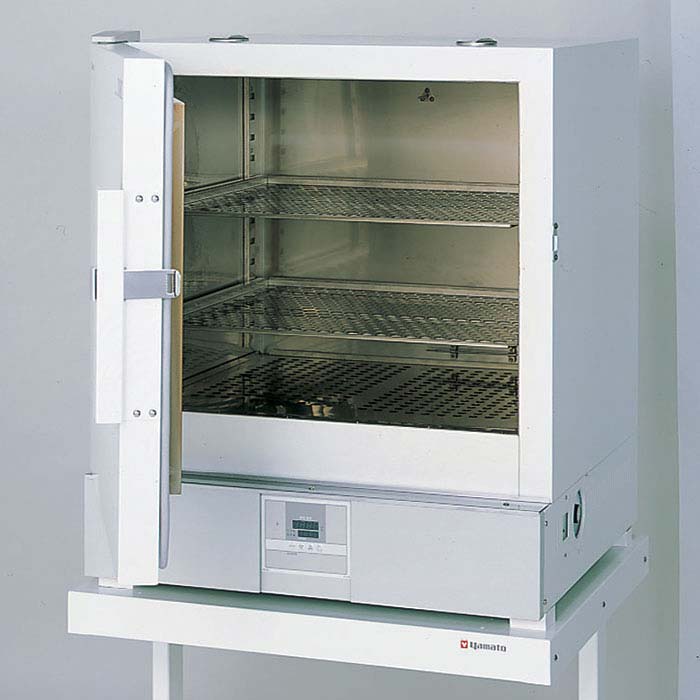

Interior material	Stainless steel
Exterior material	Electro-galvanized steel sheet with melamine resin baking finish
Heat insulating material	Glass wool
Heater	Iron-chrome wire heater 0.9 kW	Iron-chrome wire heater 1.36 kW	Iron-chrome wire heater 1.36 kW
Exhaust port	33 mm I.D. x 2 pcs. (on top)
Temp. controller	PID control by microprocessor
Temp. setting method	Digital setting by ▲▼ key
Temp. display method	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.
Operation function	Fixed temperature, Quick auto stop, Auto stop, Auto start
Additional function	Calibration off-set, Power failure compensation function, Key lock function
Heater circuit control	SSR control
Sensor	K-thermocouple
Safety device	Self diagnostic functions (Temp. Sensor abnormal, Abnormal memory, Input temp. abnormal, Measured temp. abnormal, Automatic overheat prevention), Key lock function, Hydraulic independent overheat prevention device, Electric leakage breaker with over current protection
Internal dimensions W×D×H	300x310x300mm	450x410x400mm	600x510x500mm
External dimensions W×D×H	400x440x630mm	550x540x730mm	700x640x830mm
Internal capacity	28L	74L	153L
Shelf plate with standard load	15kg/piece	15kg/piece	15kg/piece
Shelf rest step number / pitch	6 steps / 35mm	9 steps / 35mm	12 steps / 35mm
Power source 50/60Hz	AC115V 9.5A (with plug) AC220V 4.3A (no plug, round terminal)	AC115V 14A (with plug) AC220V 6.4A (no plug, round terminal)	AC115V 14A (with plug) AC220V 6.4A (no plug, round terminal)
Weight	~23kg	~38kg	~56kg
Included Accessories	Stainless steel punching metal shelf plate 2pcs. / Shelf bracket 4pcs.
List Price	$ 1,865	$ 2,420	$ 3,230

Model	DX302C DX312C	DX402C DX412C	DX602C DX612C
Circulation method	Natural convection
Operating temperature range	Room temp. +5°C to 300°C		Room temp. +5°C to 280°C
Temperature control accuracy	±1°C (at 300°C)
Temperature distribution accuracy	±10°C (at 300°C)		±10°C (at 280°C)
Maximum temperature reaching time	~45 min (Room temp. to 300°C)	~60 min (Room temp. to 300°C)	~80 min (Room temp. to 280°C)
Interior material	Stainless steel
Exterior material	Electro-galvanized steel sheet with melamine resin baking finish
Heat insulating material	Glass wool
Heater	Iron-chrome wire heater 0.9 kW	Iron-chrome wire heater 1.36 kW	Iron-chrome wire heater 1.36 kW
Exhaust port	33 mm I.D. x 2 pcs. (on top)
Temp. controller	PID control by microprocessor
Temp. setting method	Digital setting by ▲▼ key
Temp. display method	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.
Operation function	Fixed temperature, Quick auto stop, Auto stop, Auto start
Additional function	Calibration off-set, Power failure compensation function, Key lock function
Heater circuit control	SSR control
Sensor	K-thermocouple
Safety device	Self diagnostic functions (Temp. Sensor abnormal, Abnormal memory, Input temp. abnormal, Measured temp. abnormal, Automatic overheat prevention), Key lock function, Hydraulic independent overheat prevention device, Electric leakage breaker with over current protection
Internal dimensions W×D×H	300x310x300mm	450x410x400mm	600x510x500mm
External dimensions W×D×H	400x440x630mm	550x540x730mm	700x640x830mm
Internal capacity	28L	74L	153L
Shelf plate with standard load	15kg/piece	15kg/piece	15kg/piece
Shelf rest step number / pitch	6 steps / 35mm	9 steps / 35mm	12 steps / 35mm
Power source 50/60Hz	AC115V 9.5A (with plug) AC220V 4.3A (no plug, round terminal)	AC115V 14A (with plug) AC220V 6.4A (no plug, round terminal)	AC115V 14A (with plug) AC220V 6.4A (no plug, round terminal)
Weight	~23kg	~38kg	~56kg
Included Accessories	Stainless steel punching metal shelf plate 2pcs. / Shelf bracket 4pcs.
List Price	$ 1,865	$ 2,420	$ 3,230
