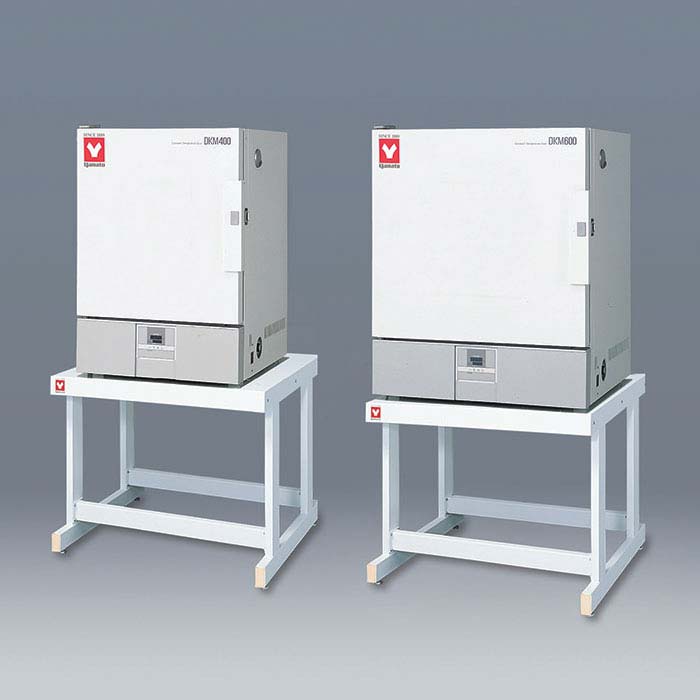

Yamato DKM Series Basic & Economical Forced Convection Ovens

Yamato DKM Series Basic & Economical Forced Convection Ovens

Standard forced convection constant temperature ovens with simple operation functions

Model
- DKM300C
- DKM310C
- DKM400C
- DKM410C
- DKM600C
- DKM610C

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Interested In Our Yamato DKM Series Basic & Economical Forced Convection Ovens?

Find out if this model is suitable for your application.

Send me a quote

DKM300C/310C/400C/410C/600C/610C

Performance and functions

Fixed temperature, Quick Auto stop, Auto stop, and Auto start operating modes with easy control capabilities
Settings can be made digitally with the dedicated operation menu keys or the ▲/▼ keys
Auto recovery after power failure, calibration off-set and key-lock are possible through the auxiliary functions

Safety features

Self-diagnostic functions, Auto overheat prevention, Independent overheat prevention

Your choice of laboratory oven can have a big effect on your daily lab routines. Download Yamato’s Complete Guide To Buying The Perfect Lab Oven guide and discover how your everyday applications and facility requirements factor into choosing an oven that can provide the best results for your samples.

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

MODEL	DKM300C DKM310C	DKM400C DKM410C	DKM600C DKM610C

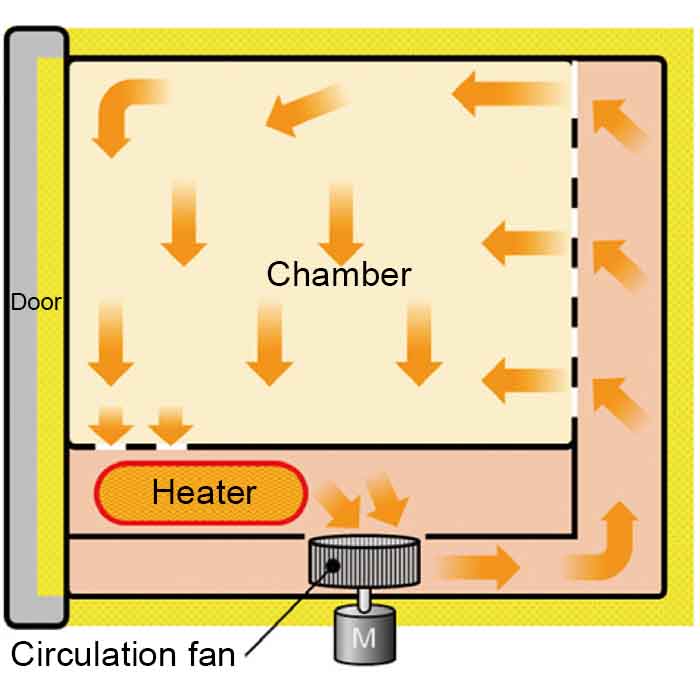

Circulation Method	Forced air circulation
Operating Temperature Range	Room temp. +10~260°C
Temp. Control Accuracy	±1°C (at 210°C)
Temp. Distribution Accuracy	±2.5°C (at 210°C)
Max. Temp. Reaching Time	~90min (at room temp. +10°C~260°C)
Interior Material	Stainless Steel
Exterior Material	Cold rolled steel plate with melamine resin baking finish
Heat Insulating Material	Glass wool
Heater	SUS pipe heater / 0.8kW	SUS pipe heater / 1.2kW	SUS pipe heater / 1.34kW
Fan Type / Motor	Scirocco fan / Condenser type motor 10W

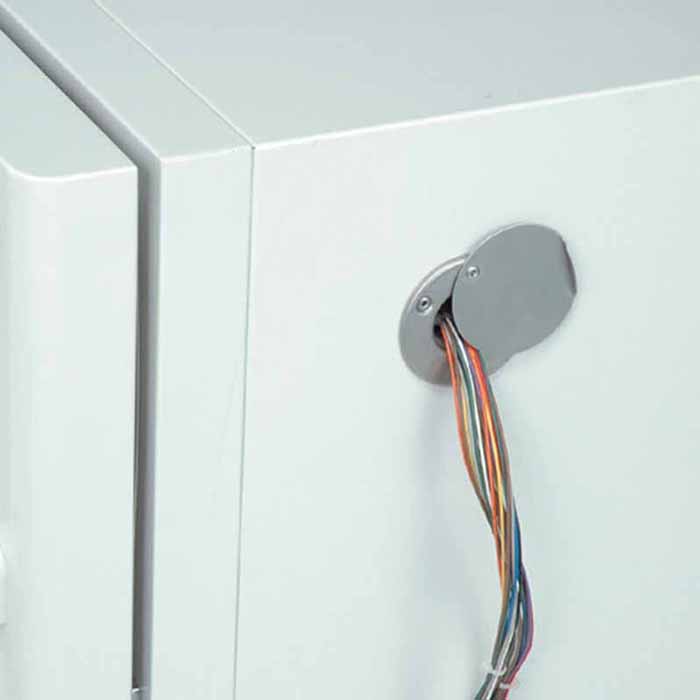

Cable Port	30 mm l.D.×1 pc. (right side)

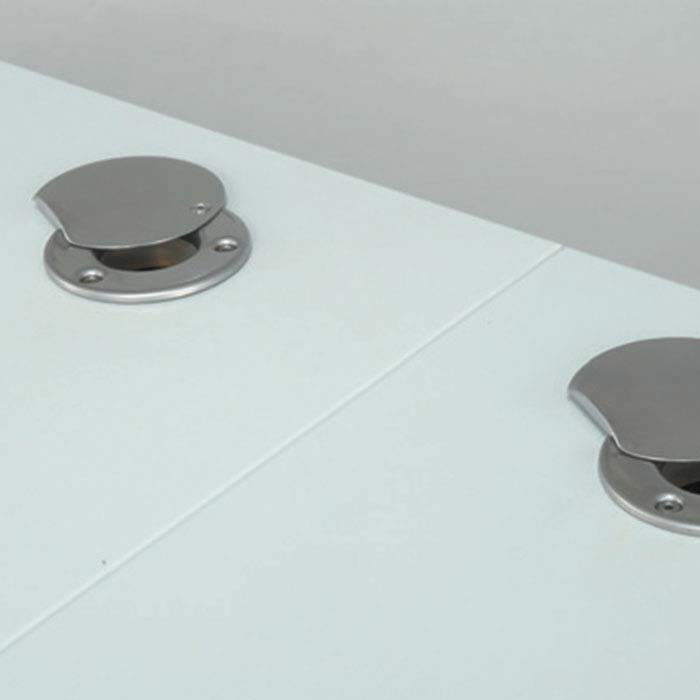

Exhaust Port	30 mm l.D.×2 pcs. (the top)
Temp. Controller	PlD control by microprocessor
Temp. Setting Method	Operation menu key and digital setting by ▲/▼ key

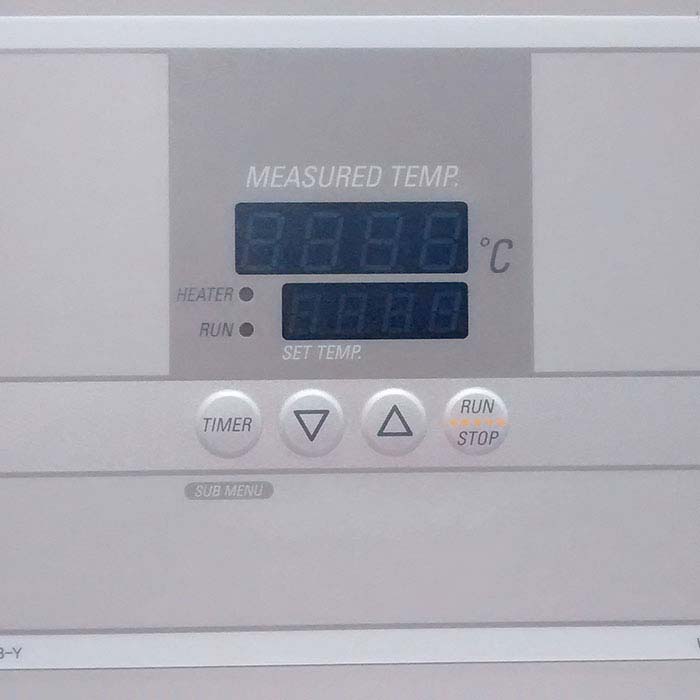

Temp Display Method	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. (with time wait function)
Operation Functions	Fixed temperature operation, Quick Auto-stop, Auto start, Auto stop
Additional Functions	Calibration off-set function, Key lock, Uninterruptible power for memory
Heater Circuit Control	SSR control
Sensor	K-thermocouple
Safety Device	Self diagnostic functions (Sensor trouble detection, Memory error, Measured temperature lower limit error, Measured temperature error), Auto overheat prevention, Independent overheat prevention.
Internal Dimensions W×D×H	300×300×300mm	450×450×450mm	600×500×500mm
External Dimensions W×D×H	410×451×670mm	560×601×820mm	710×651×870mm
Internal Capacity	27L	90L	150L
Shelf Plate With Standard Load	15kg/piece
Shelf Rest Step Number	6 steps	9 steps	12 steps
Shelf Rest Pitch	35mm
Power Source 50/60Hz	AC115V 7.5A (with plug) AC220V 4.5A (no plug, round terminal)	AC115V 11A (with plug) AC220V 6.5A (no plug, round terminal)	AC115V 12A (with plug) AC220V 7A (no plug, round terminal)
Weight	~35kg	~50kg	~65kg
Included Accessories	Shelf plate and brackets
Shelf Plate / Bracket	Stainless steel 2 pcs. / 4 pcs.
List Price	$ 2,040	$ 2,395	$ 2,880

MODEL	DKM300C DKM310C	DKM400C DKM410C	DKM600C DKM610C
Circulation Method	Forced air circulation
Operating Temperature Range	Room temp. +10~260°C
Temp. Control Accuracy	±1°C (at 210°C)
Temp. Distribution Accuracy	±2.5°C (at 210°C)
Max. Temp. Reaching Time	~90min (at room temp. +10°C~260°C)
Interior Material	Stainless Steel
Exterior Material	Cold rolled steel plate with melamine resin baking finish
Heat Insulating Material	Glass wool
Heater	SUS pipe heater / 0.8kW	SUS pipe heater / 1.2kW	SUS pipe heater / 1.34kW
Fan Type / Motor	Scirocco fan / Condenser type motor 10W
Cable Port	30 mm l.D.×1 pc. (right side)
Exhaust Port	30 mm l.D.×2 pcs. (the top)
Temp. Controller	PlD control by microprocessor
Temp. Setting Method	Operation menu key and digital setting by ▲/▼ key
Temp Display Method	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. (with time wait function)
Operation Functions	Fixed temperature operation, Quick Auto-stop, Auto start, Auto stop
Additional Functions	Calibration off-set function, Key lock, Uninterruptible power for memory
Heater Circuit Control	SSR control
Sensor	K-thermocouple
Safety Device	Self diagnostic functions (Sensor trouble detection, Memory error, Measured temperature lower limit error, Measured temperature error), Auto overheat prevention, Independent overheat prevention.
Internal Dimensions W×D×H	300×300×300mm	450×450×450mm	600×500×500mm
External Dimensions W×D×H	410×451×670mm	560×601×820mm	710×651×870mm
Internal Capacity	27L	90L	150L
Shelf Plate With Standard Load	15kg/piece
Shelf Rest Step Number	6 steps	9 steps	12 steps
Shelf Rest Pitch	35mm
Power Source 50/60Hz	AC115V 7.5A (with plug) AC220V 4.5A (no plug, round terminal)	AC115V 11A (with plug) AC220V 6.5A (no plug, round terminal)	AC115V 12A (with plug) AC220V 7A (no plug, round terminal)
Weight	~35kg	~50kg	~65kg
Included Accessories	Shelf plate and brackets
Shelf Plate / Bracket	Stainless steel 2 pcs. / 4 pcs.
List Price	$ 2,040	$ 2,395	$ 2,880
