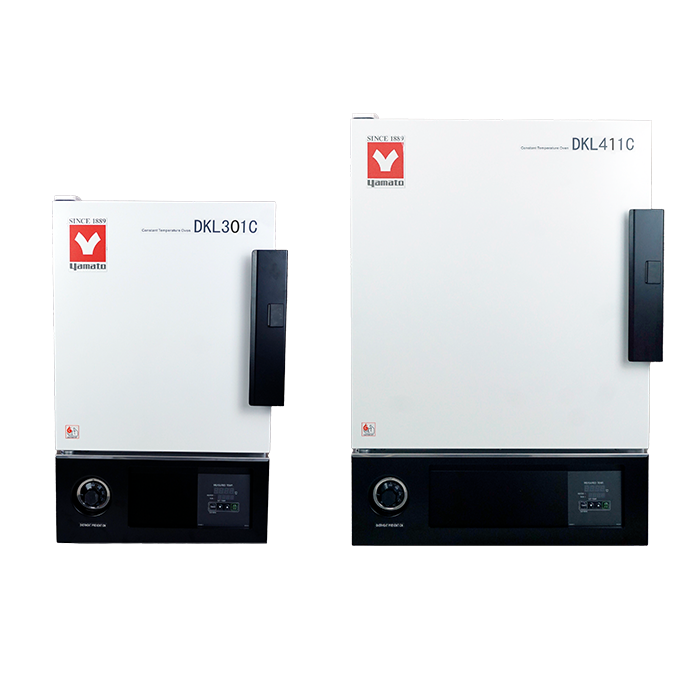

Yamato DKL Series Basic and Economical Forced Convection Oven

Basic non-programmable forced convection constant temperature ovens with simple operation functions.

- DKL301C
- DKL311C
- DKL401C
- DKL411C
- DKL601C
- DKL611C

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Yamato DKL Series Basic and Economical Forced Convection Oven

DKL301C/311C/401C/411C/601C/611C

Performance and functions

Fixed temperature, Quick auto stop, Auto stop, and Auto start operating modes with easy control capabilities
Settings can be made digitally with the dedicated operation menu keys or the ▲/▼ keys
Calibration off-set as auxiliary function

Safety features

Self-diagnostic functions, MCB with over current protector, hydraulic standalone overheat prevention device

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

MODEL	DKL301C DKL311C	DKL401C DKL411C	DKL601C DKL611C
Circulation Method	Forced air circulation
Operating Temperature Range	Room temp. +10~260°C
Temp. Control Accuracy	±1°C (at 260°C)
Temp. Distribution Accuracy	±2.5°C (at 260°C)
Temperature rise time	~90min (at room temp. ~260°C)
Interior Material	Stainless Steel (SUS430)
Exterior Material	Steel plate SPCC (powder coating)
Heat Insulating Material	Glass wool
Heater	SUS pipe heater
0.8kW	1.2kW	1.5kW
Fan motor	Sirocco fan 10W
Cable Port	30 mm l.D.×1 pc. (right side)
Exhaust Port	30 mm l.D.×2 pcs. (top)
Temp. Controller	PlD control by microprocessor
Temp. Setting Method	Digital setting by ▲/▼ key
Operation functions	Fixed temperature, Quick auto-stop, Auto stop, Auto start
Additional functions	Calibration off-set function
Heater Circuit Control	SSR control
Sensor	K-thermocouple
Safety Device	Self diagnostic functions (temperature sensor error, memory error, auto overheat prevention, measured temperature error), MCB with an over current protector, hydraulic standalone overheat prevention device
Internal Dimensions W×D×H	310×310×310mm	450×450×450mm	610×500×500mm
External Dimensions W×D×H	410×450×680mm	560×600×820mm	710×650×880mm
Internal Capacity	27L	90L	150L
Shelf Plate With Standard Load	15kg/piece
Shelf Rest Step Number	6 steps	9 steps	12 steps
Shelf Rest Pitch	35mm
Power Source 50/60Hz	AC115V 7.5A with plug / AC220V 4A no plug, round terminal	AC115V 11A with plug / AC220V 6A no plug, round terminal	AC115V 13.5A with plug / AC220V 7.5A no plug, round terminal
Weight	~35kg	~50kg	~65kg
Shelf Plate	Stainless steel
2 pcs.
Shelf bracket	4 pcs.
List Price	$ 2,065	$ 2,500	$ 2,975

MODEL	DKL301C DKL311C	DKL401C DKL411C	DKL601C DKL611C
Circulation Method	Forced air circulation
Operating Temperature Range	Room temp. +10~260°C
Temp. Control Accuracy	±1°C (at 260°C)
Temp. Distribution Accuracy	±2.5°C (at 260°C)
Temperature rise time	~90min (at room temp. ~260°C)
Interior Material	Stainless Steel (SUS430)
Exterior Material	Steel plate SPCC (powder coating)
Heat Insulating Material	Glass wool
Heater	SUS pipe heater
Heater	0.8kW	1.2kW	1.5kW
Fan motor	Sirocco fan 10W
Cable Port	30 mm l.D.×1 pc. (right side)
Exhaust Port	30 mm l.D.×2 pcs. (top)
Temp. Controller	PlD control by microprocessor
Temp. Setting Method	Digital setting by ▲/▼ key
Operation functions	Fixed temperature, Quick auto-stop, Auto stop, Auto start
Additional functions	Calibration off-set function
Heater Circuit Control	SSR control
Sensor	K-thermocouple
Safety Device	Self diagnostic functions (temperature sensor error, memory error, auto overheat prevention, measured temperature error), MCB with an over current protector, hydraulic standalone overheat prevention device
Internal Dimensions W×D×H	310×310×310mm	450×450×450mm	610×500×500mm
External Dimensions W×D×H	410×450×680mm	560×600×820mm	710×650×880mm
Internal Capacity	27L	90L	150L
Shelf Plate With Standard Load	15kg/piece
Shelf Rest Step Number	6 steps	9 steps	12 steps
Shelf Rest Pitch	35mm
Power Source 50/60Hz	AC115V 7.5A with plug / AC220V 4A no plug, round terminal	AC115V 11A with plug / AC220V 6A no plug, round terminal	AC115V 13.5A with plug / AC220V 7.5A no plug, round terminal
Weight	~35kg	~50kg	~65kg
Shelf Plate	Stainless steel
Shelf Plate	2 pcs.
Shelf bracket	4 pcs.
List Price	$ 2,065	$ 2,500	$ 2,975

Performance under the power supply condition of AC 115V and 220V are shown here.
Operating environmental temperature range for this device is 5~35°C
