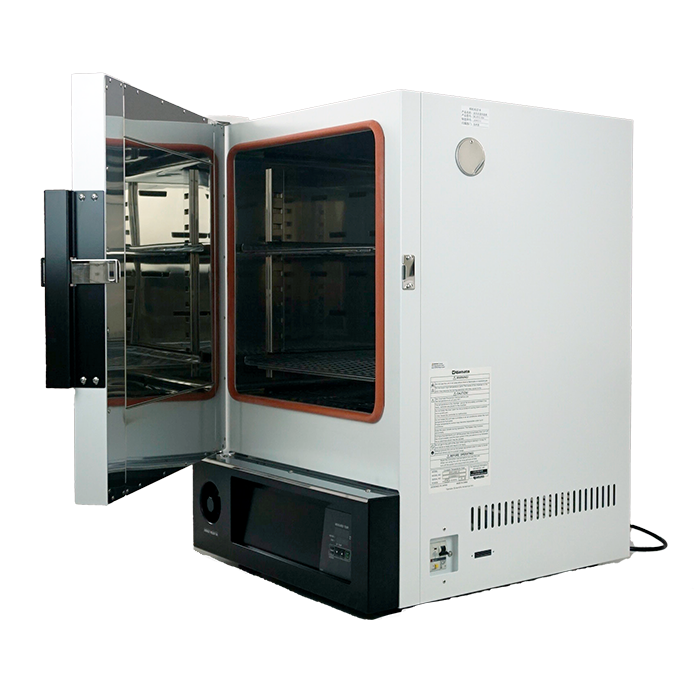

Yamato DKL Series Basic and Economical Forced Convection Oven

https://www.yamato-usa.com/web/image/product.template/201/image_1920?unique=43fe9c9

Basic non-programmable forced convection constant temperature ovens with simple operation functions.

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Yamato DKL Series Basic and Economical Forced Convection Oven?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

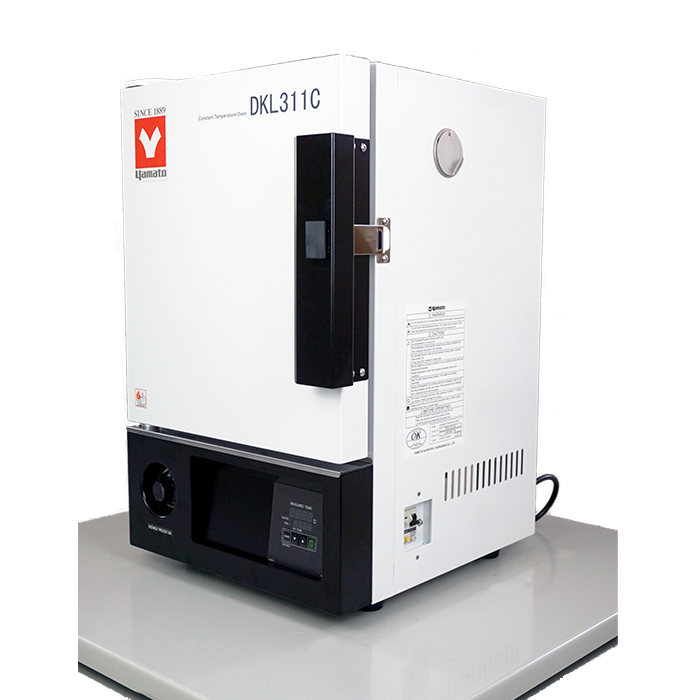

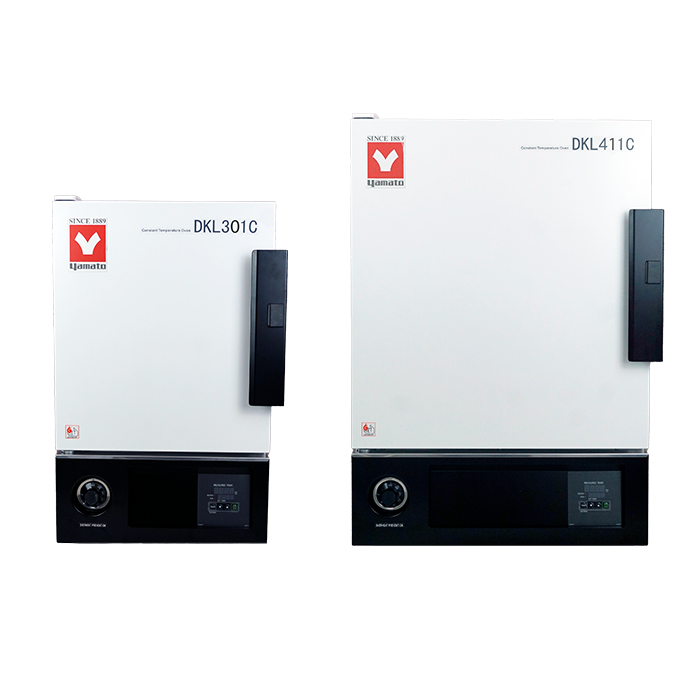

DKL301C/311C/401C/411C/601C/611C​


Performance and functions

  • Fixed temperature, Quick auto stop, Auto stop, and Auto start operating modes with easy control capabilities
  • Settings can be made digitally with the dedicated operation menu keys or the ▲/▼ keys
  • Calibration off-set as auxiliary function

Safety features​

  • Self-diagnostic functions,  MCB with over current protector, hydraulic standalone overheat prevention device
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
MODEL DKL301C
DKL311C		 DKL401C
DKL411C		 DKL601C
DKL611C
Circulation Method Forced air circulation
Operating Temperature Range Room temp. +10~260°C
Temp. Control Accuracy ±1°C (at 260°C)
Temp. Distribution Accuracy ±2.5°C (at 260°C)
Temperature rise time ~90min (at room temp. ~260°C)
Interior Material Stainless Steel (SUS430)
Exterior Material Steel plate SPCC (powder coating)
Heat Insulating Material Glass wool
Heater SUS pipe heater
0.8kW 1.2kW 1.5kW
Fan motor Sirocco fan 10W

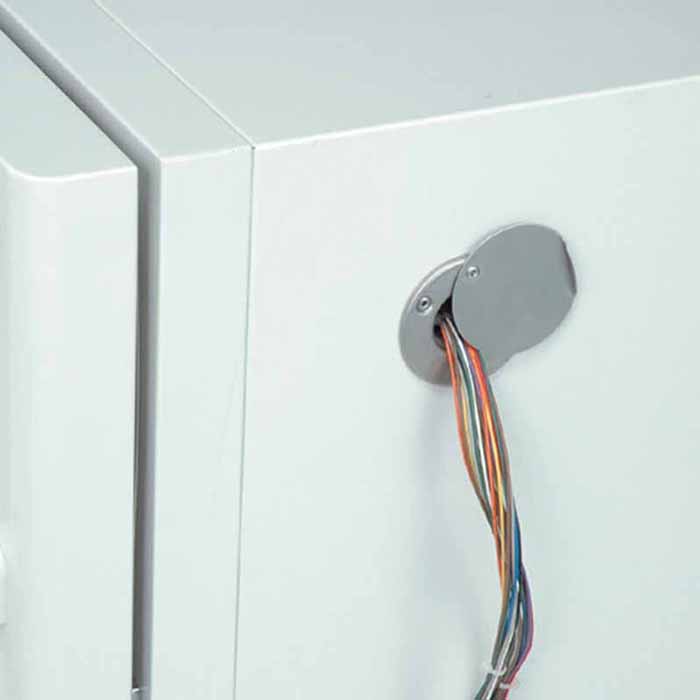

Cable Port 30 mm l.D.×1 pc. (right side)

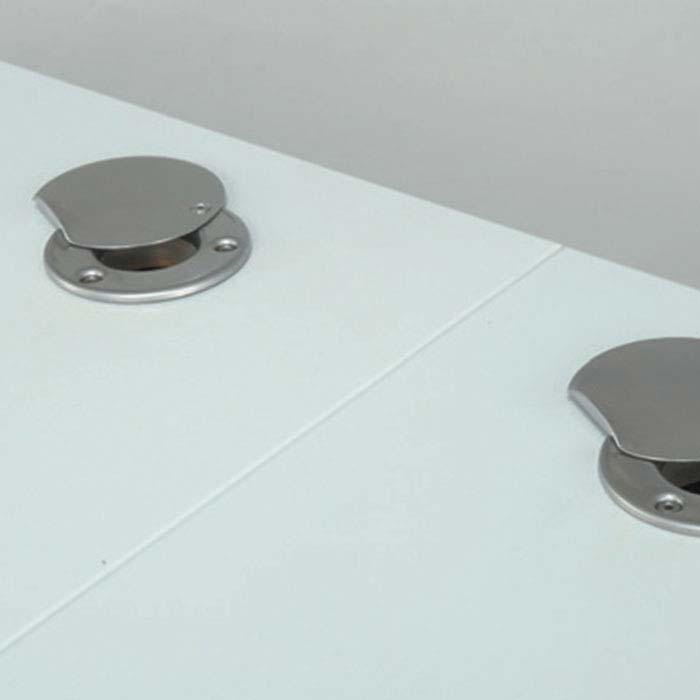

Exhaust Port 30 mm l.D.×2 pcs. (top)
Temp. Controller PlD control by microprocessor
Temp. Setting Method Digital setting by ▲/▼ key
Operation functions Fixed temperature, Quick auto-stop, Auto stop, Auto start
Additional functions Calibration off-set function
Heater Circuit Control SSR control
Sensor K-thermocouple
Safety Device Self diagnostic functions (temperature sensor error, memory error, auto overheat prevention, measured temperature error), MCB with an over current protector, hydraulic standalone overheat prevention device
Internal Dimensions W×D×H 310×310×310mm 450×450×450mm 610×500×500mm
External Dimensions W×D×H 410×450×680mm 560×600×820mm 710×650×880mm
Internal Capacity 27L 90L 150L
Shelf Plate With Standard Load 15kg/piece
Shelf Rest Step Number 6 steps 9 steps 12 steps
Shelf Rest Pitch 35mm
Power Source 50/60Hz AC115V 7.5A with plug / AC220V 4A no plug, round terminal AC115V 11A with plug / AC220V 6A no plug, round terminal AC115V 13.5A with plug / AC220V 7.5A no plug, round terminal
Weight ~35kg ~50kg ~65kg
Shelf Plate Stainless steel
2 pcs.
Shelf bracket 4 pcs.
List Price $ 2,065 $ 2,500 $ 2,975

Performance under the power supply condition of AC 115V and 220V are shown here.
Operating environmental temperature range for this device is 5~35°C


Click on the links below to download the associated PDFs.

Oven Overview

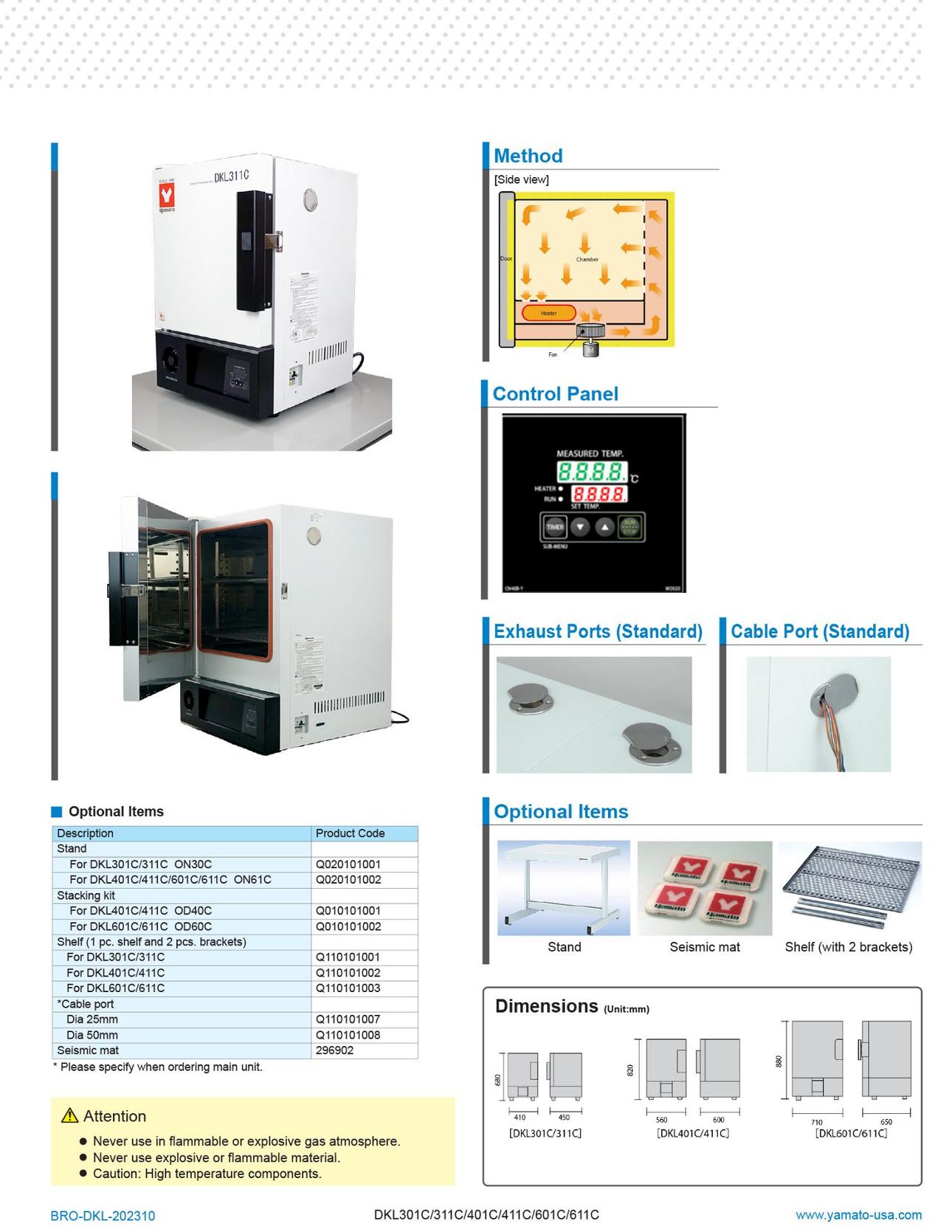

DKL Series Catalog

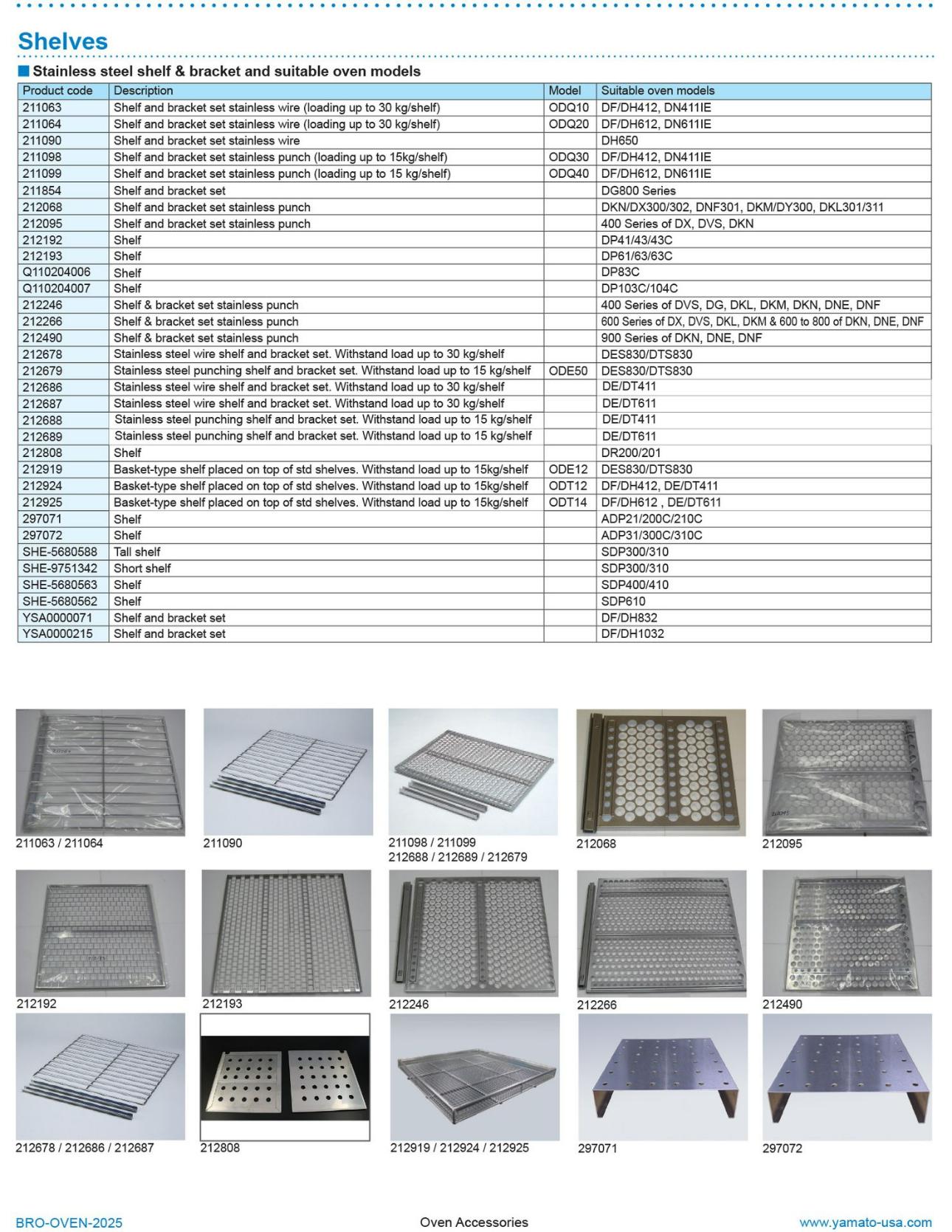

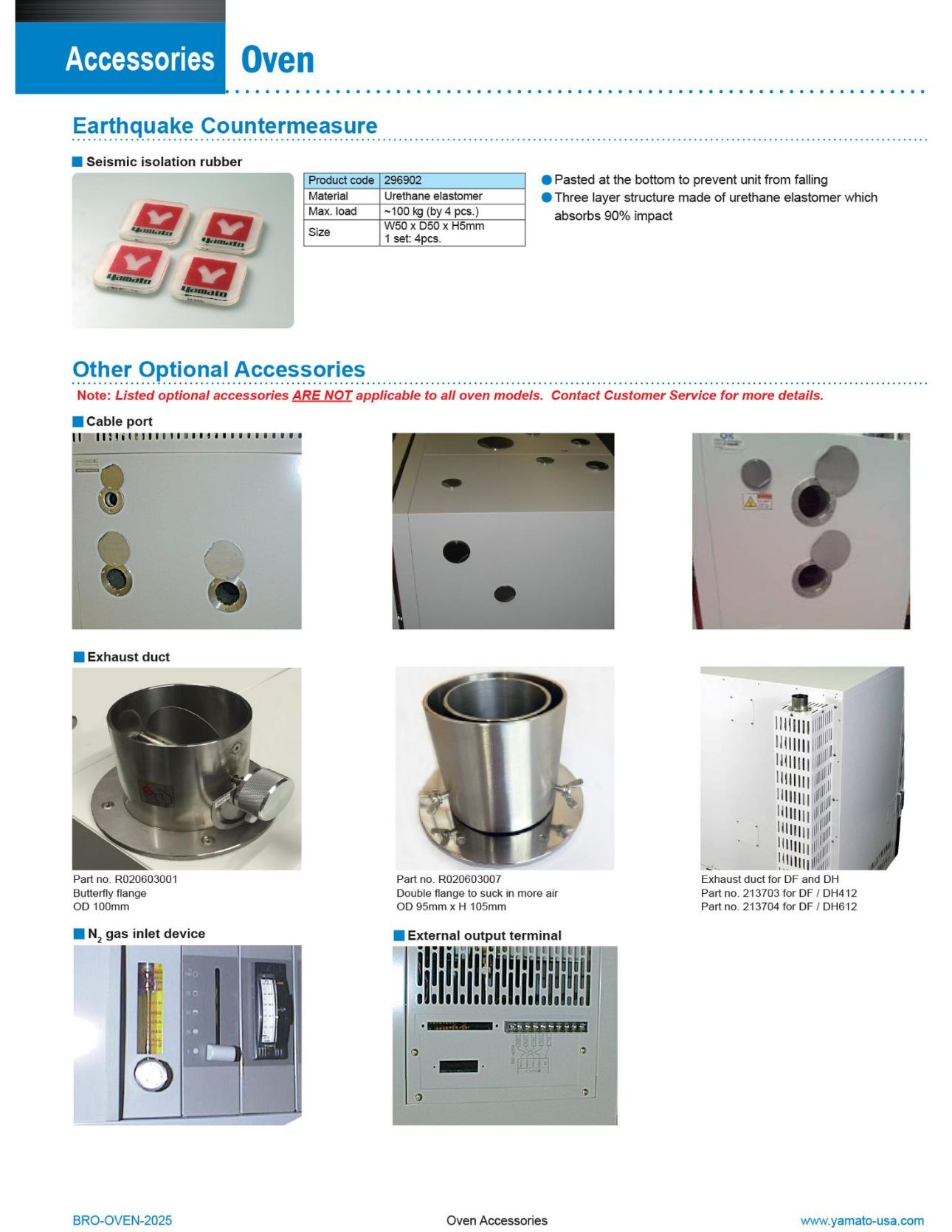

Oven Accessories

To download Operational Manual, visit our Technical Support Center
