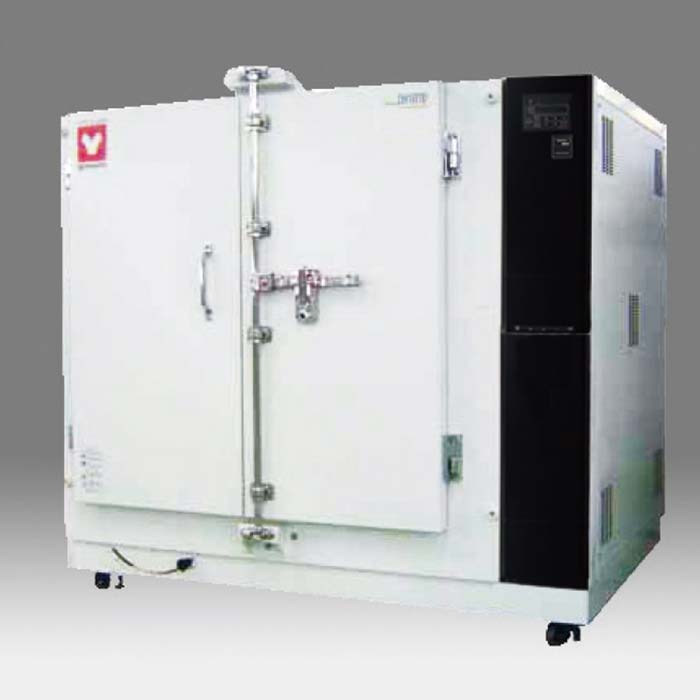

Yamato DF & DH Series Large Capacity High Performance Fine Ovens

Large capacity high-performance fine ovens designed to support high throughput with high accuracy temperature control and exhaust damper

- DF832
- DF1032
- DH832
- DH1032

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Yamato DF & DH Series Large Capacity High Performance Fine Ovens

DF DH 832/1032

Operation and functions

Allows precision maintenance of large parts at a constant temperature
Quick exhaust and cooling in the unit with the exhaust damper
Interactive key entry on the control panel with a green LED digital display for easy settings
Features power consumption /CO₂ emissions monitoring
Increased safety and self-diagnostic functions

Your choice of laboratory oven can have a big effect on your daily lab routines. Download Yamato’s Complete Guide To Buying The Perfect Lab Oven guide and discover how your everyday applications and facility requirements factor into choosing an oven that can provide the best results for your samples.

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	DF832	DF1032	DH832	DH1032
System	Forced air circulation and ventilation
Operating temp. range	Room temp. +15°C~200°C	Room temp. +15°C~300°C
Temperature fluctuation	±0.5°C (at 200°C)	±1.0°C (at 300°C)
Temperature slope	15°C (at 200°C)	20°C (at 300°C)
Temperature controller	PID Z control
Temp setting method	Digital setting with ▲▼ keys
Timer	0 min~99 hrs 59 min (Resolution: 1 minute or 1 hour)
Operation function	Fixed temperature operation, Program operation (maximum 99 steps, up to 99 patterns, repeat operation function) Duration/time select timer operation function (fixed temperature operation, auto start/auto stop/quick auto stop, program operation auto start)
Additional functions	Accumulated Power on and Operation Time (up to 65,535 hours); Calendar Time (24 hours); Calibration Offset; Monitor Display of Accumulated Power Consumption, Total CO₂ Emission, and Heater operating Output; Power Recovery Mode; User Settings Save and Restore Function; Fan Speed Setting Function
Sensor	K-thermocouple (double sensor)
Heater	Stainless steel pipe heater with a fan
	4.5kW	6.0kW	6.9kW	9.0kW
Fan motor	Stainless steel axial flow fan (capacitor motor: 20W), Two motors used for Model 1032
Cable port	I.D. φ30mm (rear)
Heat insulator	Glass wool	Glass wool + ceramic fiber
Other additional structure	Exhaust damper (manual operation)
Safety device	Self-diagnostic functions (temp. sensor error, heater disconnection, SSR short-circuit, automatic overheat prevention), door switch, fan failure detection, key lock, independent overheat protection, electric leakage breaker with over current protection
Power supply 50/60 Hz	3 phase AC220V 13.5A (no plug, round terminal)	3 phase AC220V 17A (no plug, round terminal)	3 phase AC220V 20A (no plug, round terminal)	3 phase AC220V 28A (no plug, round terminal)
Internal dimensions WxDxH	800 x 800 x 800 mm	1000 x 1000 x 1000 mm	800 x 800 x 800 mm	1000 x 1000 x 1000 mm
External dimensions WxDxH	1500 x 1015 x 1330 mm	1700 x 1215 x 1530 mm	1500 x 1015 x 1330 mm	1700 x 1215 x 1530 mm
Shelf support qty. / pitch	10 steps / 76mm	10 steps / 98mm	10 steps / 76mm	10 steps / 98mm
Internal capacity	512L	1,000L	512L	1000L
Weight	~350kg	~450kg	~350kg	~450kg
Included accessories	Shelf and brackets
Shelf / bracket	3 pcs. / 6 pcs.
List Price	$ 11,885	$ 15,045	$ 13,400	$ 17,680

Model	DF832	DF1032	DH832	DH1032
System	Forced air circulation and ventilation
Operating temp. range	Room temp. +15°C~200°C		Room temp. +15°C~300°C
Temperature fluctuation	±0.5°C (at 200°C)		±1.0°C (at 300°C)
Temperature slope	15°C (at 200°C)		20°C (at 300°C)
Temperature controller	PID Z control
Temp setting method	Digital setting with ▲▼ keys
Timer	0 min~99 hrs 59 min (Resolution: 1 minute or 1 hour)
Operation function	Fixed temperature operation, Program operation (maximum 99 steps, up to 99 patterns, repeat operation function) Duration/time select timer operation function (fixed temperature operation, auto start/auto stop/quick auto stop, program operation auto start)
Additional functions	Accumulated Power on and Operation Time (up to 65,535 hours); Calendar Time (24 hours); Calibration Offset; Monitor Display of Accumulated Power Consumption, Total CO₂ Emission, and Heater operating Output; Power Recovery Mode; User Settings Save and Restore Function; Fan Speed Setting Function
Sensor	K-thermocouple (double sensor)
Heater	Stainless steel pipe heater with a fan
	4.5kW	6.0kW	6.9kW	9.0kW
Fan motor	Stainless steel axial flow fan (capacitor motor: 20W), Two motors used for Model 1032
Cable port	I.D. φ30mm (rear)
Heat insulator	Glass wool		Glass wool + ceramic fiber
Other additional structure	Exhaust damper (manual operation)
Safety device	Self-diagnostic functions (temp. sensor error, heater disconnection, SSR short-circuit, automatic overheat prevention), door switch, fan failure detection, key lock, independent overheat protection, electric leakage breaker with over current protection
Power supply 50/60 Hz	3 phase AC220V 13.5A (no plug, round terminal)	3 phase AC220V 17A (no plug, round terminal)	3 phase AC220V 20A (no plug, round terminal)	3 phase AC220V 28A (no plug, round terminal)
Internal dimensions WxDxH	800 x 800 x 800 mm	1000 x 1000 x 1000 mm	800 x 800 x 800 mm	1000 x 1000 x 1000 mm
External dimensions WxDxH	1500 x 1015 x 1330 mm	1700 x 1215 x 1530 mm	1500 x 1015 x 1330 mm	1700 x 1215 x 1530 mm
Shelf support qty. / pitch	10 steps / 76mm	10 steps / 98mm	10 steps / 76mm	10 steps / 98mm
Internal capacity	512L	1,000L	512L	1000L
Weight	~350kg	~450kg	~350kg	~450kg
Included accessories	Shelf and brackets
Shelf / bracket	3 pcs. / 6 pcs.
List Price	$ 11,885	$ 15,045	$ 13,400	$ 17,680
