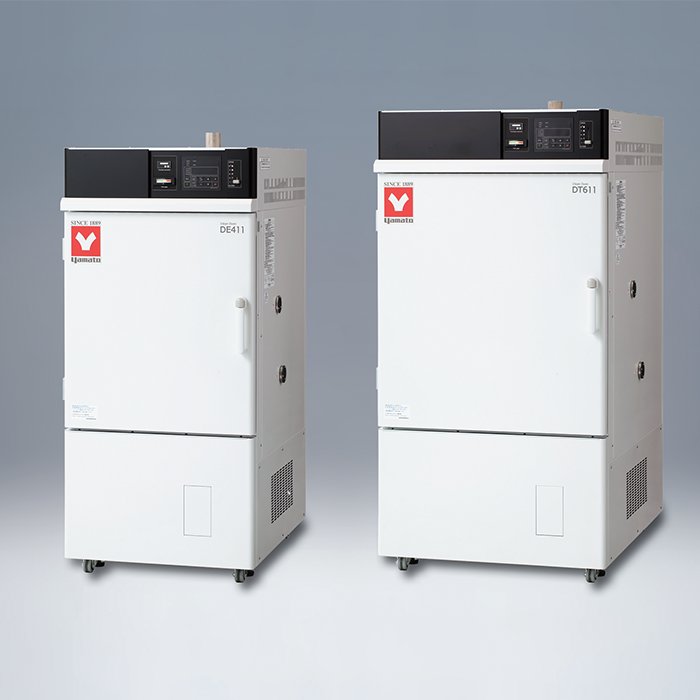

Yamato DE & DT Series Forced Convection Cleanroom Ovens

https://www.yamato-usa.com/web/image/product.template/100/image_1920?unique=43fe9c9

The Yamato DE & DT Class 100 forced convection cleanroom ovens feature advanced temperature control and uniformity for temperature testing in a dust-free environment. Rely on the DE & DT mechanical clean room ovens to carry out unmatched drying, sterilization, or any heating applications that require a temperature range of up to 360°C.

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Yamato DE & DT Series Forced Convection Cleanroom Ovens?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

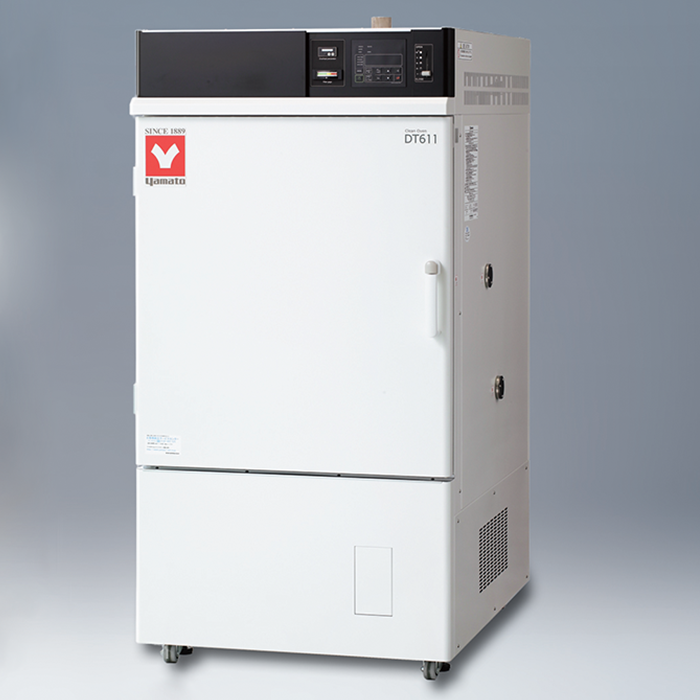

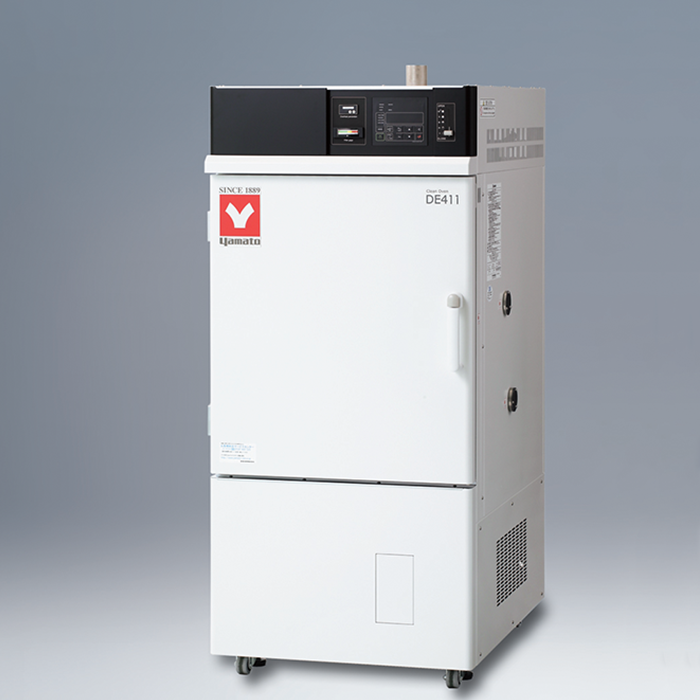

DE411/611 DT411/611


Features

  • Improved visibility and operability with its V type controller
  • Displays power consumption, CO₂ emissions and heater manipulated variables on the control panel
  • Adopts anti-fouling casters which prevents wheel contamination during transportation
  • Improved visibility of HEPA filter replacement timing by three color indication
  • Enhanced safety with its phase-reversal relay detecting incorrect power source at installation
  • Lower equipment height compared to previous models (DE/DT411 approximately ~200 mm shorter)
  • Larger cable port from φ30mm to φ33mm
  • Improved optional accessories and more customization options

Your choice of laboratory oven can have a big effect on your daily lab routines. Download Yamato’s Complete Guide To Buying The Perfect Lab Oven guide and discover how your everyday applications and facility requirements factor into choosing an oven that can provide the best results for your samples.

40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
MODEL DE411 DE611 DT411 DT611
Circulation Method Forced convection
Operating Temp. Range Room temperature +30 to 260°C Room temperature +30 to 360°C
Temp. Control Accuracy ±0.3°C at 260°C ±0.3°C at 360°C
Temp. Fluctuation ±0.5°C at 260°C ±0.5°C at 360°C
Temp. Distribution Accuracy ±2.5°C at 260°C ±4.0°C at 360°C
Temp. Gradient ±10.0°C at 260°C ±20.0°C at 360°C
Max. Temp. Reaching Time ~70 mins. ~80 mins.
Clean Level Class100 (when temperature is stable)
Interior/Exterior Material Stainless steel / Cold rolled steel plate with melamine resin baking finish
Heat Insulating Material Glass wool
Door Single side left swing
Heater Stainless steel pipe heater
Fan Type Sirocco fan, Condenser motor 400W
Differential Pressure Meter Analog type (0 ~ 300Pa)
Cable Port/ Exhaust Port Inner diameter: 33mm×1 (right side) / Outer diameter 61mm
Filter Heat resistant HEPA filter (dust-collection efficiency >99.97% up to 0.3μm particle filtering)
Caster Wheels / Adjuster Free swivel caster wheels without stopper / level adjuster (2 at front)
Temp. Control/Setting Method PID V control / Digital setting with ▲/▼ keys
Temp. Display System Top screen: green 4-digit digital LED (resolution 1°C), Bottom screen: orange 5-digit digital LED (resolution 1°C)
Other Indications LED indicates temperature patterns for heating/stabilizing/cooling
Operation Functions Constant temperature operation, Programmed operation (Maximum 99 steps, up to 99 patterns, repeat operation function),
Duration/time select operation function (auto start/auto stop/quick auto stop, program operation)
Additional Functions Variable fan speed, Accumulated on time, operation time function (up to 65,535 hours); calibration offset; accumulated power
consumption monitoring, total CO₂ emission monitoring, heater output monitoring; power recovery; setting data save and restore
Sensor K type Thermocouple dual sensor (temperature control and independent overheat prevention device sensors)
Heater Control Triac with zero-cross control
Safety Device Self-diagnostic functions (Detection for Temp. Sensor Failure, Triac Short Circuit, Automatic overheating prevention, Fan motor
failure detection, Heater Line Disconnect, Main Relay Contact Damage), Earth leakage breaker, Key Lock Function, Independent
overheating prevention device, Phase reversal relay, Door switch
Earth Leakage Breaker 15A 15A 15A 20A
Current leak /short circuit/surge protection, rated sensitivity 30mA
Door Switch Door open: fan motor and heater circuit off, Door close: fan motor and heater circuit on
Internal Dimensions WxDxH 450×450×450 mm 600×600×600 mm 450×450×450 mm 600×600×600 mm
External Dimensions WxDxH 700×1025×1570 mm 850×1175×1720 mm 700×1025×1570 mm 850×1175×1720 mm
Internal Capacity 91L / 3.21 cu. ft. 216L / 7.62 cu.ft. 91L / 3.21 cu. ft. 216L / 7.62 cu.ft.
Weight ~200 kg / ~441 lbs. ~270 kg / ~596 lbs. ~200 kg / ~441 lbs. ~270 kg / ~596 lbs.
Shelf Rest / Pitch 12 steps / 30mm 17 steps / 30mm 12 steps / 30mm 17 steps / 30mm
Withstand Load Of Shelf ~30 kg / shelf
Power Supply 50/60Hz (V±10%) 220V 3 phase 7A
(no plug, round terminal)		 220V 3 phase 10A
(no plug, round terminal)		 220V 3 phase 10A
(no plug, round terminal)		 220V 3 phase 14A
(no plug, round terminal)
Included Accessories Shelf and brackets
Shelf Plate / Bracket 2 pcs. / 4 pcs. 3 pcs. / 6 pcs. 2 pcs. / 4 pcs. 3 pcs. / 6 pcs.
List Price $ 19,760 $ 22,235 $ 22,570 $ 23,970


* Conditions: temperature and humidity: 23°C+, 65% RH ±20%, atmospheric pressure 86kPa ~106kPa (no load), exhaust damper and intake closed

Click on the links below to download the associated PDFs.

Oven Overview

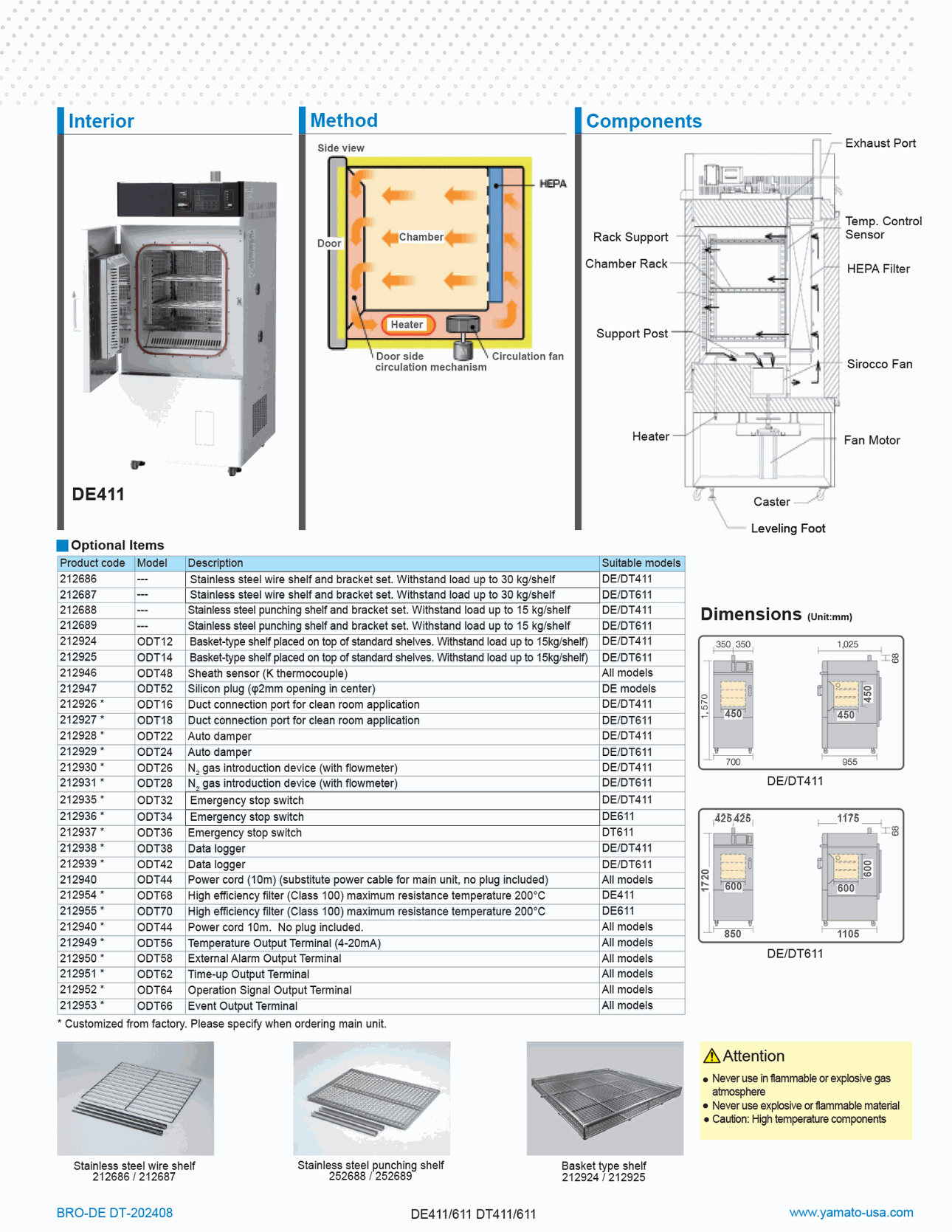

DE411/611 DT411/611 Catalog

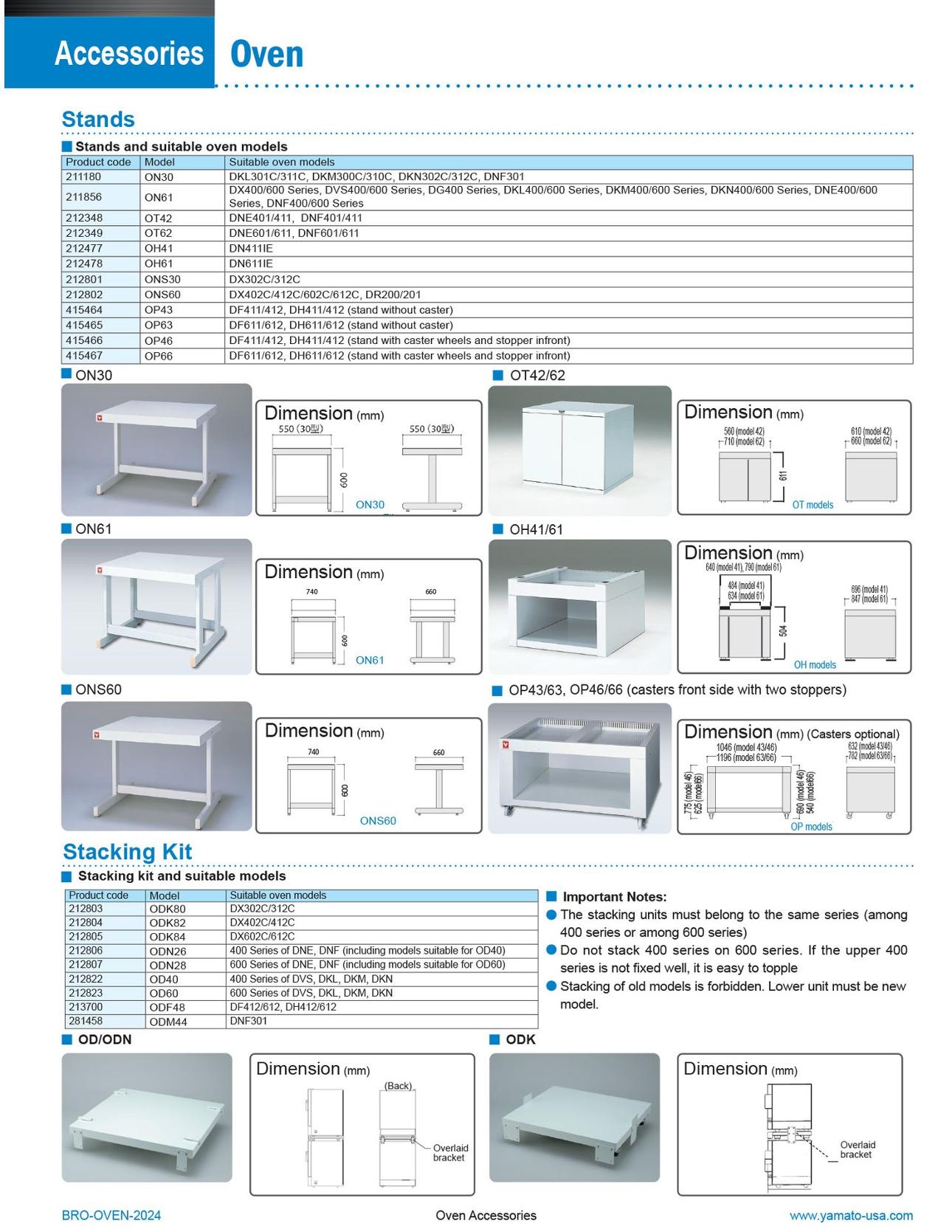

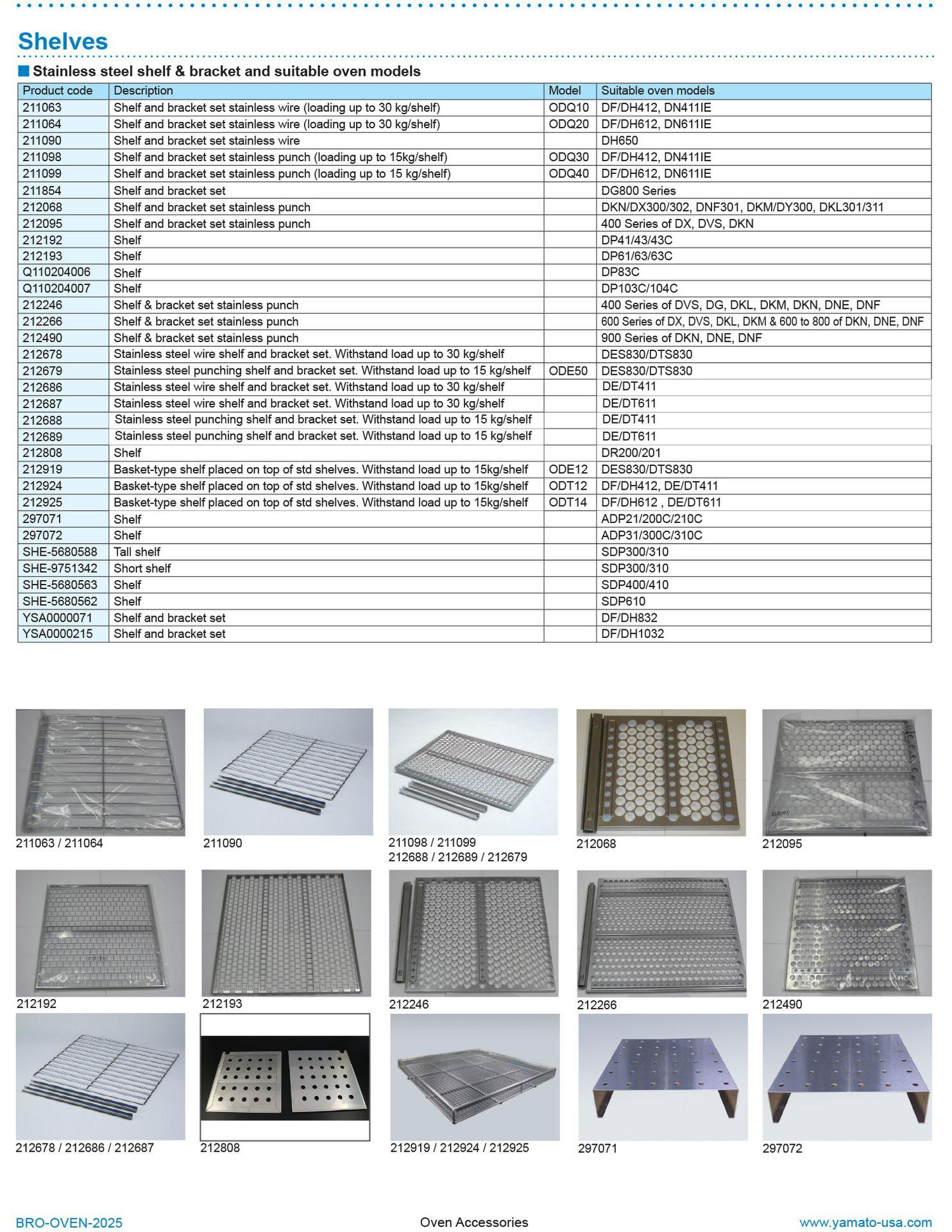

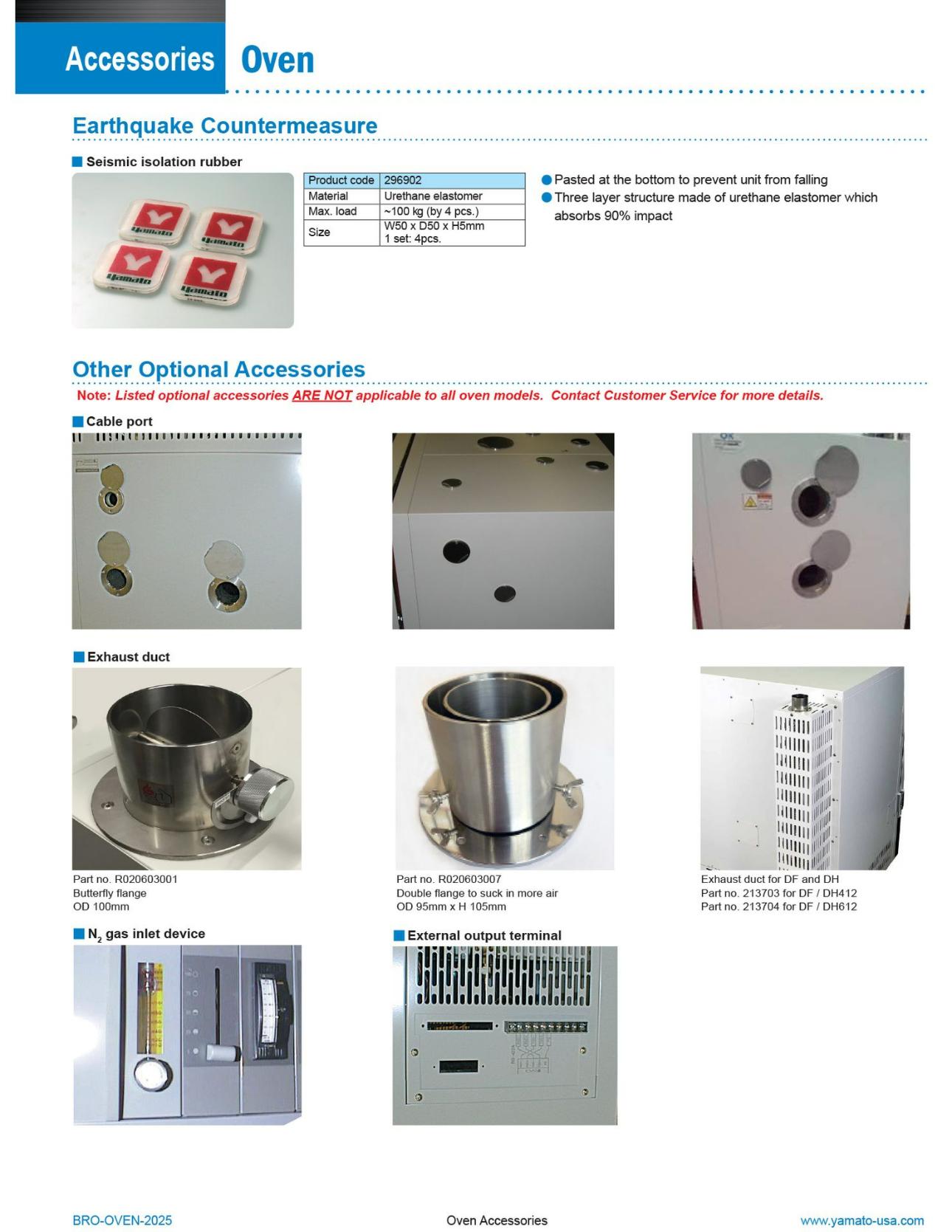

Oven Accessories

Lab Oven Buyer's Guide

To download Operational Manual, visit our Technical Support Center
