Yamato BOG and BOS Series Laboratory Oil Bath

https://www.yamato-usa.com/web/image/product.template/180/image_1920?unique=43fe9c9

A new standard for synthetic experiments

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Yamato BOG and BOS Series Laboratory Oil Bath?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

BOG100/110/200/210 ​BOS100/110/200/210

​Performance and function

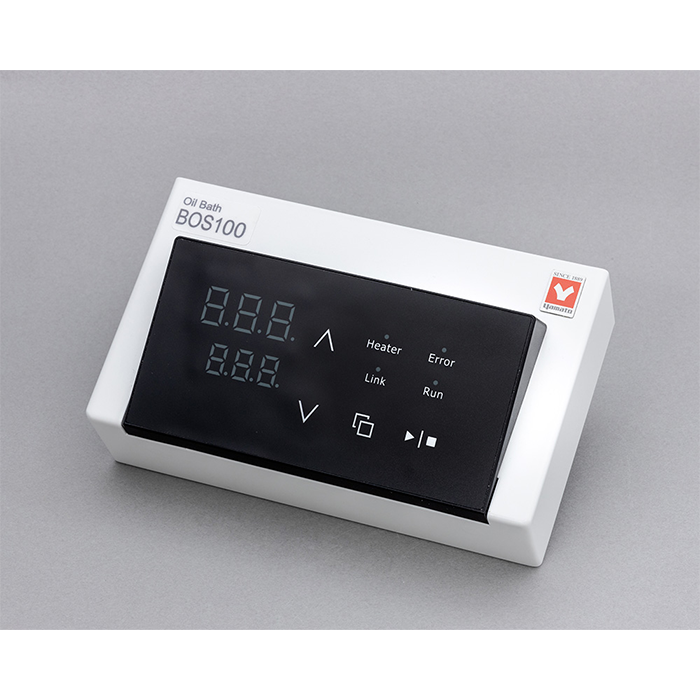

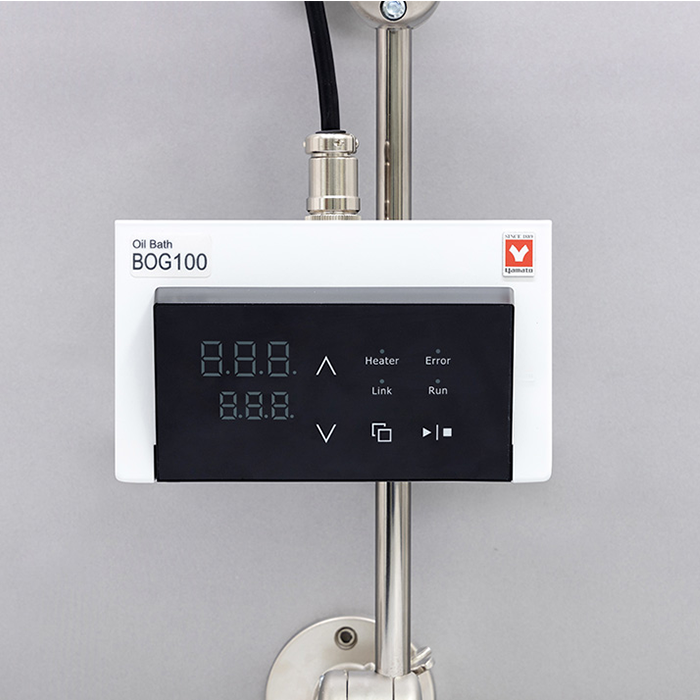

  • Safe and secure bath operation as controller can be safely operated from a distance

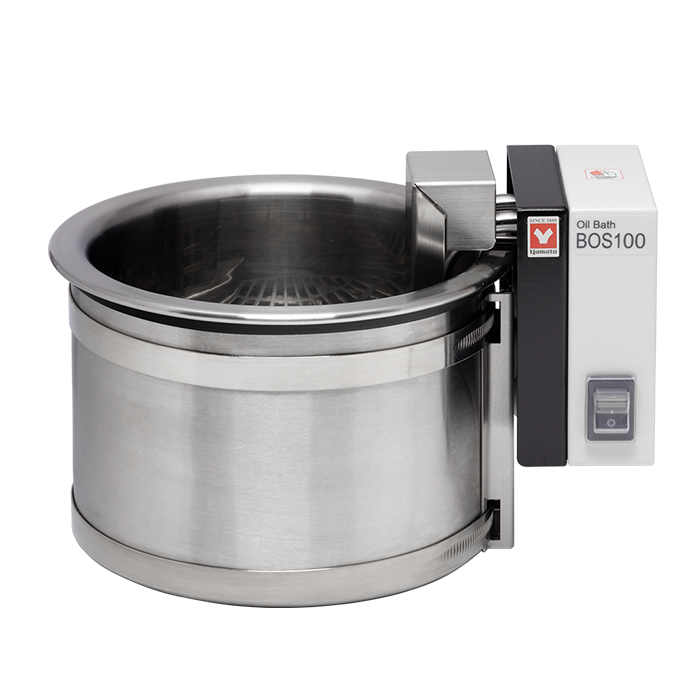

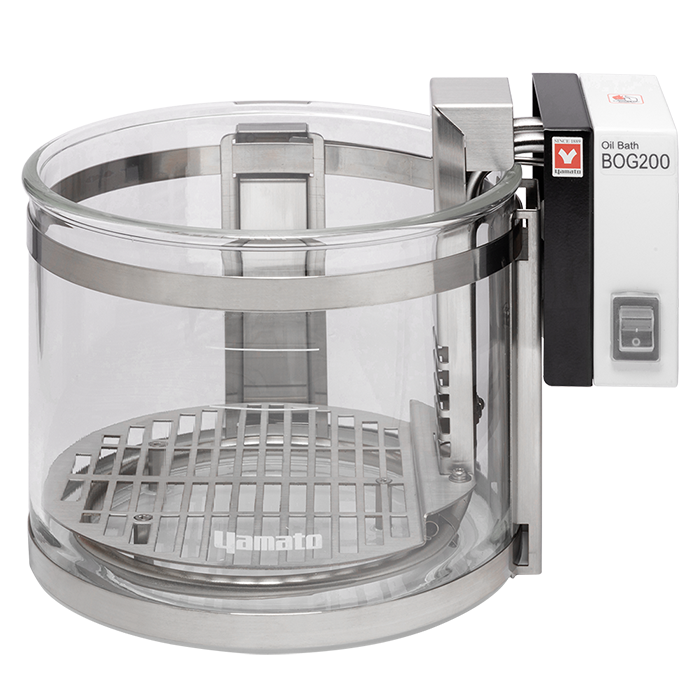

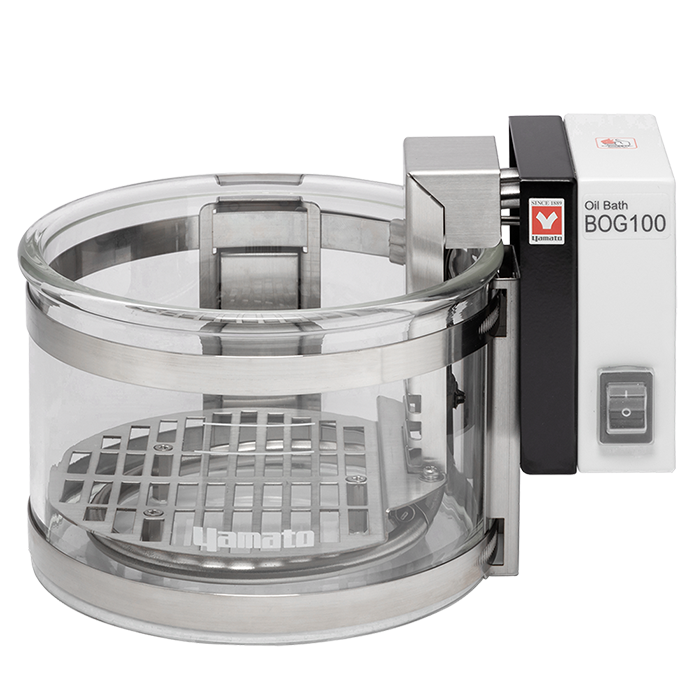

  • Choice between glass bath for high visibility (BOG) or solid stainless bath for good temperature stability (BOS)
  • Indent at the bottom of the bath allows integration of stirrer's hot plate. Also prevents bath from sliding or slipping off. Compatible with Yamato MFD800/MFH800 magnetic stirrers.
  • Useless oil use and oil overflow are reduced as recommended amount of oil to use is indicated in the bath
  • Highly accurate and rapid temperature control in the flask is possible with the use of the temperature sensor (optional) inserted into the flask and the in-tank sensor together

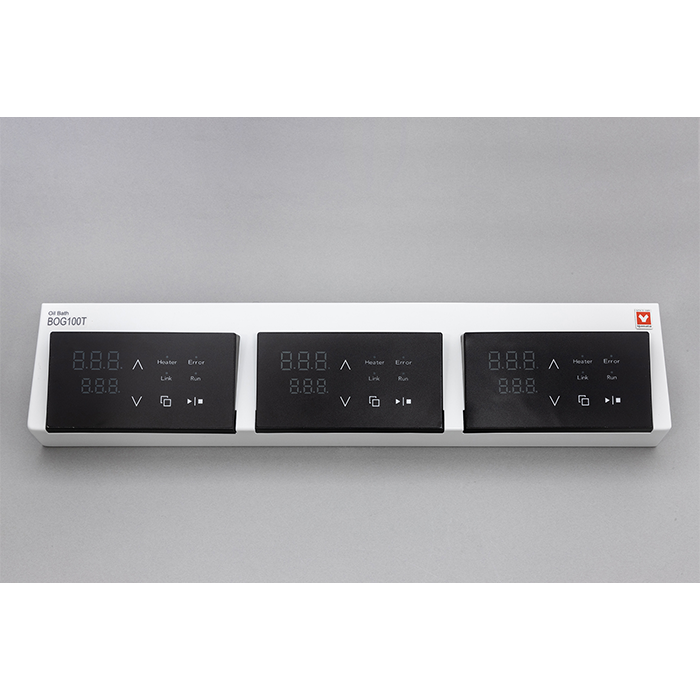

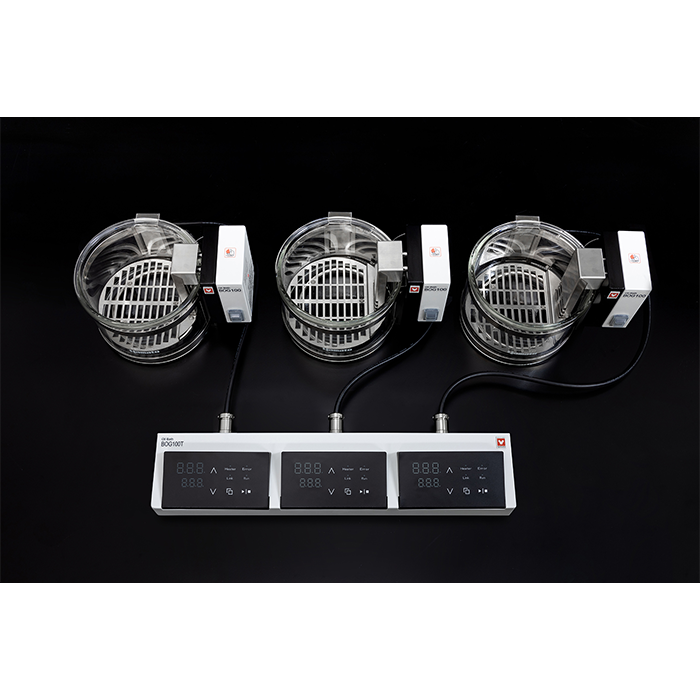

  • Option for a triple system

​Safety features

  • Independent overheat prevention device and heater guard
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model BOG100
BOG110		 BOG200
BOG210		 BOS100
BOS110		 BOS200
BOS210
Performance Temperature setting range 0~260°C
Temperature control range Room temp. +5~240°C Room temp. +5~250°C
Temperature control accuracy ± 0.3°C (at 200°C, when stirring)
Controller Temperature control system PID control
Temp. setting/display method Digital setting using ▲▼ keys (display in units of 1°C)
Operation function Fixed temperature operation
Additional functions Calibration offset function, auto resume, LED brightness setting
Heater circuit control Triac zero cross method
Temperature sensor Pt100Ω
Configuration Exterior Chromium-free electrogalvanized steel plate baked finish
Bath Hard transparent glass Stainless steel
Heater material Stainless steel tube heater
Heater capacity 310W 425W 310W 425W
Safety devices Controller Self-diagnostic functions ( temperature sensor error detection, automatic overheat prevention)
Fuse 6.3 A, short-circuit protection, overcurrent protection
Others Independent overheat prevention device
Standards Internal dimension (mm) φ140×100 φ170×140 φ140×100 φ170×140
External dimension (mm) φ150×205×140 φ 180×235×180 φ 155×210×140 φ 185×240×180
Bath capacity
Recommended (no load) ~0.8L ~1.7L ~0.8L ~1.7L
Maximum (no load) ~1.0L ~2.2L ~1.0L ~2.2L
Controller (W×D×H) mm
150×90×45mm
Power supply 50/60 Hz
115V 3.5A
220V 2.0A		 115V 4.5A
220V 2.5A		 115V 3.5A
220V 2.0A		 115V 4.5A
220V 2.5A
Weight
Bath and heater ~1.8 kg ~2.3 kg ~2.5 kg ~2.9 kg
Single controller ~0.5 kg
Total weight ~2.3 kg ~2.8 kg ~3.0 kg 3.4 kg
Accessories Heater guard (1 set), arbor (outer diameter φ12 x 90 mm: 1 pc.), PTFE stirrer (~ φ8 x 50 mm: 1 pc.), connector cap (1 pc.), tag attached cable ties (3)
List Price $ 1,010 $ 1,210 $ 1,010 $ 1,210

Click on the links below to download the associated PDFs.

Bath Overview

BOG BOS Series Catalog

To download Operational Manual, visit our Technical Support Center
