Yamato BO Series Constant Temp Laboratory Oil Bath

https://www.yamato-usa.com/web/image/product.template/32/image_1920?unique=43fe9c9

Easy to use, digital setting, compact design oil bath

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Yamato BO Series Constant Temp Laboratory Oil Bath?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

BO302A BO312A / BO500-115V BO500-220V/ BO601-115V BO601-220V


Features

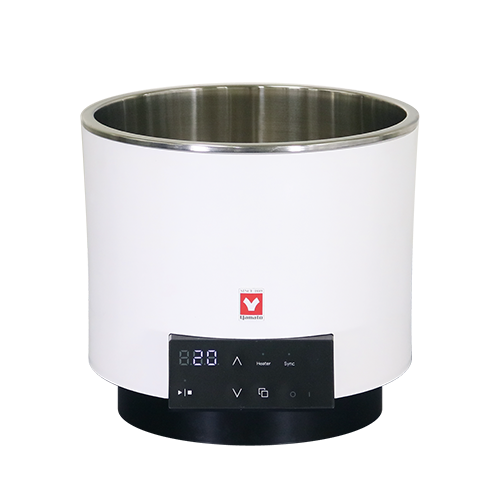

BO302A/312A

  • White LED digital display, key entry, minimum digit of 1°C
  • Flat-shaped bath with no heater or sensor inside makes for ease in cleaning
  • Full range of safety functions
  • Can be used for oil and water

BO601

  • Digital temperature setting by ▲▼ keys
  • Protected oil tank prevents burns caused by contact
  • Equipped with a drain

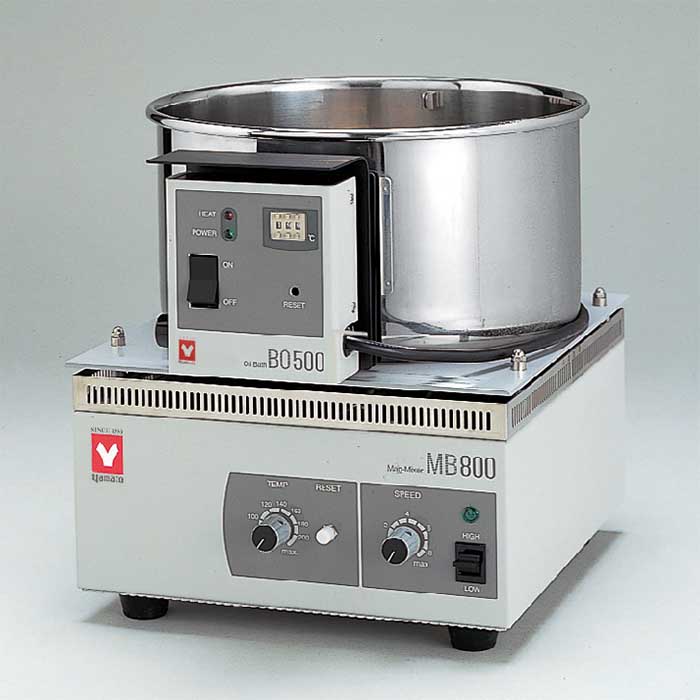

BO500

  • Stainless steel oil bath
  • Bath protection sheet to prevent operator from burning
  • Must be used with MB800 magnetic stirrer



40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model BO302A
BO312A		 BO500-115V
BO500-220V		 BO601-115V
Operating temp. range *¹ Room temp. +10~180°C Room temp. +5~199°C Room temp. +5~180°C
Temp. control accuracy *² ± 2.0°C (oil bath)
±1.5°C (water bath)		 ±0.5°C ±2°C (at 100°C)
Temp. control system PID control Proportional control PID control by microprocessor
Temp. setting / display method White LED digital display, key entry, min. digit of 1°C Digital / Glass thermometer Digital setting by ▲/▼ keys
Operation function Fixed temperature -- Fixed temperature, quick auto-stop, auto stop, auto start
Additional function -- -- Keypad lock, power failure recovery, calibration off-set
Heater 1000W aluminum sheathed heater Pipe heater 700W SUS316 pipe heater 1kW
Sensor Pt100Ω Pt100Ω K thermocouple
Safety device Bath protection sheet Bath protection sheet Bath protection cover
Automatic overheat prevention, independent overheat prevention (fixed temp.), temperature upper limit error, Overcurrent protection fuse; Overshoot alert, Auto resume (selectable), 2A service outlet, calibration offset Self-diagnostic function (automatic overheat prevention, temperature sensor error, triac short circuit, heater disconnection, main relay failure), circuit protector, thermal fuse
Interlocking control function -- -- --
Water tank Capacity ~5L ~5.2L ~7L
Internal dimensions ø240 x H119 mm ø240 x H130mm ø250 x H150mm
External dimensions ø262 x H240 mm W250 x D290 x H130mm W310 x D360 x H230mm
Weight ~4.5kg ~1.4kg ~8kg
Power source (50/60 Hz) AC100-115V, 10-12A (with plug)
AC200-230V, 5-6A (no plug)		 AC115V 7A (with plug)
AC220V 4A, (no plug) no breaker*³		 AC115V 11A (with plug)
List Price $ 740 $ 1,625 $ 2,175


*1. No load operation of bath only. Maximum temperature varies by different circumstances and operational conditions.

*2. Measured under ambient temperature at 23°C±5°C, humidity of 65%RH±20%.

*3. When combined with magnetic stirrer MB800, power source is from MB800 main unit outlet.
