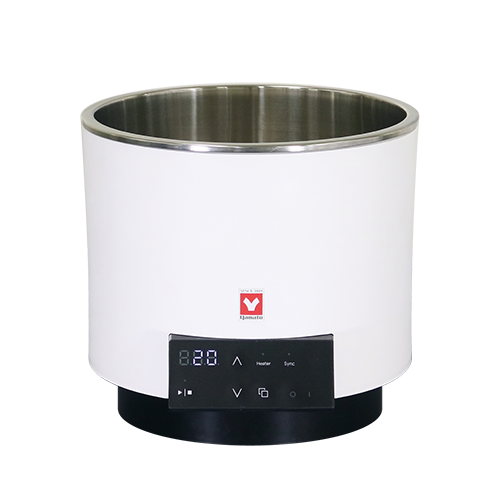

Yamato BO Series Constant Temp Laboratory Oil Bath

Easy to use, digital setting, compact design oil bath

$ 1.00 $ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us
https://www.yamato-usa.com/web/image/product.template/32/image_1920?unique=dd0d89e

BO302A BO312A / BO500-115V BO500-220V/ BO601-115V BO601-220V


Features

BO302A/312A

  • White LED digital display, key entry, minimum digit of 1°C
  • Flat-shaped bath with no heater or sensor inside makes for ease in cleaning
  • Full range of safety functions
  • Can be used for oil and water

BO601

  • Digital temperature setting by ▲▼ keys
  • Protected oil tank prevents burns caused by contact
  • Equipped with a drain

BO500

  • Stainless steel oil bath
  • Bath protection sheet to prevent operator from burning
  • Must be used with MB800 magnetic stirrer



40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model BO302A
BO312A		 BO500-115V
BO500-220V		 BO601-115V
Operating temp. range *¹ Room temp. +10~180°C Room temp. +5~199°C Room temp. +5~180°C
Temp. control accuracy *² ± 2.0°C (oil bath)
±1.5°C (water bath)		 ±0.5°C ±2°C (at 100°C)
Temp. control system PID control Proportional control PID control by microprocessor
Temp. setting / display method White LED digital display, key entry, min. digit of 1°C Digital / Glass thermometer Digital setting by ▲/▼ keys
Operation function Fixed temperature -- Fixed temperature, quick auto-stop, auto stop, auto start
Additional function -- -- Keypad lock, power failure recovery, calibration off-set
Heater 1000W aluminum sheathed heater Pipe heater 700W SUS316 pipe heater 1kW
Sensor Pt100Ω Pt100Ω K thermocouple
Safety device Bath protection sheet Bath protection sheet Bath protection cover
Automatic overheat prevention, independent overheat prevention (fixed temp.), temperature upper limit error, Overcurrent protection fuse; Overshoot alert, Auto resume (selectable), 2A service outlet, calibration offset Self-diagnostic function (automatic overheat prevention, temperature sensor error, triac short circuit, heater disconnection, main relay failure), circuit protector, thermal fuse
Interlocking control function -- -- --
Water tank Capacity ~5L ~5.2L ~7L
Internal dimensions ø240 x H119 mm ø240 x H130mm ø250 x H150mm
External dimensions ø262 x H240 mm W250 x D290 x H130mm W310 x D360 x H230mm
Weight ~4.5kg ~1.4kg ~8kg
Power source (50/60 Hz) AC100-115V, 10-12A (with plug)
AC200-230V, 5-6A (no plug)		 AC115V 7A (with plug)
AC220V 4A, (no plug) no breaker*³		 AC115V 11A (with plug)


*1. No load operation of bath only. Maximum temperature varies by different circumstances and operational conditions.

*2. Measured under ambient temperature at 23°C±5°C, humidity of 65%RH±20%.

*3. When combined with magnetic stirrer MB800, power source is from MB800 main unit outlet.

Click on the links below to download the associated PDFs.

Bath Overview

BO Series Catalog

BO302A/312A Catalog

MB800 Magnetic Stirrer

Lab Bath Buyer’s Guide
