Yamato BM Series Constant Temp Lab Water Baths

https://www.yamato-usa.com/web/image/product.template/25/image_1920?unique=f9f52e9

Easy to use, compact design water bath

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model
  • Capacity
  • Operation function
  • Temperature control accuracy

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us
Capacity: Up to 5L
Operation function: Fixed temperature

Interested In Our Yamato BM Series Constant Temp Lab Water Baths?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

BM100/110/302A/312A/401/500/510


​Features

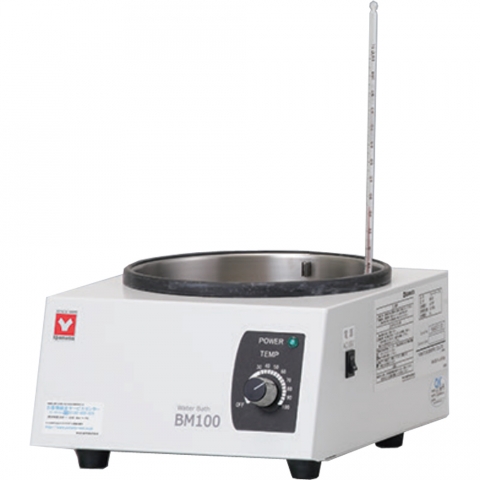

BM100/110

  • Analog set up system
  • Thermometer is included to verify actual temperature
  • Protected water tank prevents burns caused by contact

BM302A/312A

  • White LED digital display, key entry
  • Flat-shaped bath with no heater or sensor inside makes for ease in cleaning
  • Full range of safety functions

BM401

  • Digital temperature setting by ▲▼ keys
  • Protected water tank prevents burns caused by contact
  • Equipped with a drain

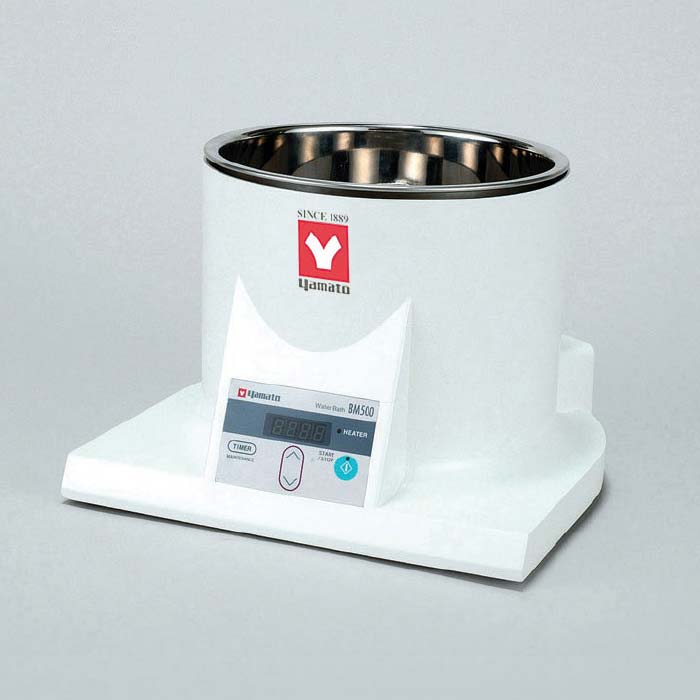

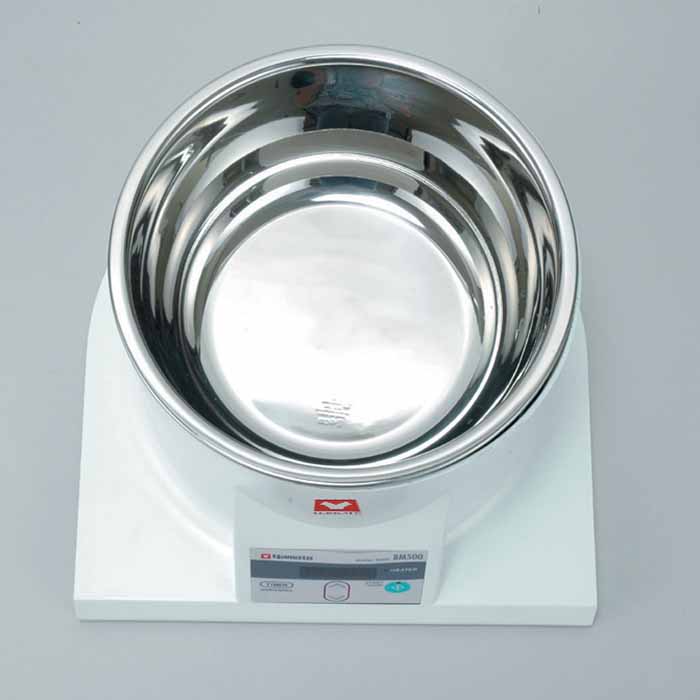

BM500/510

  • Digital temperature setting by ▲▼ keys

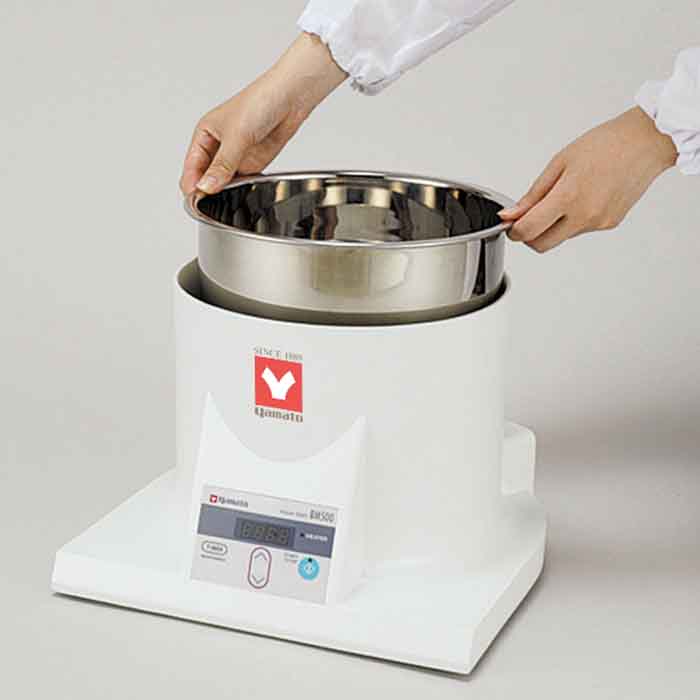

  • Removable water tank for convenient cleaning and changing of water
  • Heater situated outside the water tank
  • Exclusive connection for bath operational setting function with RE601/801 rotary evaporator


40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model BM100
BM110		 BM302A
BM312A		 BM401
 BM500
BM510
Operating temp. range *¹ Room temp. +5~95°C *¹ Room temp. +10~90°C Room temp. +5~95°C *¹ Room temp. +5~90°C
Temp. adjustment accuracy*² ±2°C (at 60°C) ±1.0°C ±1°C (at 60°C) ±1.5°C (at agitation)
Temp. control system ON/OFF control PlD control PlD control by microprocessor PlD control by microprocessor
Temp. setting / display method Analog setting (Glass thermometer indication) White LED digital display, key entry, minimum digit of 1°C Digital setting by ▲▼ keys Digital 7 segment LED
Digital setting by ▲▼ keys
Operation function Operation at fixed point Operation at fixed point Operation at fixed point Fixed temperature, quick auto stop, auto stop, auto start
Additional functions -- --- Temp. preset function (preset / select one temp.) Keypad lock, maintenance function (RE signal transmission and reception), calibration off-set, power failure recovery
Heater SUS316 pipe heater 500W 1000W aluminum sheathed heater SUS316 pipe heater 1kW 1kW (100V) / 1.44kW (120V)
1kW (200V) / 1.44kW (220V)
Sensor Liquid expansion type Pt100Ω Pt100Ω K thermocouple
Safety device Bath protection cover Bath protection cover Bath protection cover Bath protection cover (ABS heat-resistant resin)
Overcurrent protection (fuse: 7A), thermal fuse Automatic overheat prevention, independent overheat prevention (fixed temp.), temperature upper limit error, Overcurrent protection fuse, Overshoot alert, Auto resume (selectable), calibration offset, 2A service
outlet (for BM302A)		 Self-diagnostic functions (automatic overheat prevention, sensor trouble, triac short circuit, heater disconnection, main relay failure), circuit protector, thermal fuse Self-diagnostic functions (automatic overheat prevention, sensor trouble, triac short circuit, heater disconnecton, main relay failure), circuit protector, thermal fuse, micro switch to detect heating without water
Water tank capacity ~4L ~5L ~7L ~4L
Water tank dimensions
(Internal dimensions)		 ø200 x D120 mm ø240 x 119 mm (H) ø250 x D150 mm Max. ø240 x bottom ø165 x D122 mm
External dimensions WxDxH 240 x 300 x 150 mm ø262 x 240 mm (H) 310 x 360 x 230 mm 340 x 349 x 231 mm
Weight ~3.5kg ~4.5kg ~7kg ~5.5kg
Power source
(50/60 Hz)		 AC115V 4.5A paddle switch (with plug)
AC220V 2.3A paddle switch (no plug) 		AC100-115V, 10-12A (with plug)
AC200-230V, 5-6A (no plug) 		AC115V 11A (with plug)
AC100V~120V 12.5~10.5A (with plug)
AC200~240V 6.5~5.5A (no plug)
Included accessories Bar thermometer (10~110°C) with immersion line Spare fuse for main power (large)(1), Spare fuse for service outlet (small) (1) for BM302A -- --
List Price $ 430 $ 685 $ 1,690
$ 660 (promo)

*1 No load operation of bath only. Maximum temperature varies based on different circumstances and operational conditions.
*2 Measured under ambient temperature of 23°C±5°C, humidity of 65%RH±20%.
