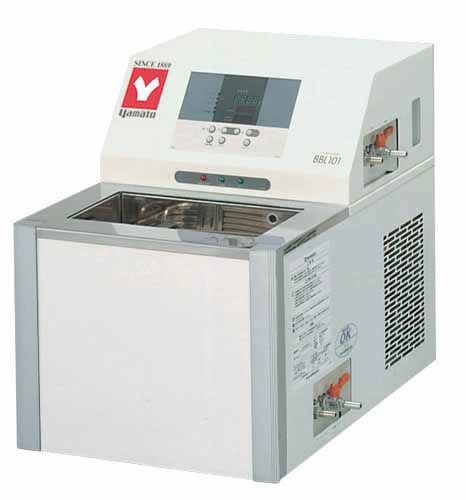

Yamato BBL Series Constant Low Temperature Water Baths

Benchtop constant low temperature water bath at 8L/13L capacity with an operating temperature range of -10~80°C

- BBL101-115V
- BBL101-220V
- BBL301-115V
- BBL301-220V

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Yamato BBL Series Constant Low Temperature Water Baths

BBL101-115V BBL101-220V / BBL301-115V BBL301-220V

Performance and functions

Precision control with temperature adjustment accuracy of ±0.1°C
More applications available with larger tank space
Internal / External Circulation can be changed easily
Shelf height is 2 stage adjustable for different flask sizes
Standard equipped with auto stop, auto start, RS485 communication function, temperature output terminal (4~20mA)
Enhanced safety features includes self diagnostic function, over-current circuit breaker, refrigerator overload relay, empty boiling prevention float switch, refrigerator protection delay timer function

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	BBL101-115V BBL101-220V	BBL301-115V BBL301-220V
System	Pump circulation cooling / external circulation system
Temperature control range *¹	-10~+80°C (at room temperature 20°C)
Temperature adjustment accuracy *¹	±0.1°C
Temperature distribution accuracy *¹	±0.3°C
Cooling capacity *¹	~370W (320Kcal/h) (at liquid temp. 15°C)	~410W (350Kcal/h) (at liquid temp. 15°C)
Ambient temperature *¹	5~30°C
Temperature control	PID control
Operation function	Fix temperature, Auto stop, Auto start
Temperature sensor	Double sensor: Pt100Ω (for temp. control) and K-thermocouple (for overheat prevention device)
Refrigerator / coolant	160W Air-cooled fully closed compressor R134A	300W Air-cooling sealed rotary R404A
Circulation method	Magnet pump circulation
Circulation system capacity (50/60 Hz)	Maximum flow rate (pump capacity): 3.7/4.7L/min. (11.0/12.0L/min.)
Maximum pump head (pump capacity): 1.0/1.5m (1.5/2.1m)
Heater	700W	900W
Safety device	Earth leakage breaker, refrigerator overload relay protecting circuit, refrigerator pressure detection, empty boiling prevention float switch, delay timer for refrigerator protection, overheating prevention device, power failure protection function, key lock function
Other function	Drain port, condenser filter, RS485 communication function, temperature output terminal, refrigerator pressure switch indicator, calibration offset
Bath dimensions *²	W300 x D150 x H177.5 (Effective dimensions 238 x 100 x 85mm)	W300 x D240 x H177.5 (Effective dimensions 238 x 190 x 85mm)
Internal (effective) capacity	8 (6.95) L	13 (11.5) L
External dimensions *²	W500 x D530 x H500mm (water bath height 330mm)	W502 x D603 x H500mm (water bath height 330mm)
Power source (50/60Hz)	AC115V 8A AC220V 4A	AC115V 11A AC220V 6A
Weight	~50kg	~55kg
Accessories	Bottom shelf 1 pc., lid, drain hose 0.5m 1pc., over flow hose 0.5m 1pc.
Price List	$ 5,170	$ 5,940

Model	BBL101-115V BBL101-220V	BBL301-115V BBL301-220V
System	Pump circulation cooling / external circulation system
Temperature control range *¹	-10~+80°C (at room temperature 20°C)
Temperature adjustment accuracy *¹	±0.1°C
Temperature distribution accuracy *¹	±0.3°C
Cooling capacity *¹	~370W (320Kcal/h) (at liquid temp. 15°C)	~410W (350Kcal/h) (at liquid temp. 15°C)
Ambient temperature *¹	5~30°C
Temperature control	PID control
Operation function	Fix temperature, Auto stop, Auto start
Temperature sensor	Double sensor: Pt100Ω (for temp. control) and K-thermocouple (for overheat prevention device)
Refrigerator / coolant	160W Air-cooled fully closed compressor R134A	300W Air-cooling sealed rotary R404A
Circulation method	Magnet pump circulation
Circulation system capacity (50/60 Hz)	Maximum flow rate (pump capacity): 3.7/4.7L/min. (11.0/12.0L/min.)
Circulation system capacity (50/60 Hz)	Maximum pump head (pump capacity): 1.0/1.5m (1.5/2.1m)
Heater	700W	900W
Safety device	Earth leakage breaker, refrigerator overload relay protecting circuit, refrigerator pressure detection, empty boiling prevention float switch, delay timer for refrigerator protection, overheating prevention device, power failure protection function, key lock function
Other function	Drain port, condenser filter, RS485 communication function, temperature output terminal, refrigerator pressure switch indicator, calibration offset
Bath dimensions *²	W300 x D150 x H177.5 (Effective dimensions 238 x 100 x 85mm)	W300 x D240 x H177.5 (Effective dimensions 238 x 190 x 85mm)
Internal (effective) capacity	8 (6.95) L	13 (11.5) L
External dimensions *²	W500 x D530 x H500mm (water bath height 330mm)	W502 x D603 x H500mm (water bath height 330mm)
Power source (50/60Hz)	AC115V 8A AC220V 4A	AC115V 11A AC220V 6A
Weight	~50kg	~55kg
Accessories	Bottom shelf 1 pc., lid, drain hose 0.5m 1pc., over flow hose 0.5m 1pc.
Price List	$ 5,170	$ 5,940

*1. Performance data tested at RT20°C, no load, rated power 50Hz, performance might vary in different conditions
*2. Projections not included
Note: Refrigerator turns OFF when setting temperature higher than 40.1°C.
