Yamato BBL Series Constant Low Temperature Water Baths

https://www.yamato-usa.com/web/image/product.template/29/image_1920?unique=43fe9c9

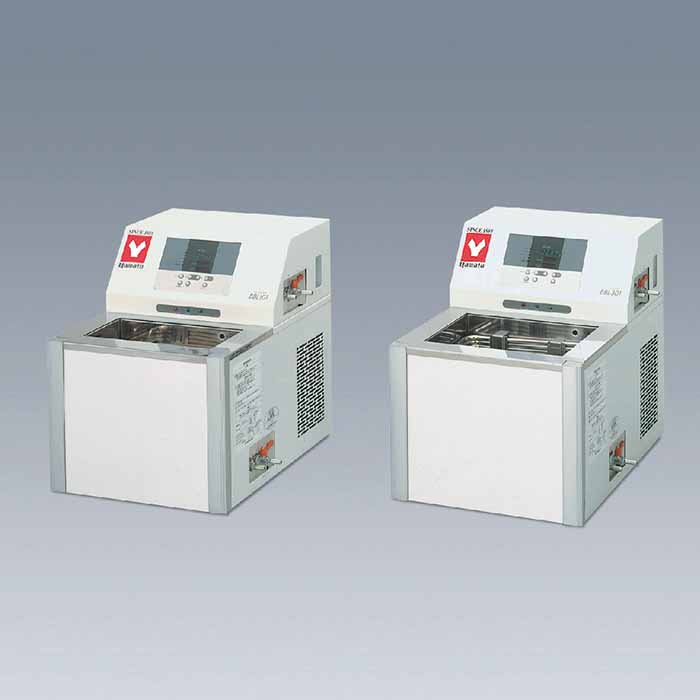

Benchtop constant low temperature water bath at 8L/13L capacity with an operating temperature range of -10~80°C

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Yamato BBL Series Constant Low Temperature Water Baths?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

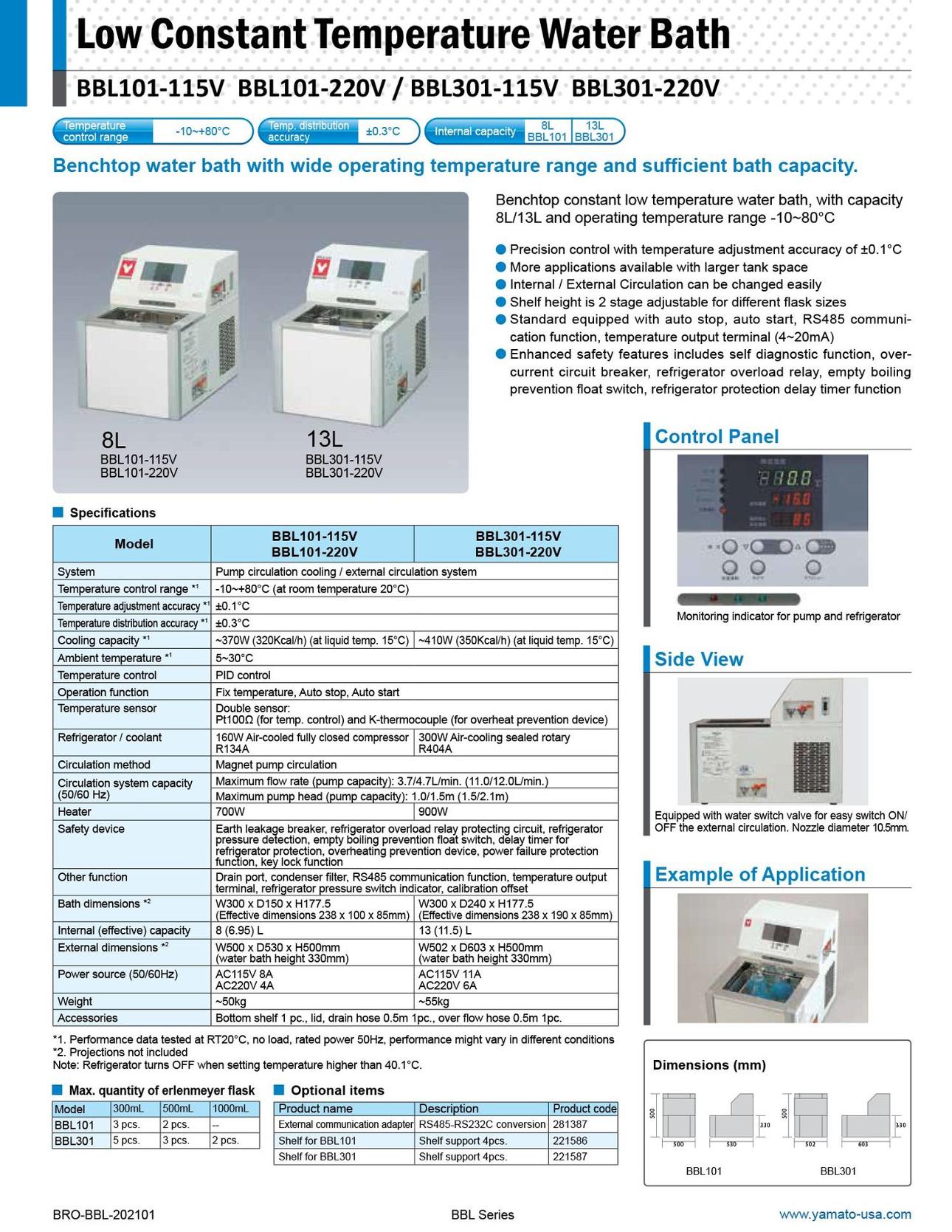

BBL101-115V BBL101-220V / BBL301-115V BBL301-220V


Performance and functions

  • Precision control with temperature adjustment accuracy of ±0.1°C
  • More applications available with larger tank space

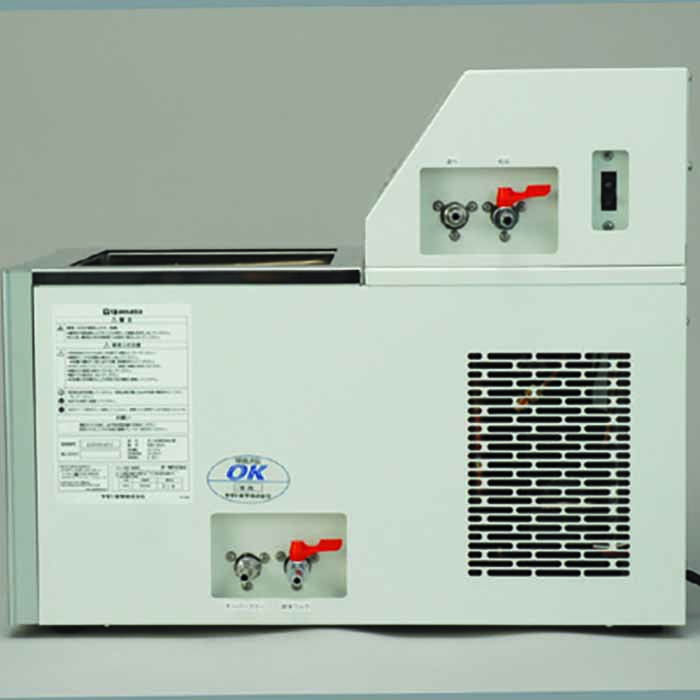

  • Internal / External Circulation can be changed easily

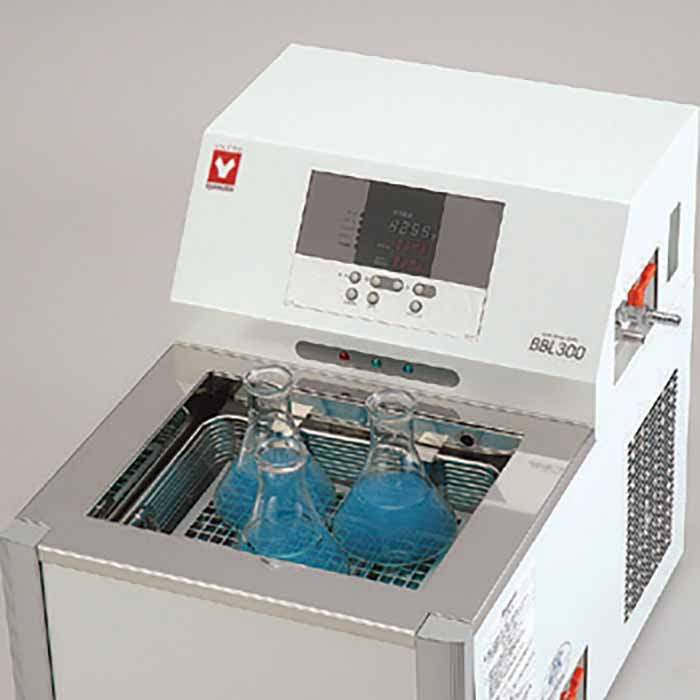

  • Shelf height is 2 stage adjustable for different flask sizes

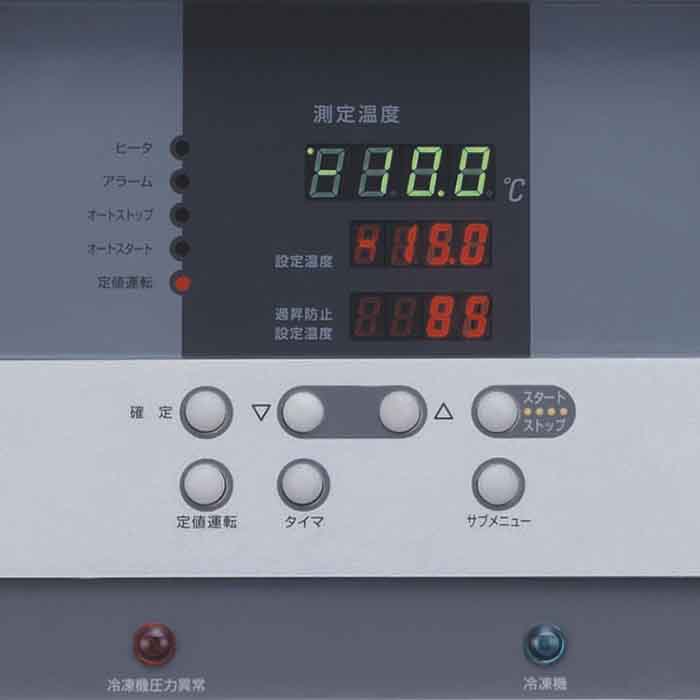

  • Standard equipped with auto stop, auto start, RS485 communication function, temperature output terminal (4~20mA)
  • Enhanced safety features includes self diagnostic function, over-current circuit breaker, refrigerator overload relay, empty boiling prevention float switch, refrigerator protection delay timer function
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

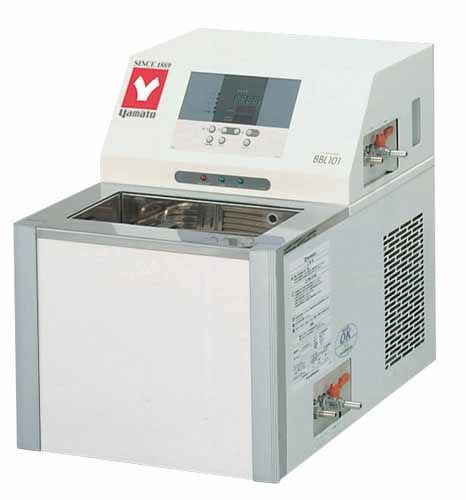

Model BBL101-115V
BBL101-220V		 BBL301-115V
BBL301-220V
System Pump circulation cooling / external circulation system
Temperature control range *¹ -10~+80°C (at room temperature 20°C)
Temperature adjustment accuracy *¹ ±0.1°C
Temperature distribution accuracy *¹ ±0.3°C
Cooling capacity *¹ ~370W (320Kcal/h) (at liquid temp. 15°C) ~410W (350Kcal/h) (at liquid temp. 15°C)
Ambient temperature *¹ 5~30°C
Temperature control PID control
Operation function Fix temperature, Auto stop, Auto start
Temperature sensor Double sensor: Pt100Ω (for temp. control) and K-thermocouple (for overheat prevention device)
Refrigerator / coolant 160W Air-cooled fully closed compressor R134A 300W Air-cooling sealed rotary R404A
Circulation method Magnet pump circulation
Circulation system capacity (50/60 Hz) Maximum flow rate (pump capacity): 3.7/4.7L/min. (11.0/12.0L/min.)
Maximum pump head (pump capacity): 1.0/1.5m (1.5/2.1m)
Heater 700W 900W
Safety device Earth leakage breaker, refrigerator overload relay protecting circuit, refrigerator pressure detection, empty boiling prevention float switch, delay timer for refrigerator protection, overheating prevention device, power failure protection function, key lock function
Other function Drain port, condenser filter, RS485 communication function, temperature output terminal, refrigerator pressure switch indicator, calibration offset
Bath dimensions *² W300 x D150 x H177.5
(Effective dimensions 238 x 100 x 85mm)		 W300 x D240 x H177.5
(Effective dimensions 238 x 190 x 85mm)
Internal (effective) capacity 8 (6.95) L 13 (11.5) L
External dimensions *² W500 x D530 x H500mm
(water bath height 330mm)		 W502 x D603 x H500mm
(water bath height 330mm)
Power source (50/60Hz) AC115V 8A
AC220V 4A		 AC115V 11A
AC220V 6A
Weight ~50kg ~55kg
Accessories Bottom shelf 1 pc., lid, drain hose 0.5m 1pc., over flow hose 0.5m 1pc.
Price List $ 5,170 $ 5,940


*1. Performance data tested at RT20°C, no load, rated power 50Hz, performance might vary in different conditions
*2. Projections not included
Note: Refrigerator turns OFF when setting temperature higher than 40.1°C.

Click on the links below to download the associated PDFs.

Bath Overview

BBL101/301 Water Bath Catalog

Lab Bath Buyer’s Guide

To download Operational Manual, visit our Technical Support Center
