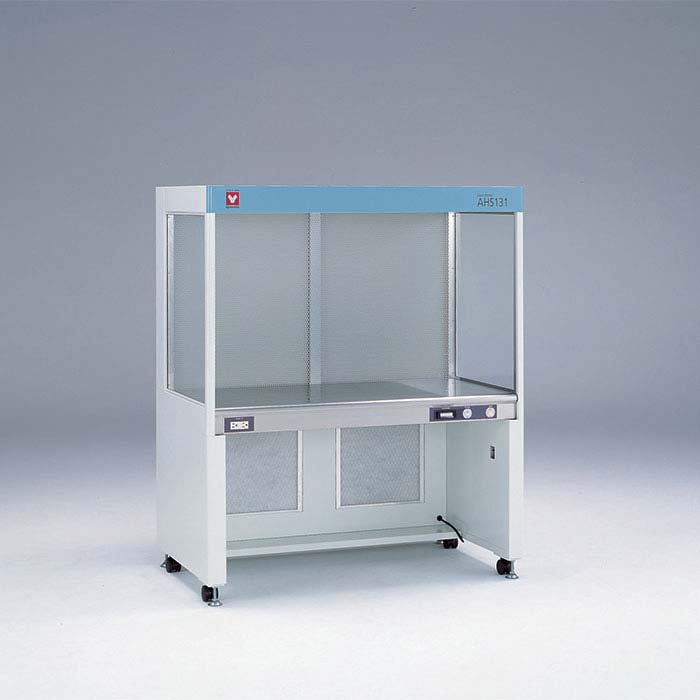

Yamato AHS Series Horizontal Airflow Clean Benches

Industrial clean bench with horizontal airflow

$ 1.00 1.0 USD $ 1.00

Not Available For Sale

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us
Yamato AHS Series Horizontal Airflow Clean Benches
https://www.yamato-usa.com/web/image/product.template/94/image_1920?unique=fe871bd

Features

  • Horizontal airflow: air enters the system from behind the filter and is forced in a back-to-front direction across the work surface
  • No front sash ensuring a spacious work space
  • Wind velocity can be adjusted with optional wind velocity controller
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model AHS101MC
AHS101HC		 AHS131MC
AHS131HC		 AHS161MC
AHS161HC		 AHS191MC
AHS191HC
Air flow direction Horizontal
Cleanliness Class 100
Blow-off air speed (m/sec) ~0.40 at early stage, ~0.20 final
Illuminance (lx) 1000 (in the center of working face)
Load bearing of working face 50kg (static load)
Air volume (m³/min) ~16
~20		 ~22
~27		 ~27
~33		 ~32
~39
Exterior material Cold roll steel sheet (chemical-resistant coating), white
Interior material Stainless steel (SUS304)
Working surface Stainless steel (SUS304), wire drawing processing
HEPA Filter (mm) 915×760×65/1pc
915×915×65/1pc		 610×760×65/2pcs
610×915×65/2pcs		 760×760×65/2pcs
760×915×65/2pcs		 915×760×65/2pcs
915×915×65/2pcs
0.3µm DOP scan test 99.99 % or more
Front filter (mm) 400×400×15 / 1pc. 400×400×15 / 2pcs. 400×400×15 / 2pcs. 400×400×15 / 2pcs.
Socket AC220V or AC115V 5A 2 outlets with grounding wire 2 (total capacity is 5A)
Flourescent lamp 32W x 4pcs. 32W x 4pcs. 40W x 4pcs. 40W x 4pcs.
Blower (single phase) 150W×1 120W×2 120W×2 150W×2
Working surface level adjustment Using adjusting foot (-18~+40mm)
Display of pressure difference Differential pressure gauge
Power source Single phase AC220V/15A 1 circuit (can be changed to AC115V/15A 1 circuit)
Working space height (mm) 720
875		 720
875		 720
875		 720
875
External dimension (mm) W980 x D770 W1300 x D770 W1600 x D770 W1910 x D770
Main unit height (mm) 1570
1725		 1570
1725		 1570
1725		 1570
1725
Weight (kg) ~180
~190		 ~220
~230		 ~250
~260		 ~290
~310
Accessories Fixing fittings of adjusting foot x 4
Optional item Air velocity controller: displays blow-off air speed and with variable air speed device


*Ambient temperature and humidity conditions: temperature 5°C ~35°C, humidity less than 85% RH.

Click on the links below to download the associated PDFs.

AHS Series Catalog

To download Operational Manual, visit our Technical Support Center
