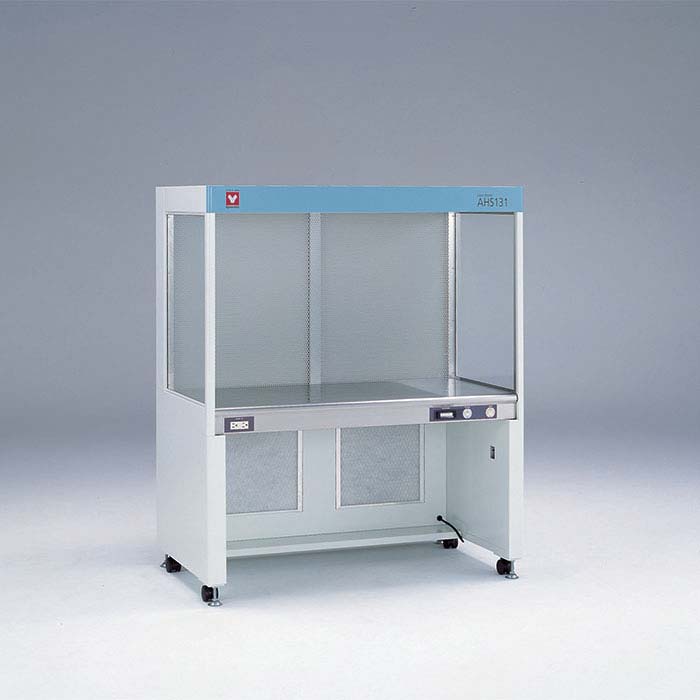

Yamato AHS Series Horizontal Airflow Clean Benches

Industrial clean bench with horizontal airflow

Model
- AHS101MC
- AHS101HC
- AHS131MC
- AHS131HC
- AHS161MC
- AHS161HC
- AHS191MC
- AHS191HC

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Interested In Our Yamato AHS Series Horizontal Airflow Clean Benches?

Find out if this model is suitable for your application.

Send me a quote

Features

Horizontal airflow: air enters the system from behind the filter and is forced in a back-to-front direction across the work surface
No front sash ensuring a spacious work space
Wind velocity can be adjusted with optional wind velocity controller

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	AHS101MC AHS101HC	AHS131MC AHS131HC	AHS161MC AHS161HC	AHS191MC AHS191HC
Air flow direction	Horizontal
Cleanliness	Class 100
Blow-off air speed (m/sec)	~0.40 at early stage, ~0.20 final
Illuminance (lx)	1000 (in the center of working face)
Load bearing of working face	50kg (static load)
Air volume (m³/min)	~16 ~20	~22 ~27	~27 ~33	~32 ~39
Exterior material	Cold roll steel sheet (chemical-resistant coating), white
Interior material	Stainless steel (SUS304)
Working surface	Stainless steel (SUS304), wire drawing processing
HEPA Filter (mm)	915×760×65/1pc 915×915×65/1pc	610×760×65/2pcs 610×915×65/2pcs	760×760×65/2pcs 760×915×65/2pcs	915×760×65/2pcs 915×915×65/2pcs
0.3µm DOP scan test 99.99 % or more
Front filter (mm)	400×400×15 / 1pc.	400×400×15 / 2pcs.	400×400×15 / 2pcs.	400×400×15 / 2pcs.
Socket	AC220V or AC115V 5A 2 outlets with grounding wire 2 (total capacity is 5A)
Flourescent lamp	32W x 4pcs.	32W x 4pcs.	40W x 4pcs.	40W x 4pcs.
Blower (single phase)	150W×1	120W×2	120W×2	150W×2
Working surface level adjustment	Using adjusting foot (-18~+40mm)
Display of pressure difference	Differential pressure gauge
Power source	Single phase AC220V/15A 1 circuit (can be changed to AC115V/15A 1 circuit)
Working space height (mm)	720 875	720 875	720 875	720 875
External dimension (mm)	W980 x D770	W1300 x D770	W1600 x D770	W1910 x D770
Main unit height (mm)	1570 1725	1570 1725	1570 1725	1570 1725
Weight (kg)	~180 ~190	~220 ~230	~250 ~260	~290 ~310
Accessories	Fixing fittings of adjusting foot x 4
Optional item	Air velocity controller: displays blow-off air speed and with variable air speed device

Model	AHS101MC AHS101HC	AHS131MC AHS131HC	AHS161MC AHS161HC	AHS191MC AHS191HC
Air flow direction	Horizontal
Cleanliness	Class 100
Blow-off air speed (m/sec)	~0.40 at early stage, ~0.20 final
Illuminance (lx)	1000 (in the center of working face)
Load bearing of working face	50kg (static load)
Air volume (m³/min)	~16 ~20	~22 ~27	~27 ~33	~32 ~39
Exterior material	Cold roll steel sheet (chemical-resistant coating), white
Interior material	Stainless steel (SUS304)
Working surface	Stainless steel (SUS304), wire drawing processing
HEPA Filter (mm)	915×760×65/1pc 915×915×65/1pc	610×760×65/2pcs 610×915×65/2pcs	760×760×65/2pcs 760×915×65/2pcs	915×760×65/2pcs 915×915×65/2pcs
HEPA Filter (mm)	0.3µm DOP scan test 99.99 % or more
Front filter (mm)	400×400×15 / 1pc.	400×400×15 / 2pcs.	400×400×15 / 2pcs.	400×400×15 / 2pcs.
Socket	AC220V or AC115V 5A 2 outlets with grounding wire 2 (total capacity is 5A)
Flourescent lamp	32W x 4pcs.	32W x 4pcs.	40W x 4pcs.	40W x 4pcs.
Blower (single phase)	150W×1	120W×2	120W×2	150W×2
Working surface level adjustment	Using adjusting foot (-18~+40mm)
Display of pressure difference	Differential pressure gauge
Power source	Single phase AC220V/15A 1 circuit (can be changed to AC115V/15A 1 circuit)
Working space height (mm)	720 875	720 875	720 875	720 875
External dimension (mm)	W980 x D770	W1300 x D770	W1600 x D770	W1910 x D770
Main unit height (mm)	1570 1725	1570 1725	1570 1725	1570 1725
Weight (kg)	~180 ~190	~220 ~230	~250 ~260	~290 ~310
Accessories	Fixing fittings of adjusting foot x 4
Optional item	Air velocity controller: displays blow-off air speed and with variable air speed device

*Ambient temperature and humidity conditions: temperature 5°C ~35°C, humidity less than 85% RH.

Click on the links below to download the associated PDFs.

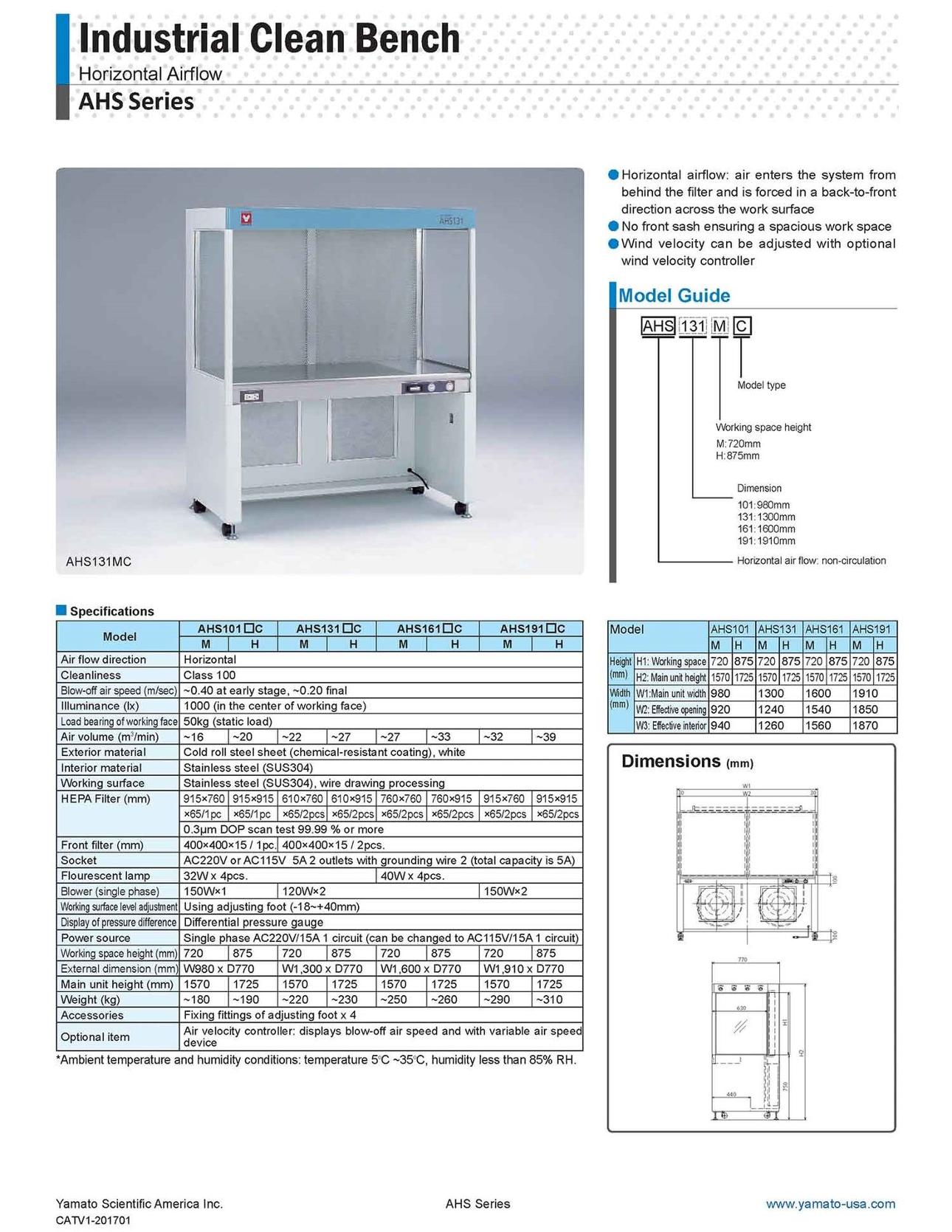

AHS Series Catalog

To download Operational Manual, visit our Technical Support Center
