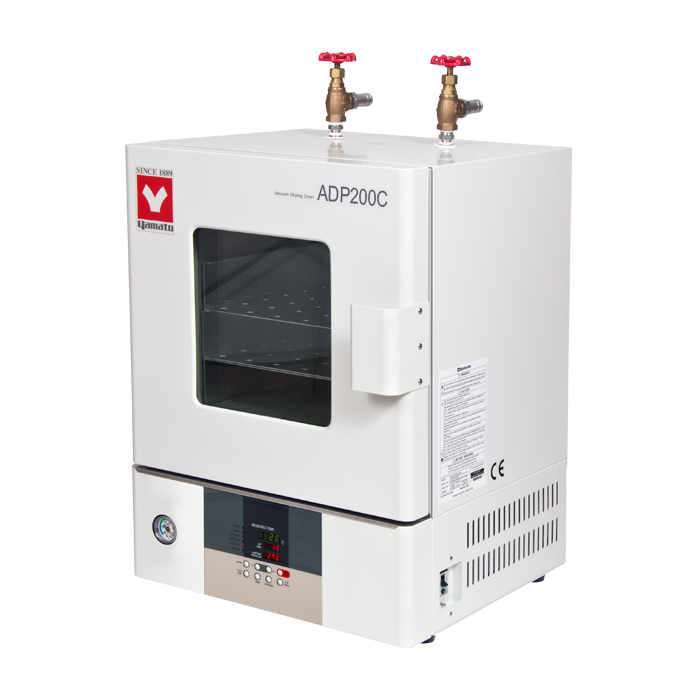

Yamato ADP Series Vacuum Drying Ovens

https://www.yamato-usa.com/web/image/product.template/89/image_1920?unique=43fe9c9

Standard small size benchtop vacuum drying ovens with enhanced safety features

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Yamato ADP Series Vacuum Drying Ovens?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

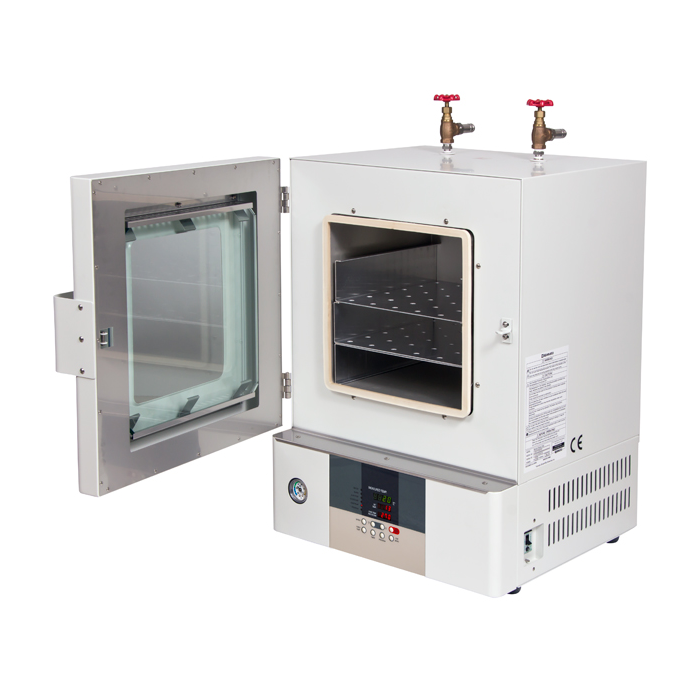

ADP200C/210C/300C/310C


​Performance and functions

  • Easy input of parameters and settings
  • Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations.
  • Self-diagnostic and overheating prevention functions
  • Silicon rubber door seal prevents air from leaking
  • Independent over heating prevention device for each circuit
  • Customizable with N₂ gas inlet and communication ports
  • Calibration off-set function
  • Easy maintenance

Safety features

Sensor trouble detection, SSR, short circuit detection, heater disconnecting detection, memory error, overheating and measurement temperature error.

Your choice of laboratory oven can have a big effect on your daily lab routines. Download Yamato’s Complete Guide To Buying The Perfect Lab Oven guide and discover how your everyday applications and facility requirements factor into choosing an oven that can provide the best results for your samples.

40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
Model ADP200C
ADP210C		 ADP300C
ADP310C

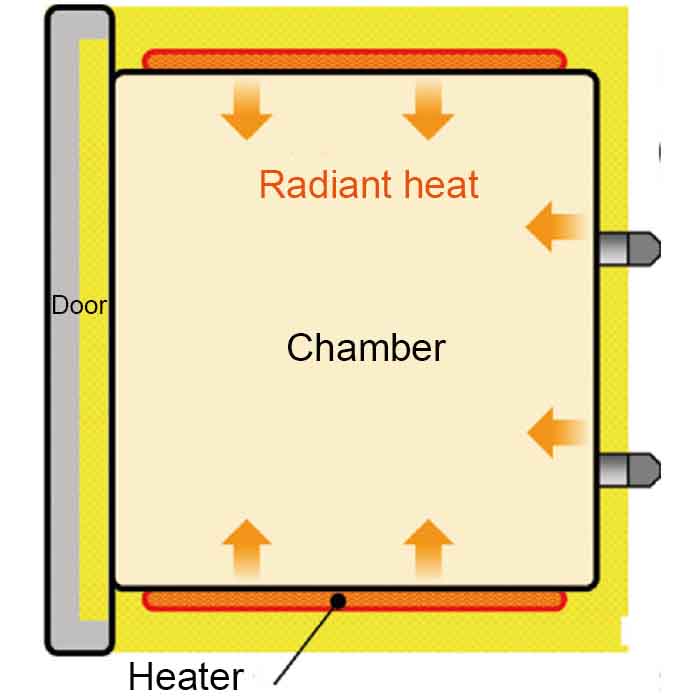

System Vacuum drying by decompressed chamber direct heating
Operating temp. range 40~240°C
Operating pressure range 101~0.1kPa (760~1 Torr)
Temp. control accuracy ±1.5°C (at 240°C)
Max. temp. reaching time ~70min. ~100min.
Interior material Stainless steel
Temp. control method PlD control by microprocessor
Sensor K-thermocouple
Temp. setting method Digital setting by ▲/▼ keys
Temp. display method Measurement temp.: Digital display by green LED / Setting temp.: Digital display by red LED
Timer 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. / Digital display
Heater Mica heater / 0.68kW Mica heater / 1.05kW
Heat insulating material Rock wool
Observation window Tempered glass (12 mm thickness) and polycarbonate resin plate
Vacuum gauge Bourdon tube type, 0~0.1 MPa (Gauge pressure)
Safety device Self diagnostic functions (Heater, Sensor, SSR short circuit, automatic overheat prevention function), over current electric leakage breaker, overheating prevention device
Internal dimensions WxDxH 200 x 250 x 200mm 300 x 300 x 300mm
External dimensions WxDxH 400 x 412 x 603mm 500 x 465 x 705mm
Internal capacity 10L 27L
Shelf loading ~15kg / pcs
Shelf rest step number 2 steps 3 steps
Shelf rest pitch 65mm 75mm
Vacuum port O.D.18mm
Power source AC115V 6A (with plug)
AC220V 3.5A (no plug, round terminal)		 AC115V 9.5A (with plug)
AC220V 5A (no plug, round terminal)
Weight ~30kg ~55kg
Included Accessories Shelf plate (Aluminum perforated metal) 2 pcs. Shelf plate (Aluminum perforated metal) 3 pcs.
List Price $ 3,730 $ 4,730





Click on the links below to download the associated PDFs.

Oven Overview

ADP Series Catalog

ADP Series Poster

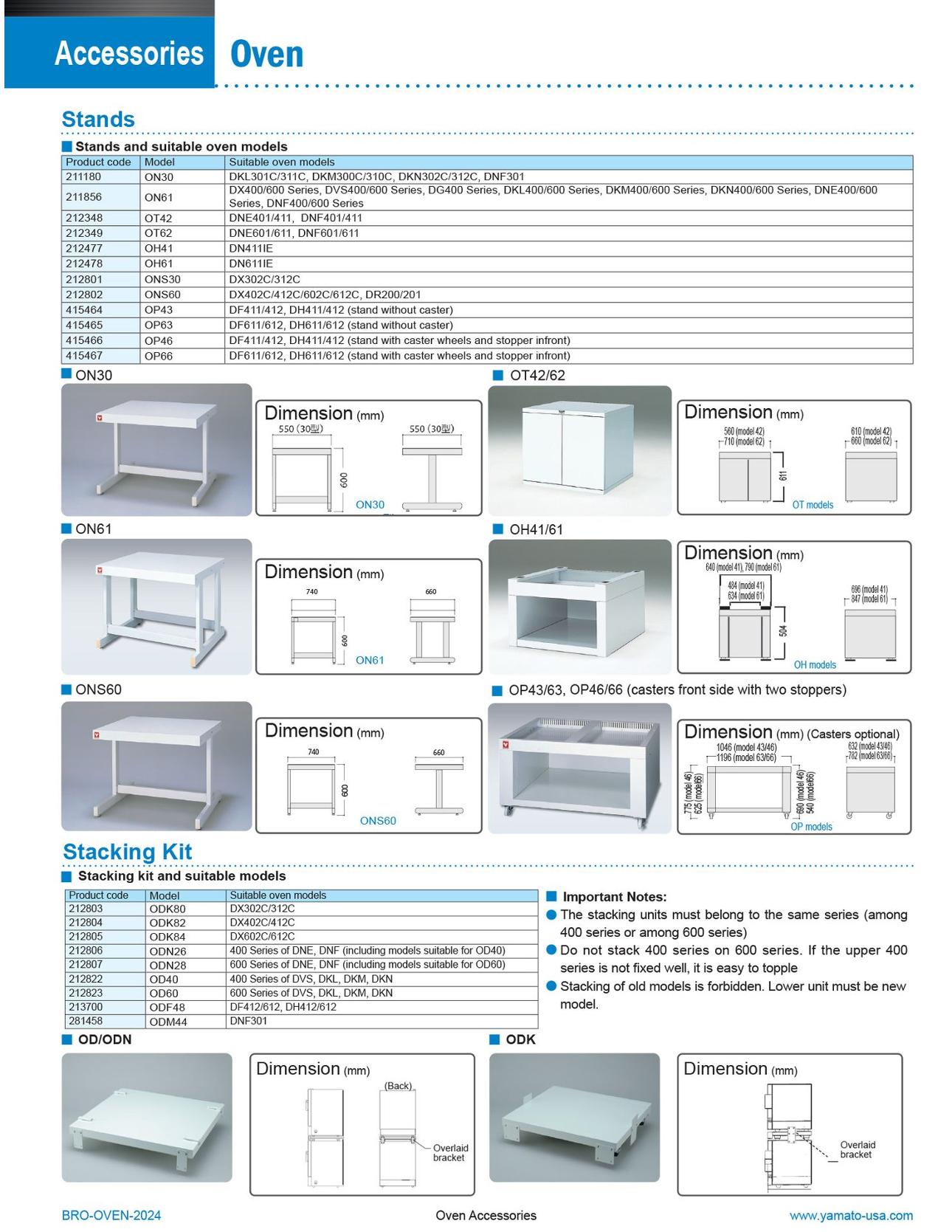

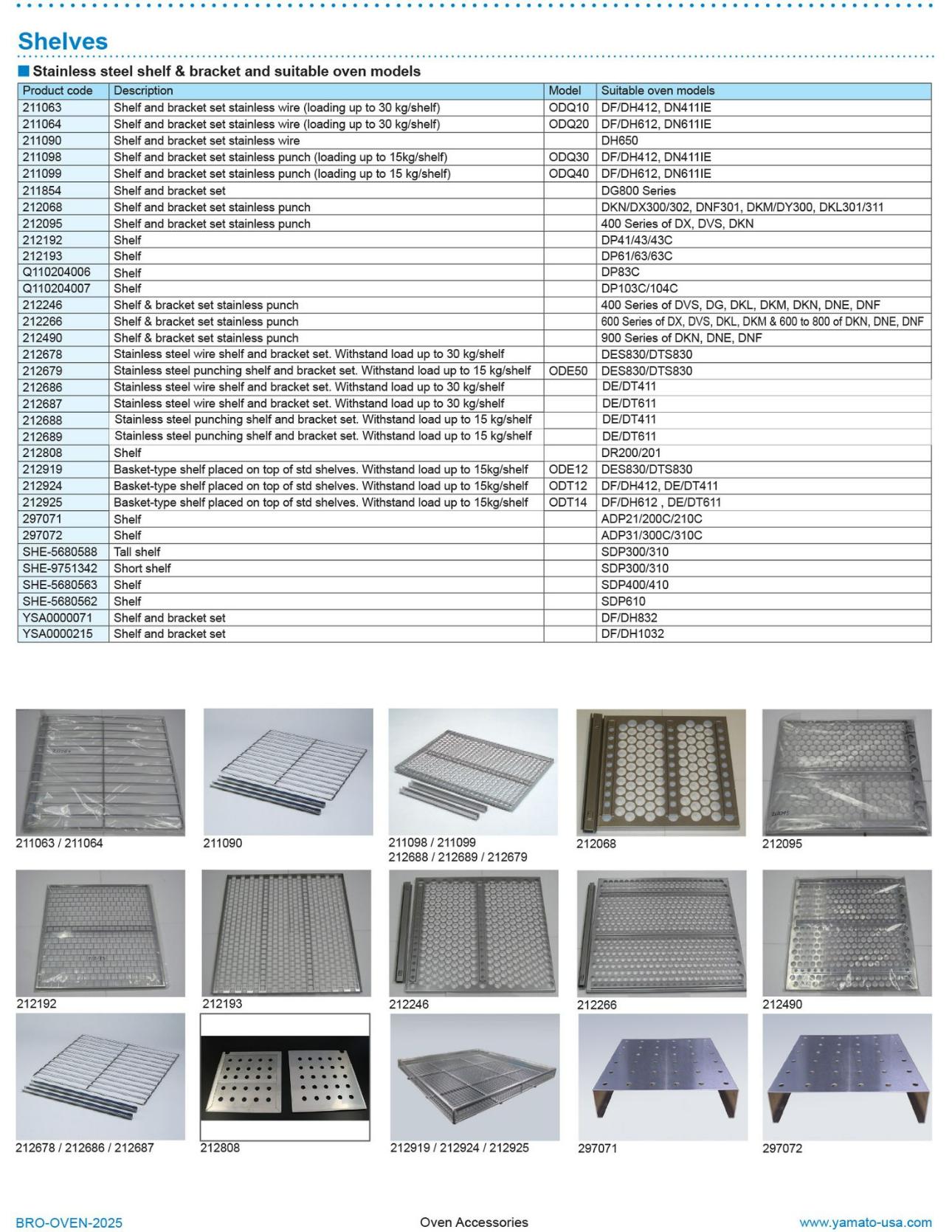

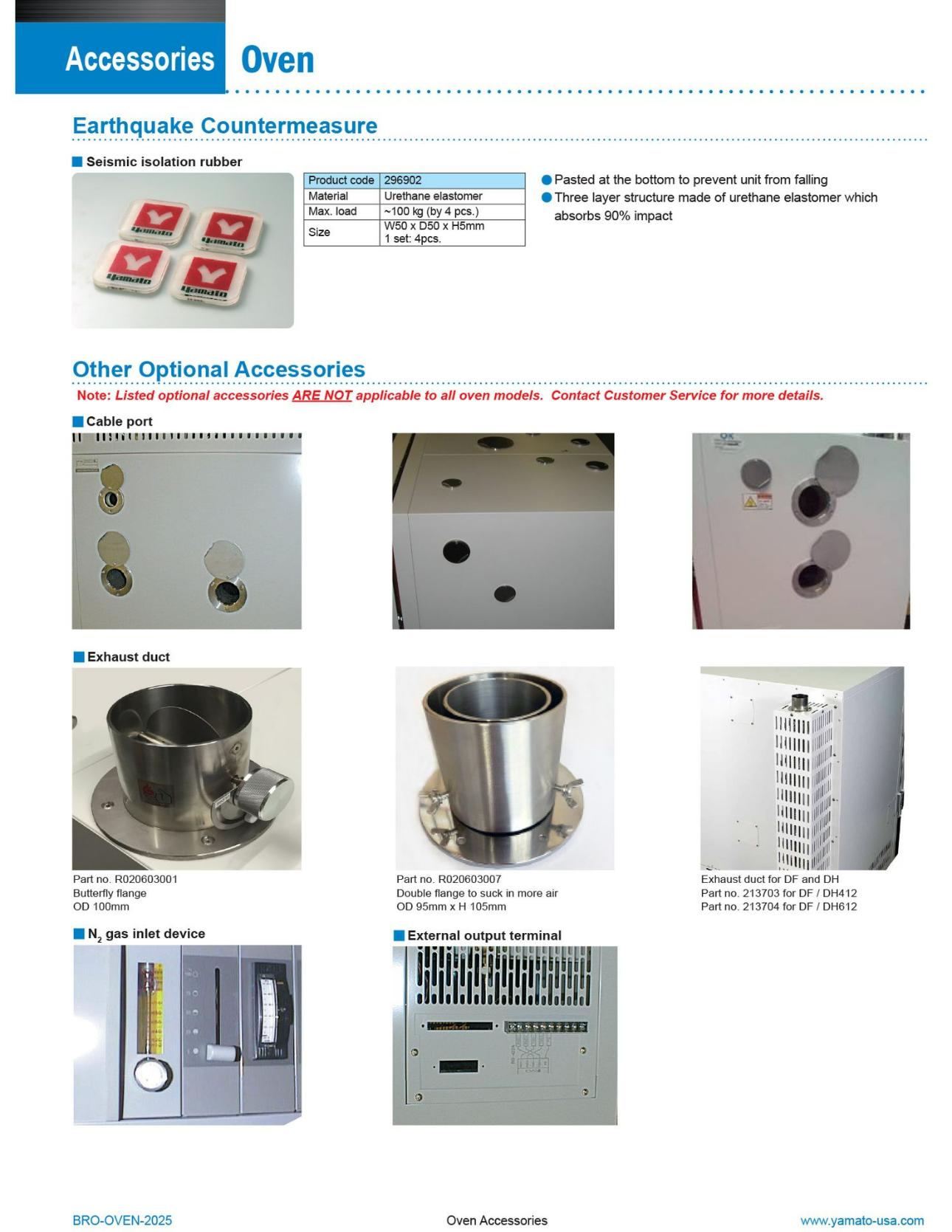

Oven Accessories

GLD Series Vacuum Pump Catalog​

NeoDry Dry Vacuum Pump

Lab Ovens Buyer's Guide

To download Operational Manual, visit our Technical Support Center
