VNP-32P

Automatic Nucleic Acids Extraction Instrument

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

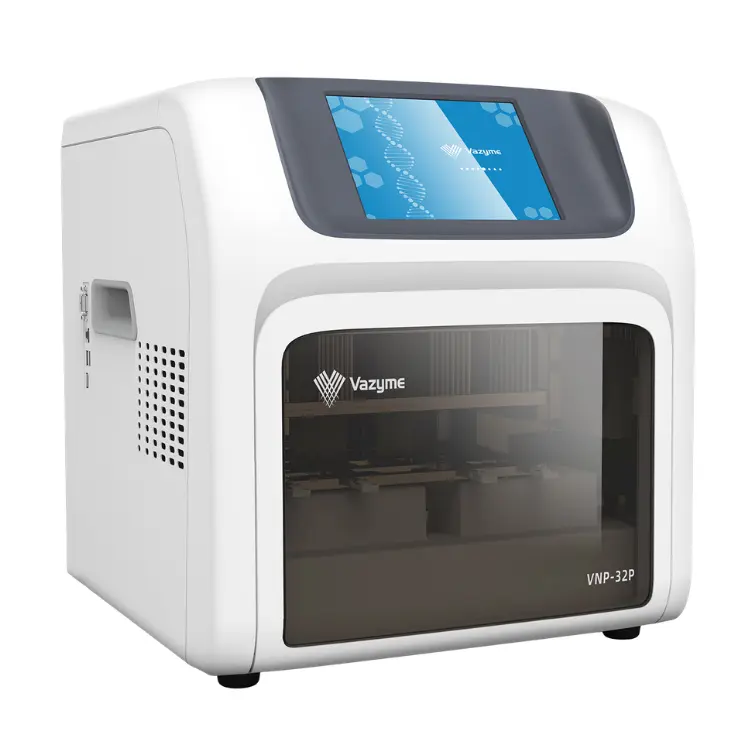

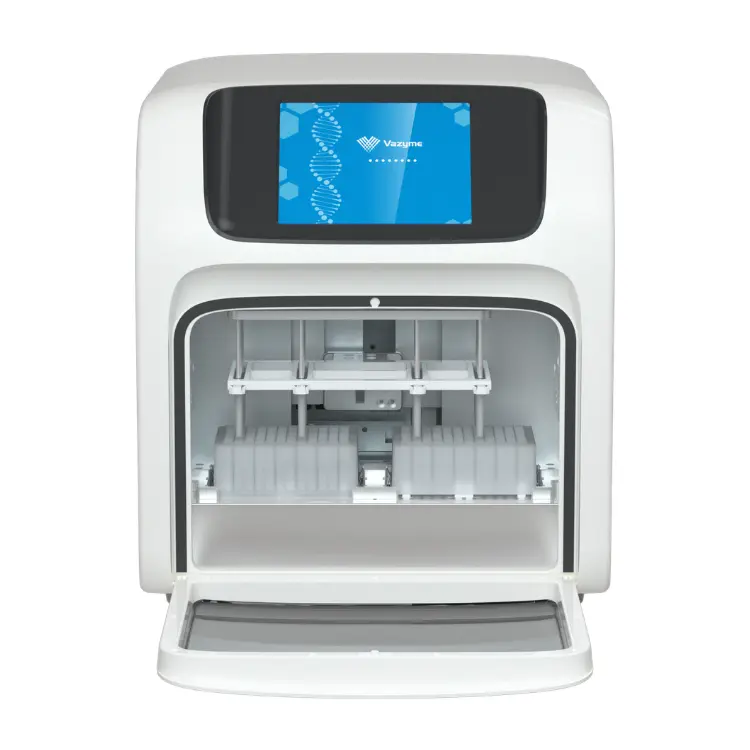

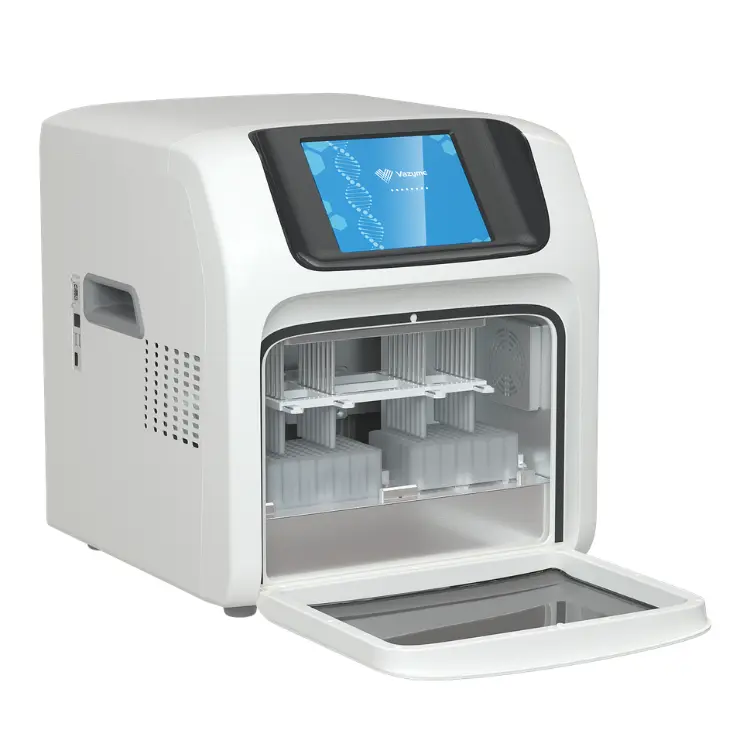

VNP-32P

VNP-32P is a high-throughput and high-precision nucleic acid extractor used in pair with prepackaged extraction reagents based on silica-coated superparamagnetic beads to extract and purify nucleic acids from the blood, tissue, cells, body fluids, bacteria, viruses, and many other biological samples. It purifies and enriches nucleic acids by utilizing magnetic rods to capture, transfer, and release magnetic beads. With highly automated, fast, and simple workflow, the product is ideal for a wide range of applications in molecular diagnosis and animal disease detection.

Features

Simple and efficient

Just add the sample and finish fully automatic extraction; One-button start to run with preset program.

High extraction efficiency

Recovery rate is higher than 95% with strong magnetic force adsorption of magnetic beads and permanent magnet material..

Power failure protection function

After the instrument is powered on again, it can continue to run, avoiding sample waste caused by power failure during the process.

Highly effective anti-contamination

Reduce contamination risk with built-in UV moduel and filtered fan system.

Parameters

Principle	Magnetic Beads Method
Sample throughput	1 ~ 32
Use kit	96 deep well plate
Processing volume /μL	20 ~ 1000
Difference between purification repeats	CV ≤ 5%
Heating temperature	Room temperature ~ 120°C
Temperature accuracy	±1°C
Operation interface	8-inch color touch screen, can be connected to external mouse
Internal procedures	500 programs can be stored
Program management	Add, edit, save as, delete, program mode
Instrument interface	3 type A USB, 1 Ethernet port, 1 DB9 debug interface
Network	Wi-Fi function
Disinfection	UV disinfection
Maximum input power	500 W
Dimensions (W×D×H)	412 mm×410 mm×430 mm
Weight (kg)	30 kg

Storage

Store at 15 ~ 25°C and transport at room temperature.

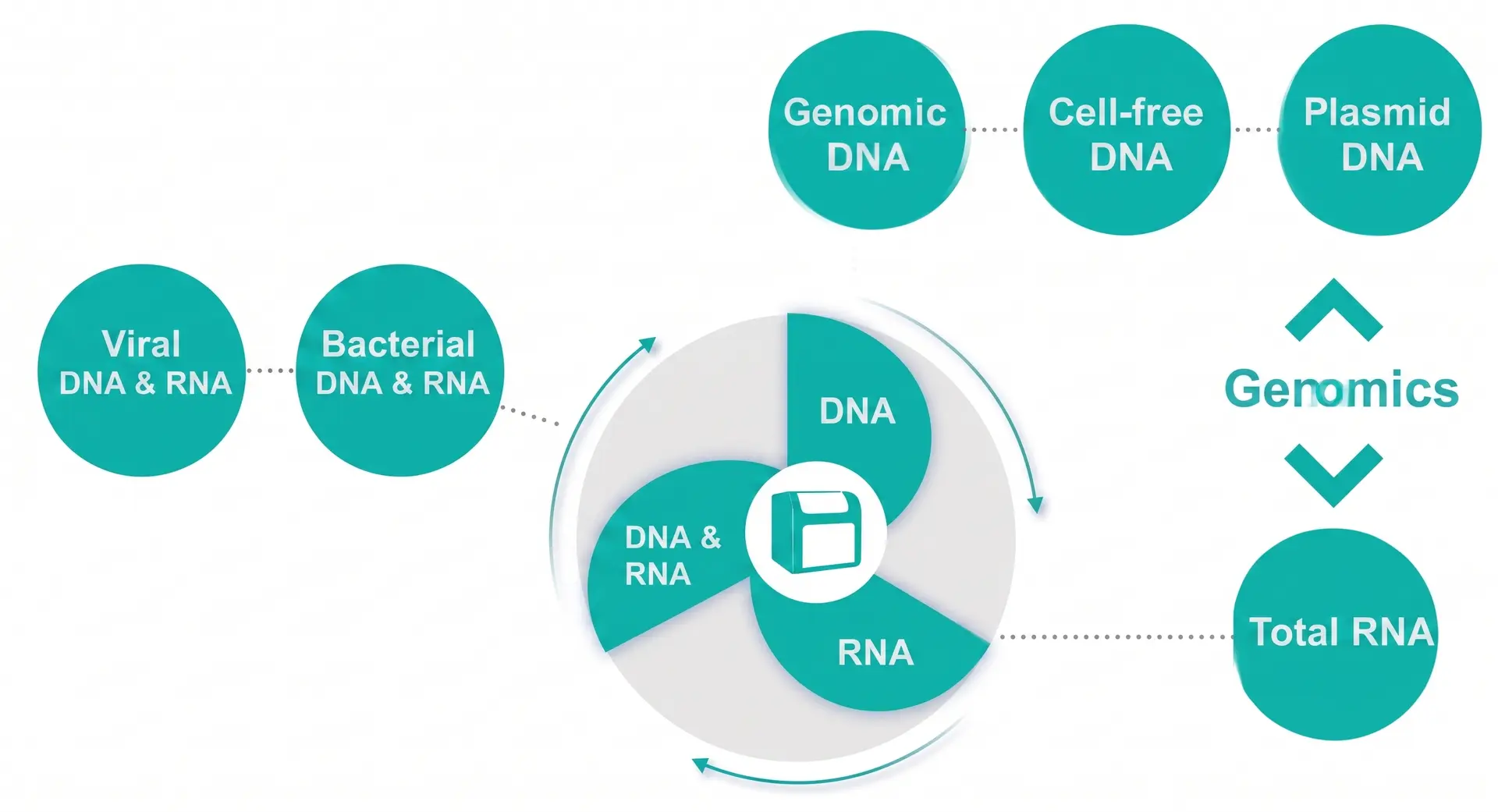

Workflow

Specification

Automatic Nucleic Acids

Extraction Instrument

Full-automatic Nucleic

Acids Extraction Instrument

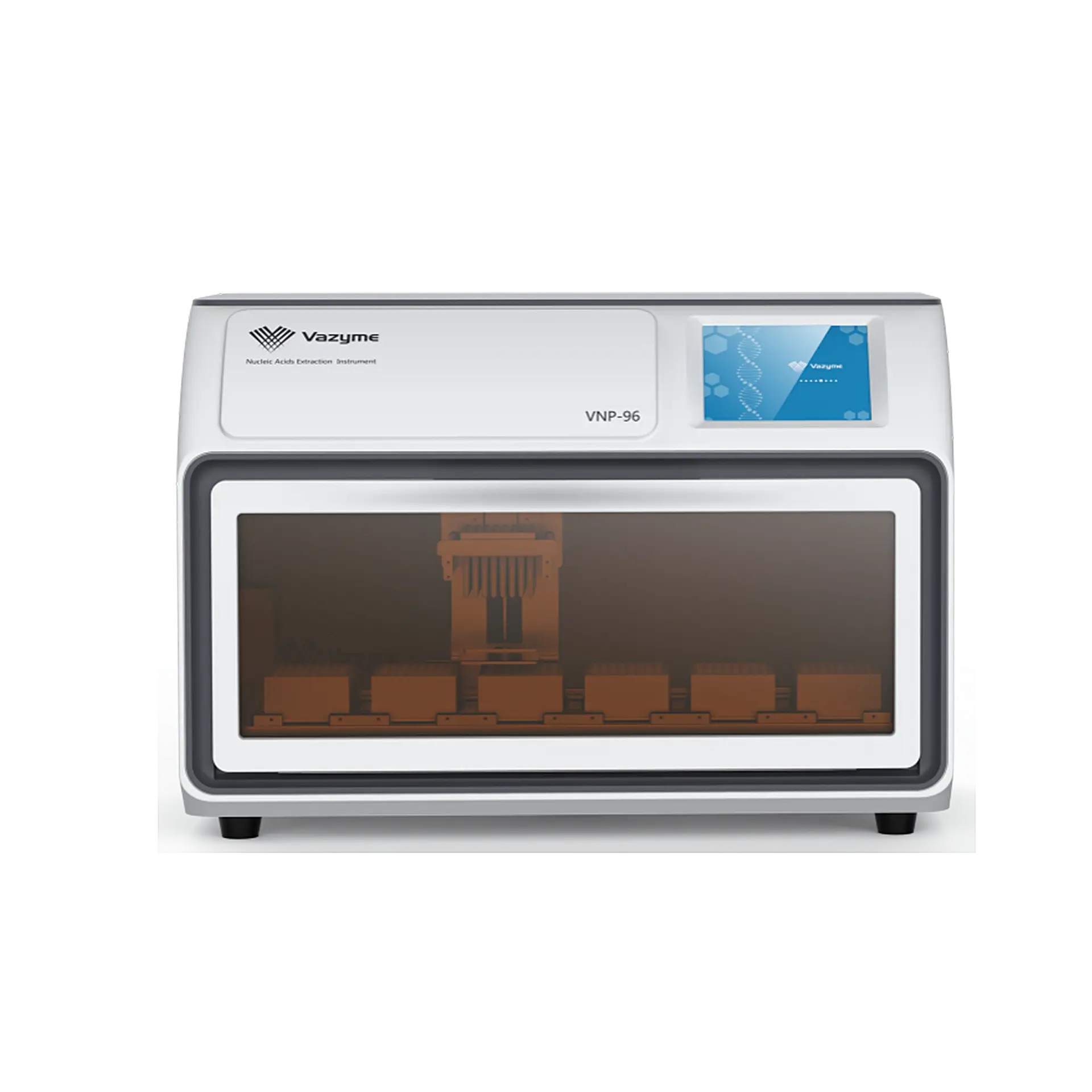

Cat#	VNP-32P	VNP-96P
Throughput	1 ~ 32	96
Test Principle	Magnetic Beads Method
Volume	96-Well Plate: 20 μl ~ 1000 μl
Heating Temperature	Room Temperature ~ 120°C
Display	Color touch screen can be connected to external mouse
Program Management	Add, Edit, Save as, Delete, Program Mode
Disinfection	UV Disinfection
Maximum Input Power	500 W
Size	412 mm × 410 mm × 430 mm	750 mm × 495 mm × 525 mm
