    PANDA Automated Liquid Handling Workstation
    https://www.yamato-usa.com/web/image/product.template/14408/image_1920?unique=f9de715

    PANDA Automated Liquid Handling Workstation

    VNL-96P

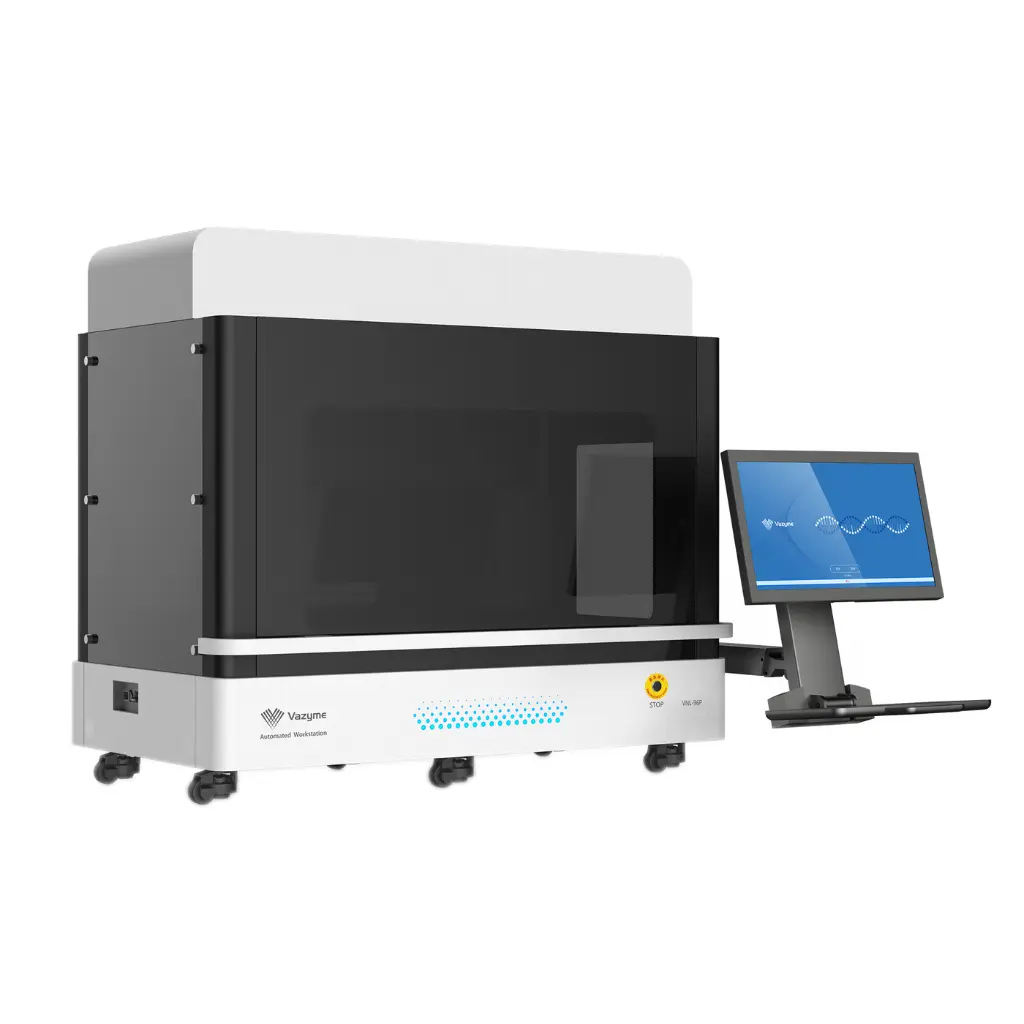

    The Vazyme PANDA is a highly efficient, fully automated liquid handling workstation designed to support a wide range of applications. It has features such as easy operation, high throughput, high precision, cost-effectiveness, and high adaptability. Equipped with a 96-channel pipettor, it can run routine high-throughput library preparation workflows and laboratory liquid handling processes. With a stacking system, it enables fully automated operation design and long-term unmanned operation. PANDA is equipped with an Inheco On Deck Thermo Cycler (ODTC) and Inheco thermoshaker module to achieve ideal temperature control. Additionally, it can explore multiple application scenarios and design custom scripts through a visual script editing system.

    Features

    Labor and time saving

    Walk-away operation guarantees less hands-on time to accelerate experimental process.

    High precision and accuracy

    With Inheco’s advanced ODTC and thermoshaker system and ready-to-use scripts, high accuracy and precision in hardware and software are ensured every time.

    Highly matched with qualified reagents and consumables

    Fully compatible with Vazyme reagents and consumables, significantly reducing on-site setup time for a quick start.

    Parameters

    Indicator Parameters
    Size (L×W×H) 1224×753×1111 mm (Excluding wall-mounted computer)
    Weight 274 kg
    Plate capacity 22
    Throughput 96
    Principle of pipetting Air displacement
    Range of pipetting 2-200 µl
    Pipetting accuracy 2 µl: <5%  5 µl: <2%

    50 µl: <1%  150 µl: <1%
    Pipetting precision 2 µl: <±10%  5 µl: <±2.5%

    50 µl: <±1.5%  150 µl: <±1%
    Ultraviolet disinfection system ≥100000 µW.s/cm²
    PCR instrument temperature control Temperature control: 4-99°C (≤±0.5°C);

    Heated lid: 30-115°C.
    Independent temperature control module 2 sets; 4-95°C
    Oscillation temperature control module 4-70°C
    Stacking system 3 PCR plates
    Cantilever computer Intel® Celeron® J6413, Memory: 4GB; Solid-state drive: 128GB.

    Storage

    Store at 15 ~ 25°C and transport at room temperature.
