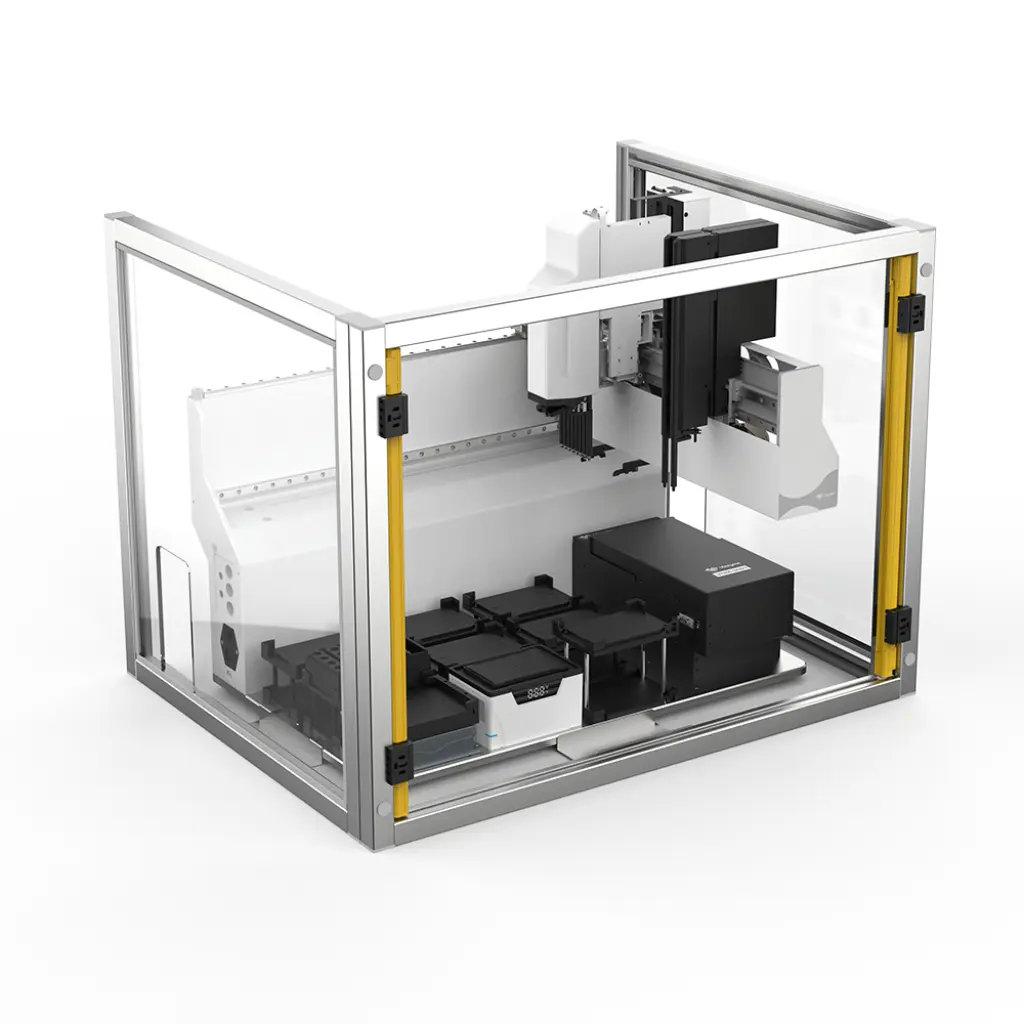

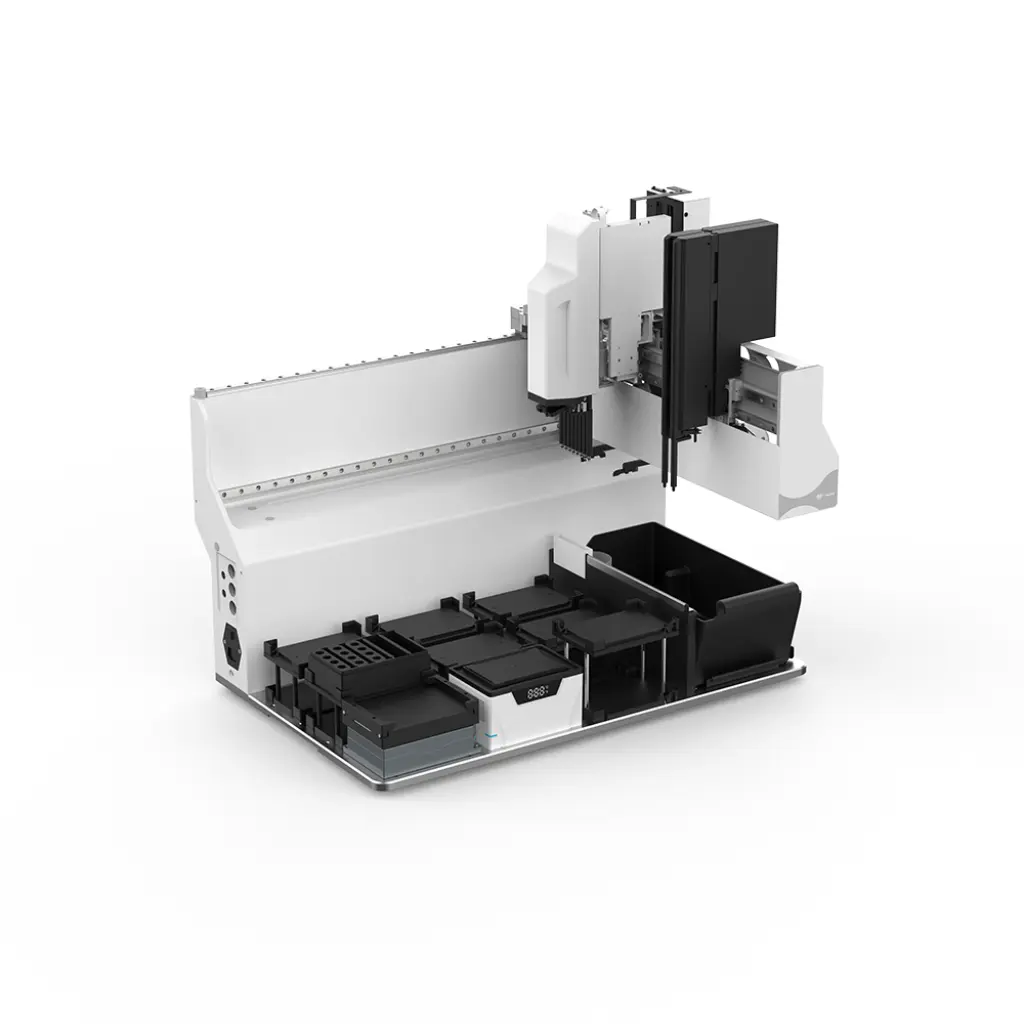

    PANDA Mini Liquid Handling Workstation

    VNL-10P

    Equipped with a fixed 8-channel pipettor and two flexible-channel pipettors, the PANDA Mini supports sample normalization and pooling in the full automation workflow, acting as a bridge between extraction, library preparation, and sequencing. It is designed to reliably handle routine high-throughput workflows and  liquid handling tasks, reducing human error, accelerating experimental time, and simplifying operations through touchscreen interface.

    Features

    Do more in one run

    35-second fast quantification and 35-minute rapid sample preparation and pooling.


    Hands-off automation

    Eliminate manual workload, minimize human error, and ensure consistent results with automated pipetting.


    Lab-ready experience

    Touch-and-go control with a dedicated touchscreen for quick and easy operation in a compact size


    Flexible throughput

    Flexible batch sizing with a fixed 8-channel pipettor and two single-channel pipettors, supporting sample volumes from 1 to 96. Combined with a dual-pipetting system, this configuration reduces processing time by 50% and doubles overall efficiency.


    Fit into full Vazyme workflows

    From extraction to sequencing-ready libraries, seamlessly connect to the Vazyme ecosystem for smarter, more efficient sample prep.

    Parameters

    Parameter Sub-item Specification
    Size (W×D×H) 665 mm×525 mm×610 mm
    Weight 37 kg
    Power ~100-240 VAC, 50/60Hz
    Robotic Arm Configuration Fixed 8-channel Pipettor + 2 Flexible Pipettors
    Gripper Module
    Fluorometer (optional) Sample Type DNA, RNA
    Throughput 96 (Two Standard Samples Included)
    Accuracy DNA:
    0.5 ng/µl: ≤±20%; 5 ng/µl: ≤±8%; 20 ng/µl: ≤±5%     		RNA:
    5 ng/µl: ≤±20%; 50 ng/µl: ≤±10%; 500 ng/µl: ≤±6%
    Consistency DNA:
    0.5 ng/µl: ≤6%; 0.5 ng/µl: ≤4%; 20 ng/µl: ≤3%; 50 ng/µl: ≤2%     		RNA:
    5 ng/µl: ≤5%; 50 ng/µl: ≤3%; 500 ng/µl: ≤2%
    Plate Capacity 12 (or 9+Fluorometer)
    Pipetting Principle Air Replacement
    Pipetting Range 1-200 µL
    Liquid Sensing Pressure Sensing
    Pipetting Accuracy ±4%@5 µl; ±1%@200 µl
    Pipetting Precision (CV) ≤4%≤5 µl; ≤1%≤200 µl
    Robotic Arm Motion Accuracy ±0.1 mm

    Storage

    Store at 15 ~ 25°C and transport at room temperature.

    Frequently Asked Questions


    The main functions of PANDA Mini are concentration quantification and sample preparation, including normalization of sample concentration to a uniform level after extraction, as well as pooling of samples after library preparation. It enables quantification and normalization/pooling within approximately 60 minutes, significantly accelerating the experimental process.

    It supports a throughput of 1-96, meaning it can process up to 96 samples simultaneously.
