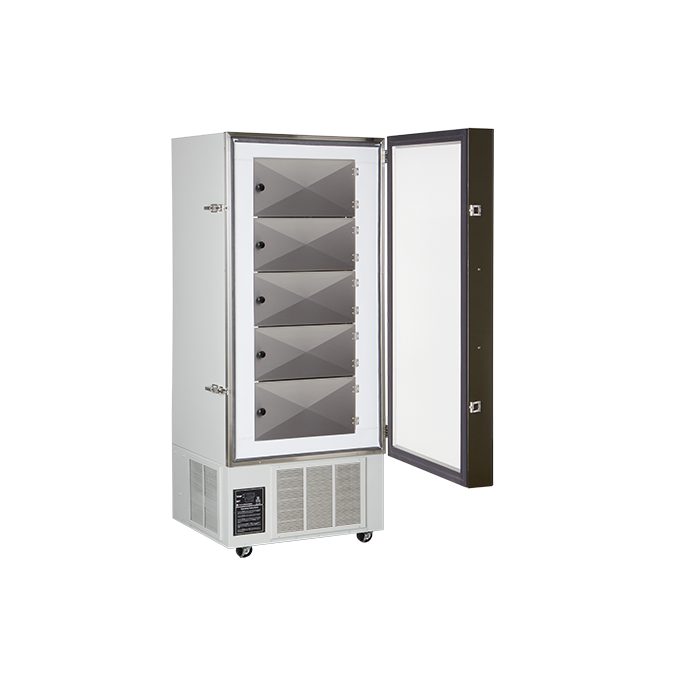

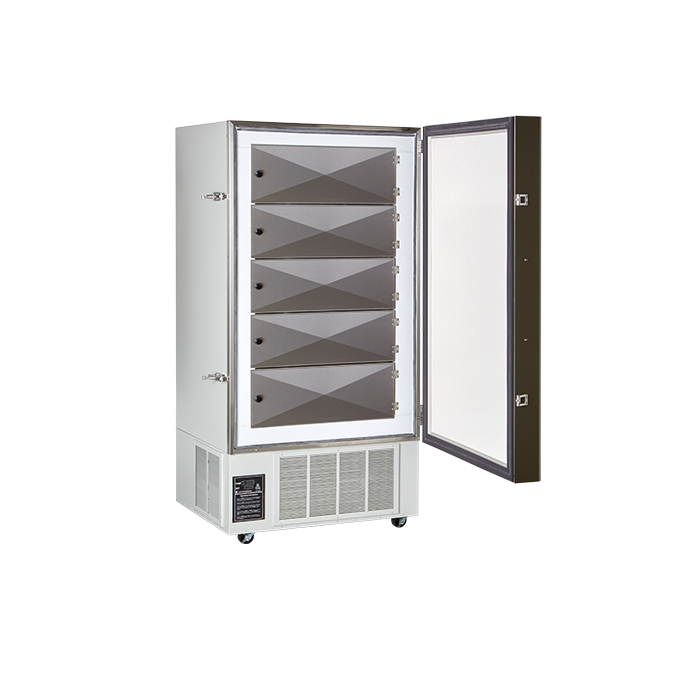

Ultra-Low ULF Series Vertical (Upright) Freezers

https://www.yamato-usa.com/web/image/product.template/44/image_1920?unique=43fe9c9

-40˚C to -85˚C

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Ultra-Low ULF Series Vertical (Upright) Freezers?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

Looking for Chest or Undercounter Freezers?

Features


2X Variable Speed Hermetic Compressors

Constant Flow
​
Coolant Free
​
2X Digital Displays

On-Demand Energy Savings
​
Alarm System
​
COVID-19 Vaccine Storage

2X Heavy Duty Fans

Reliable Cascade Refrigeration

CFC & HCFC free

Primary Uses

  • Clinics
  • Research
  • Small laboratories
  • Hospital rooms
  • Medical clinics

40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

COMMON SPECIFICATIONS OF VERTICAL (UPRIGHT STYLE) MODELS

Model ULF Series
Temperature control system Digital control displays set point and chamber temperature
Digital alarm system with relay Battery operated alarm system will emit an audible and visual signal when there is a mechanical or electrical failure. Alarm has over and under temperature setting, alarm
silencing switch, and battery test switch. Also provided is a relay for remote alarm hook-up.
Refrigeration system Cascade type - Two hermetic compressors.
CFC & HCFC free refrigerants
Construction Chamber is 14-ga. zinc coated galvanized steel.
Exterior is 16-ga. steel. Powder coated cool gray finish.
Electrical requirements 115V, 60 Hz, 1 phase
208V, 60 Hz, 1 phase
230V, 60 Hz, 1 phase
220V, 50 Hz, 1 phase
220V, 60 Hz, 1 phase
Optional accessories Chart recorder, CO2 and LN2 back-up system, Racks, Cold safety gloves


UNIQUE SPECIFICATIONS OF VERTICAL (UPRIGHT STYLE) MODELS

Model Capacity Rack Capacity Shelving Temp. Range Internal Dimensions External Dimensions List Price
ULF401U 370L / 13 cu. ft. 15 4 adjustable
(5 compartments)		 -40ºC to -85ºC 20” x 22” x 51.25
50 x 55 x 130 cm		 35" x 34.5" x 79.5"
88 x 87 x 201 cm		 $ 15,935
ULF501U 505L / 18 cu. ft. 20 4 adjustable
(5 compartments)		 -40ºC to -85ºC 23” x 26” x 51.25”
58 x 66 x 130		 40" x 36" x 79.5"
101 x 91 x 201 cm		 $ 16,455

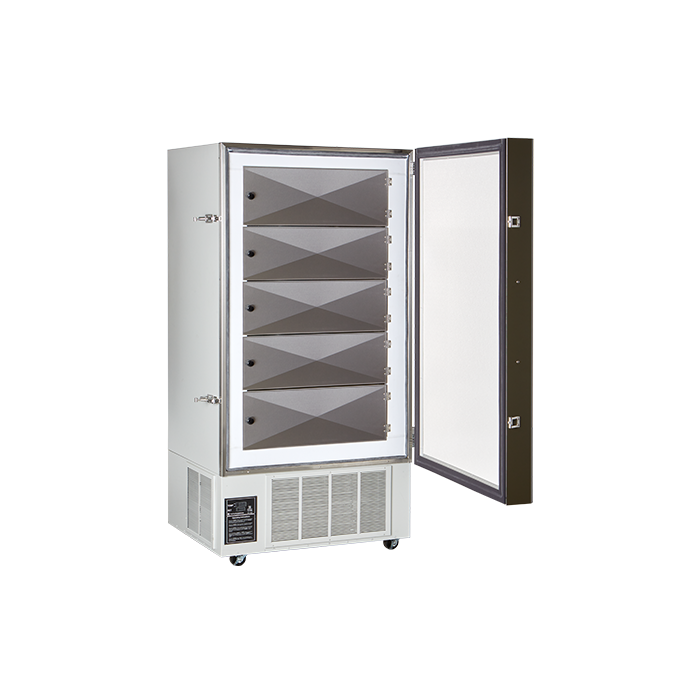

ULF601U 626L / 22 cu. ft. 25 4 adjustable
(5 compartments)		 -40ºC to -85ºC 28.5” x 26” x 51.25”
72 x 66 x 130 cm		 43" x 37" x 79.5"
109 x 93 x 201 cm		 $ 18,110
ULF701U 710L / 25 cu. ft. 30 4 adjustable
(5 compartments)		 -40ºC to -85ºC 34” x 25” x 51.25”
86 x 63 x 130 cm		 50" x 37" x 79.5"
127 x 93 x 201 cm		 $ 20,005
ULF801U 792L / 28 cu. ft. 30 4 adjustable
(5 compartments)		 -40ºC to -80ºC 38” x 25” x 51.25”
96 x 63 x 130 cm		 54" x 37" x 79.5"
137 x 93 x 201 cm		 $ 24,830
ULF901U 877L / 31 cu. ft. 35 4 fixed
(5 compartments)		 -40ºC to -80ºC 42” x 25” x 51.25”
106 x 63 x 130		 60.5" x 37" x 79.5"
153 x 93 x 201 cm
 $ 25,150


Click on the links below to download the associated PDFs.

ULF Series Ultra Low Freezers

ULT Freezer and Refrigerator Buyer’s Guide

To download Operational Manual, visit our Technical Support Center
