Ultra-Low ULF Platinum Series Horizontal (Chest) Freezers

-40˚C to -85˚C

$ 1.00 1.0 USD $ 1.00

Not Available For Sale

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us
https://www.yamato-usa.com/web/image/product.template/43/image_1920?unique=fe871bd

Looking for an Ultra-Low Upright Freezer?

Features


2X Variable Speed Hermetic Compressors
Temperature Hi/Low Alarm with Real-Time Email & Text Notifications
​
Intuitive Touchscreen Interface
​
Battery Backup

Excellent Temperature Stability
​
Remote Access Via Smart Devices

User Access Control

Automated Data Logging

CFC & HCFC free
​
COVID-19 Vaccine Storage

Energy Saving

Primary Uses

  • Clinics
  • Research
  • Small laboratories
  • Hospital rooms
  • Medical clinics

40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

COMMON SPECIFICATIONS OF HORIZONTAL (CHEST STYLE) MODELS

Model ULF Platinum Series
Temperature range -40ºC to -85ºC / -40ºC to -80ºC
Temperature control system Touch Screen control
Displays set point and chamber temperature
Hi/Low Alarm W/ Email and SMS notification
Alarm Relay Dry Contacts
Power Failure Dry Contacts
Battery Back-up
Viewable Temperature graph
Data logging downloadable via USB or FTP
Multi-Level Security
VNC Remote Access via PC / smart devices
Digital alarm system with relay Battery operated alarm system will emit an audible and visual signal when there is a mechanical or electrical failure. Alarm has over and under temperature setting, alarm
silencing switch, and battery test switch. Also provided is a relay for remote alarm hook-up.
Access port Mounted in left hand side of the cabinet will be a 1/2" porthole leading into the chilling chamber, complete with plugs
Refrigeration system Cascade type - Two hermetic compressors.
CFC & HCFC free refrigerants
Construction Chamber is 14-ga. zinc coated galvanized steel.
Exterior is 16-ga. steel. Powder coated cool gray finish.
Electrical requirements 115V, 60 Hz, 1 phase
208V, 60 Hz, 1 phase
230V, 60 Hz, 1 phase
220V, 50 Hz, 1 phase
220V, 60 Hz, 1 phase
Optional accessories Chart recorder, CO² and LN² back-up system, Racks, Cold safety gloves


UNIQUE SPECIFICATIONS OF HORIZONTAL (CHEST STYLE) MODELS

Model Capacity Rack Capacity Temp. Range Internal Dimensions External Dimensions List Price

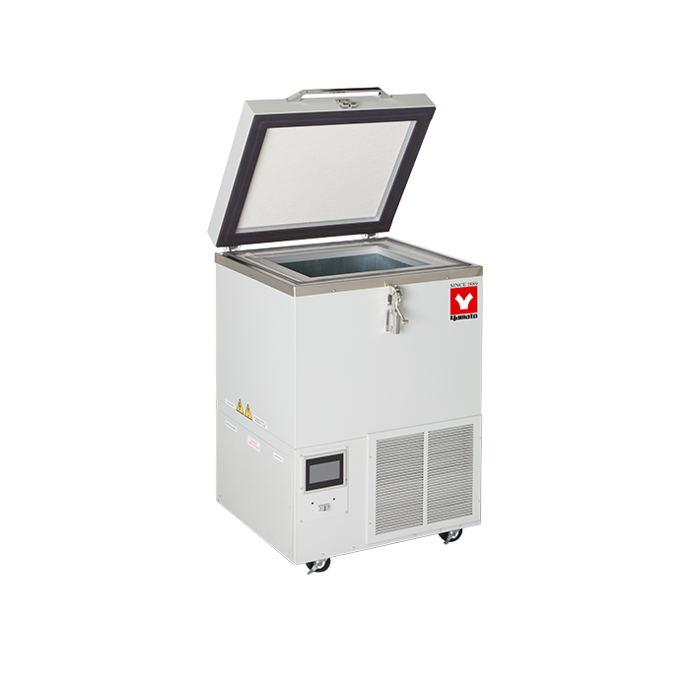

ULF001CP 56L / 2 cu. ft. 6 -40ºC to -85ºC 17” x 14” x 14”
43 x 35 x 35 cm		 25.25" x 25.75” x 40”
64 x 65 x 101		 $13,670
ULF101CP 83L / 3 cu. ft. 8 -40ºC to -85ºC 24” x 12” x 18”
60 x 30 x 45 cm		 34.5" x 25.25" x 48"
87 x 64 x 121		 $13,840

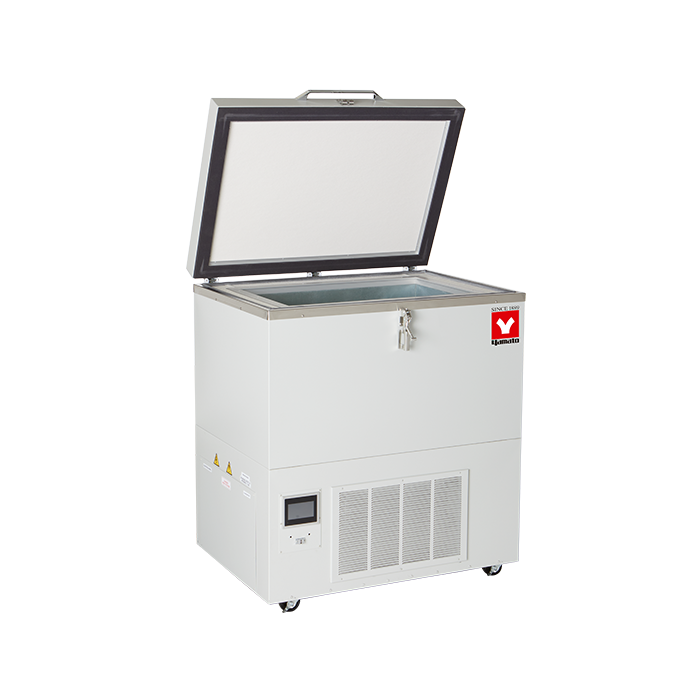

ULF201CP 142L / 5 cu. ft. 15 -40ºC to -85ºC 30” x 18” x 16”
76 x 45 x 40		 40.5” x 31” x 47”
102 x 81 x 119		 $14,060

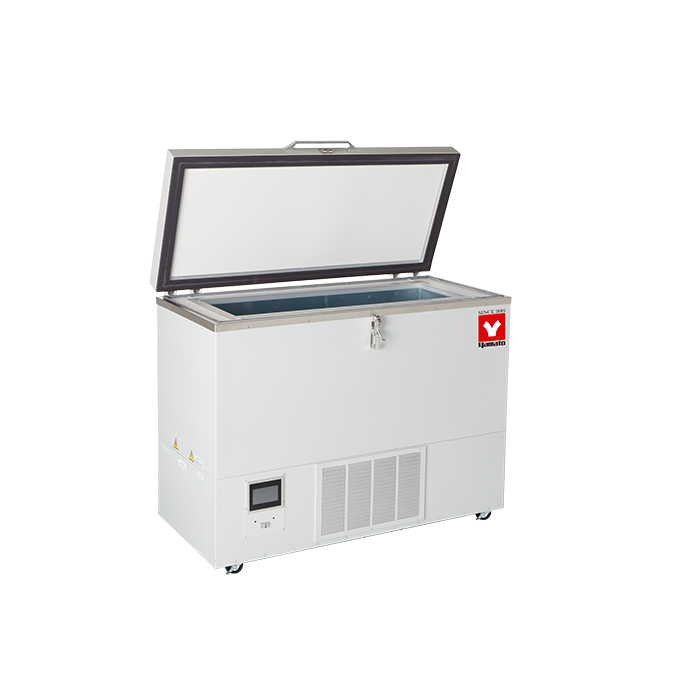

ULF301CP 255L / 9 cu. ft. 16 -40ºC to -85ºC 46” x 16” x 20”
116 x 40 x 50		 57.5" x 29" x 46.5"
146 x 73 x 116		 $16,455
ULF401CP 340L / 12 cu. ft. 27 -40ºC to -85ºC 55” x 19” x 20”
139 x 48 x 50		 65.5" x 32" x 47.5"
166 x 81 x 120		 $18,535
ULF501CP 400L / 14 cu. ft. 30 -40ºC to -85ºC 62” x 20” x 20”
157 x 50 x 50		 72.5" x 33" x 47.5"
184 x 83 x 120		 $19,690

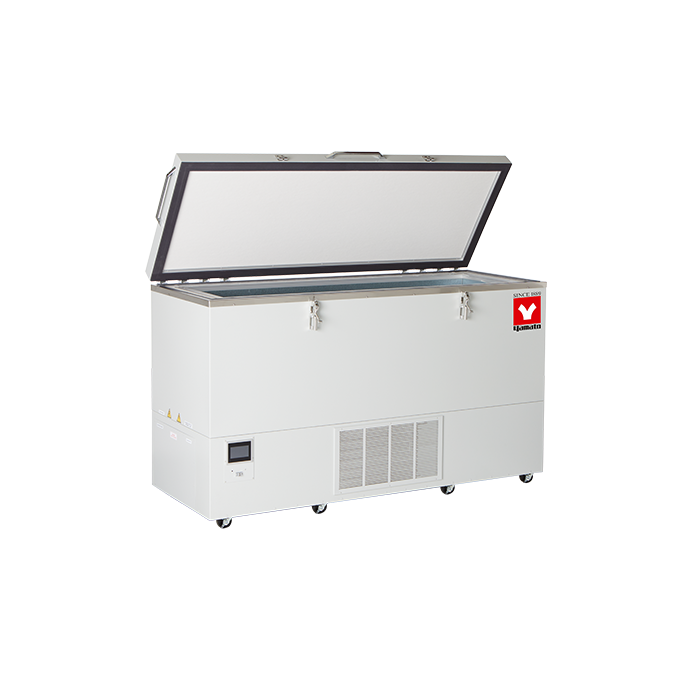

ULF601CP 480L / 17 cu. ft. 36 -40ºC to -85ºC 69” x 20” x 21”
175 x 50 x 53		 81.25" x 33.5" x 48.5"
206 x 85 x 123		 $21,340
ULF701CP 594L / 21 cu. ft. 36 -40ºC to -80ºC 81" x 21.5" x 21"
205 x 54 x 53		 91" x 36" x 49"
231 x 91 x 124		 $25,985
ULF801CP 626L / 22 cu. ft. 36 -40ºC to -85ºC 67” x 19” x 30”
170 x 48 x 76		 98” x 36” x 43.5”
248 x 91 x 110		 $30,310
ULF901CP 766L / 27 cu. ft. 48 -40ºC to -80ºC 67” x 23” x 31.25”
170 x 57 x 79		 98” x 36” x 43.5”
248 x 91 x 110		 $31,460


Click on the links below to download the associated PDFs.

ULF Platinum Series Ultra Low Freezers

ULT Freezer and Refrigerator Buyer’s Guide

To download Operational Manual, visit our Technical Support Center
