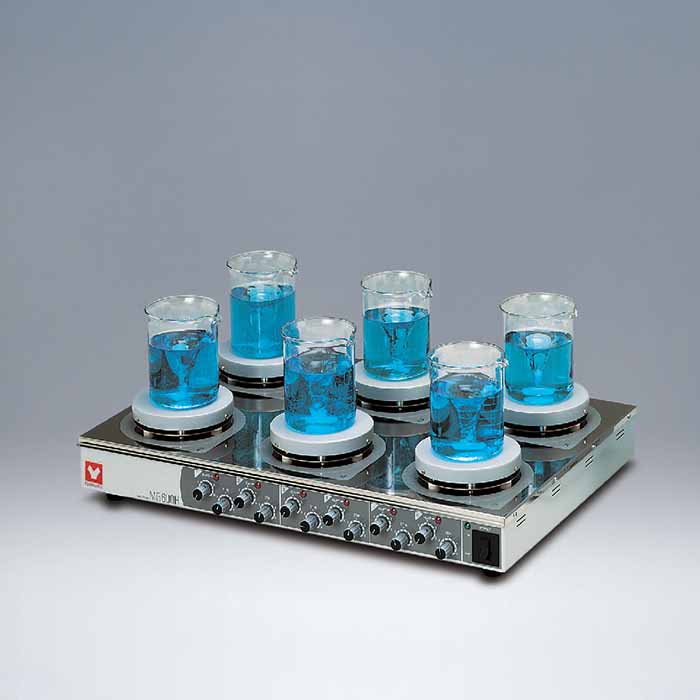

MG600H Magnetic Stirrer with Hot Plate

MG600H: 6 Point Controllable Type (individual stirring heating) magnetic stirrer with hot plate

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

MG600H-115V MG600H-220V

MG600H

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	MG600H-115V MG600H-220V
Plate material	Aluminum with ceramic coating
Plate dimensions	ø126mm x 6pcs.
Stirring capacity	100~2000ml x 6pcs.
Stirring rate	300~1500rpm
Heater	230W x 6pcs.
Temp. control	Triac input control type
Hot plate temp.	Max.250°C(W230mm x 6pcs. Individual temp. control (set by volume with OFF))
Motor	AC shading motor
Power source (50/60Hz)	AC115V 13.5A AC220V 7A with external transformer
External dimensions* WxDxH	606x420x122 mm
Vacuum gauge	Pirani Vacuum Measure
Weight	~14kg
Included accessories	Stirrer bar 30mm 6 pcs.

* Protrusions not included

Click on the links below to download the associated PDFs.

To download Operational Manual, visit our Technical Support Center
