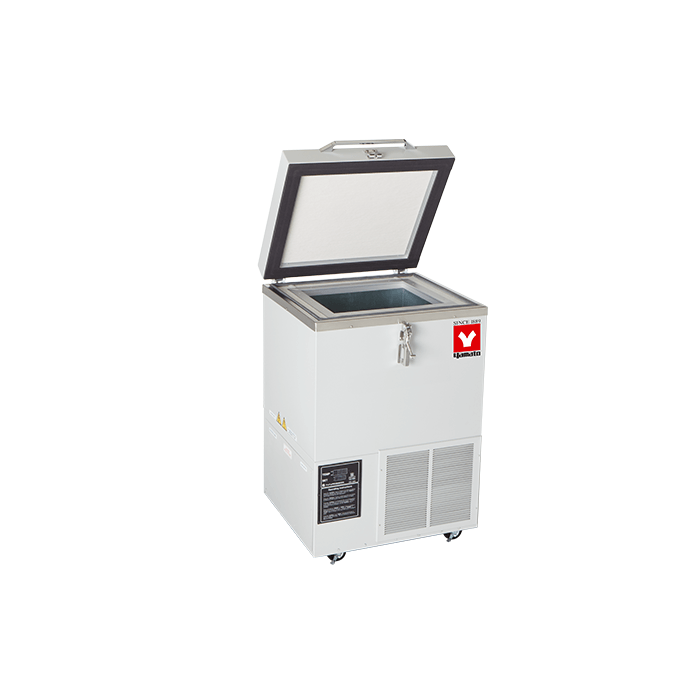

Low-Temp LTF Series Horizontal (Chest) Freezers

https://www.yamato-usa.com/web/image/product.template/60/image_1920?unique=43fe9c9

0˚C to -40˚C

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Low-Temp LTF Series Horizontal (Chest) Freezers?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

​Looking for a Low-Temp Upright Freezer?

Features


Multiple Temperature Displays

CFC & HCFC free
​
Single Hermetic Compressor

Storage for up to 575 cryoboxes

Battery-Operated Alarm
​
Relay for Remote Alarm
​Guaranteed Constant Temperature Setpoint

Low Energy Consumption

Primary Uses

  • Clinics
  • Research
  • Small laboratories
  • Hospital rooms
  • Medical clinics

40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

COMMON SPECIFICATIONS OF HORIZONTAL (CHEST STYLE) MODELS

Model LTF Series
Temperature range 0°C ~ -40°C / +32 ~ -40°F
Temperature control system Digital Control with two temperature displays. One display shows the set
temperature, the other shows the actual temperature in the freezer.
Digital alarm system with relay Battery operated alarm system will emit an audible and visual signal when there is
a mechanical or electrical failure. The alarm has an over and under temperature
setting, alarm silencing switch, and battery test switch. Also provided is a relay for
remote alarm hook-up.
Refrigeration system Single stage system with one hermetic compressor.
CFC & HCFC free refrigerants
Construction Chamber is 14-ga. zinc coated galvanized steel.
Exterior is 16-ga. steel. Powder coated cool gray finish.
Electrical requirements 115V, 60 Hz, 1 phase
208V, 60 Hz, 1 phase
230V, 60 Hz, 1 phase
220V, 50 Hz, 1 phase
220V, 60 Hz, 1 phase
Optional accessories Chart recorder, CO² and LN² back-up system, Racks, Cold safety gloves


UNIQUE SPECIFICATIONS OF HORIZONTAL (CHEST STYLE) MODELS

Model Capacity Rack Capacity Internal Dimensions External Dimensions List Price

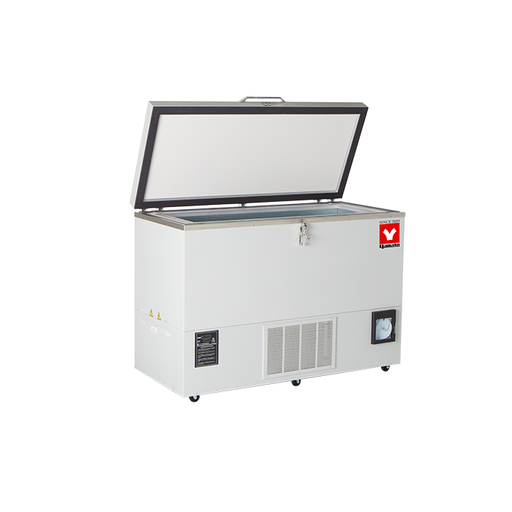

LTF001C 56L / 2 cu. ft. 6 17” x 14” x 14”
43 x 35 x 35 cm		 25.25" x 25.75” x 40”
64 x 65 x 101		 $ 9,045

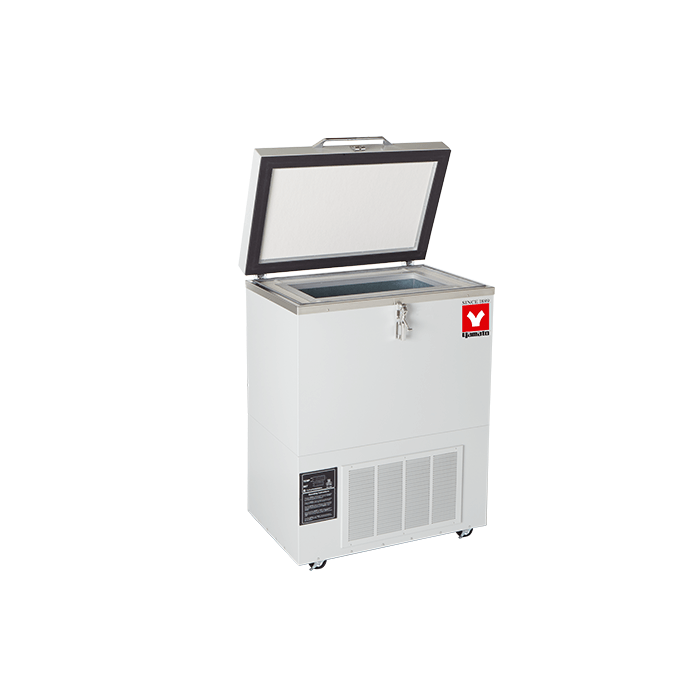

LTF101C 83L / 3 cu. ft. 8 24” x 12” x 18”
60 x 30 x 45 cm		 34.5" x 25.25" x 48"
87 x 64 x 121		 $ 9,380
LTF201C 142L / 5 cu. ft. 15 30” x 18” x 16”
76 x 45 x 40		 40.5” x 31” x 47”
102 x 81 x 119		 $ 9,620
LTF301C 255L / 9 cu. ft. 16 46” x 16” x 20”
116 x 40 x 50		 57.5" x 29" x 46.5"
146 x 73 x 116		 $ 12,055
LTF401C 340L / 12 cu. ft. 27 55” x 19” x 20”
139 x 48 x 50		 65.5" x 32" x 47.5"
166 x 81 x 120		 $ 14,320
LTF501C 400L / 14 cu. ft. 30 62” x 20” x 20”
157 x 50 x 50		 72.5" x 33" x 47.5"
184 x 83 x 120		 $ 15,715
LTF601C 480L / 17 cu. ft. 36 69” x 20” x 21”
175 x 50 x 53		 81.25" x 33.5" x 48.5"
206 x 85 x 123		 $ 17,220
LTF701C 594L / 21 cu. ft. 42 81" x 21.5" x 21"
205 x 54 x 53		 91" x 36" x 49"
231 x 91 x 124		 $ 20,915
LTF801C 626L / 22 cu. ft. 36 67” x 19” x 30”
170 x 48 x 76		 98” x 36” x 43.5”
248 x 91 x 110		 $ 26,225
LTF901C 766L / 27 cu. ft. 48 67” x 23” x 31.25”
170 x 57 x 79		 98” x 36” x 43.5”
248 x 91 x 110		 $ 27,655


Click on the links below to download the associated PDFs.

LTF Series Low Temperature Freezers

ULT Freezer and Refrigerator Buyer’s Guide

To download Operational Manual, visit our Technical Support Center
