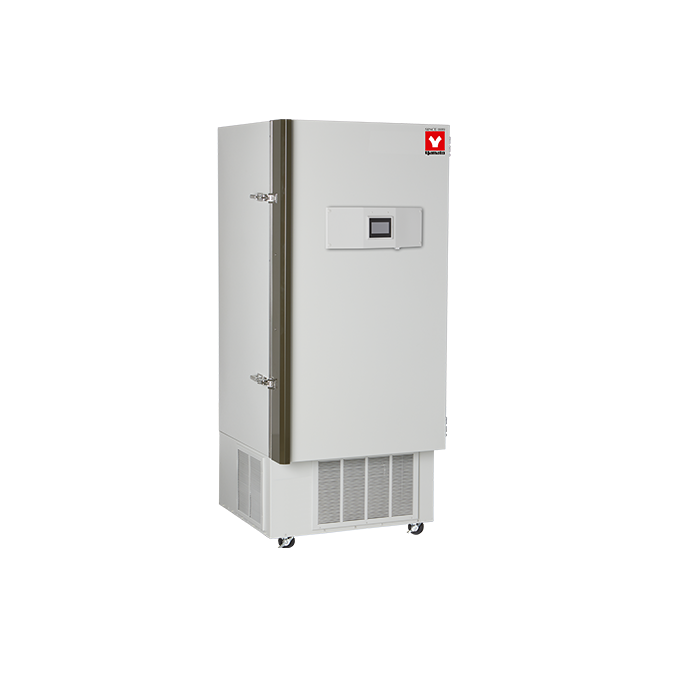

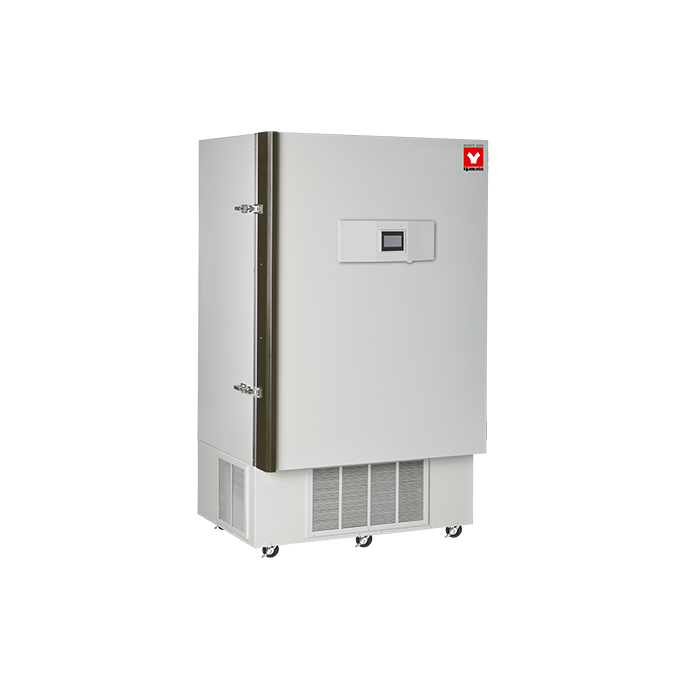

Low-Temp LTF Platinum Series Vertical (Upright) Freezers

https://www.yamato-usa.com/web/image/product.template/76/image_1920?unique=43fe9c9

0˚C to -40˚C

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us

Interested In Our Low-Temp LTF Platinum Series Vertical (Upright) Freezers?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

Looking for a Low-Temp Chest Freezer?


Features

​
Intuitive Touchscreen Interface
Temperature Hi/Low Alarm with Real-Time Email & Text Notifications

Automated Data Logging
​
Battery Backup
​
Remote Access Via Smart Devices

Energy Saving

User Access Control

CFC & HCFC free
​
Single Hermetic Compressor

Excellent Temperature Stability

Primary Uses

  • Clinics
  • Research
  • Small laboratories
  • Hospital rooms
  • Medical clinics
40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

COMMON SPECIFICATIONS OF VERTICAL (UPRIGHT STYLE) MODELS

Model LTF Platinum Series
Temperature range 0°C ~ -40°C / 32°F ~ -40°F
Temperature control system Touch Screen control
Displays set point and chamber temperature
Hi/Low Alarm W/ Email and SMS notification
Alarm Relay Dry Contacts
Power Failure Dry Contacts
Battery Back-up
Viewable Temperature graph
Data logging downloadable via USB or FTP
Multi-Level Security
VNC Remote Access via PC / smart devices
Digital alarm system with relay Battery operated alarm system will emit an audible and visual signal when there is a mechanical or
electrical failure. The alarm has an over and under temperature setting, alarm silencing switch. A relay
for a remote alarm hook-up is also provided.
Access port Mounted in left hand side of the cabinet will be a 1/2" porthole leading into the chilling chamber, complete with plugs
Refrigeration system Single stage system with one hermetic compressors.
CFC & HCFC free refrigerants
Construction Chamber is 14-ga. zinc coated galvanized steel.
Exterior is 16-ga. steel. Powder coated cool gray finish.
Electrical requirements 115V, 60 Hz, 1 phase
208V, 60 Hz, 1 phase
230V, 60 Hz, 1 phase
220V, 50 Hz, 1 phase
220V, 60 Hz, 1 phase
Optional accessories Chart recorder, CO² and LN² back-up system, Racks, Cold safety gloves


UNIQUE SPECIFICATIONS OF VERTICAL (UPRIGHT STYLE) MODELS

Model Capacity Rack Capacity Shelving Internal Dimensions External Dimensions List Price
LTF401UP 370L / 13 cu. ft. 15 4 adjustable
(5 compartments)		 20” x 22” x 51.25
50 x 55 x 130 cm		 35" x 34.5" x 79.5"
88 x 87 x 201 cm		 $18,480
LTF501UP 505L / 18 cu. ft. 20 4 adjustable
(5 compartments)		 23” x 26” x 51.25”
58 x 66 x 130		 40" x 36" x 79.5"
101 x 91 x 201 cm		 $19,000
LTF601UP 626L / 22 cu. ft. 25 4 adjustable
(5 compartments)		 28.5” x 26” x 51.25”
72 x 66 x 130 cm		 43" x 37" x 79.5"
109 x 93 x 201 cm		 $20,470
LTF701UP 710L / 25 cu. ft. 30 4 adjustable
(5 compartments)		 34” x 25” x 51.25”
86 x 63 x 130 cm		 50" x 37" x 79.5"
127 x 93 x 201 cm		 $22,160
LTF801UP 792L / 28 cu. ft. 30 4 adjustable
(5 compartments)		 38” x 25” x 51.25”
96 x 63 x 130 cm		 54" x 37" x 79.5"
137 x 93 x 201 cm		 $26,725


Click on the links below to download the associated PDFs.

LTF Platinum Series Low Temperature Freezers

ULT Freezer and Refrigerator Buyer’s Guide

To download Operational Manual, visit our Technical Support Center
