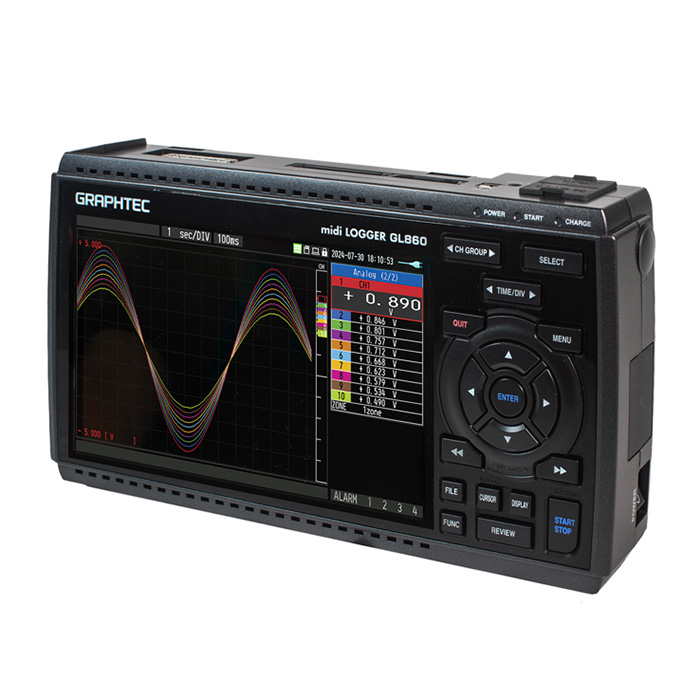

GL860 Isolated Multi-Channel Data Logger

https://www.yamato-usa.com/web/image/product.template/14348/image_1920?unique=43fe9c9

4 types of input terminals lineup including 30CH for the first time!

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

    Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

    Contact Us

    Interested In Our GL860 Isolated Multi-Channel Data Logger?

    Find out if this model is suitable for your application.

    Send me a quote

    Thanks for reaching out!

    Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

    GL860


    Features

    • 4 types of input terminals lineup including 30CH
    • Expandable from 20 channels to max. 200 channels, enabling measurement of various phenomena.
    • Compatible with remote control service G-REMOTE.
    • 6 new features: Faster sampling interval, Memory loop functions, CH copy function, Alarm history, Inter-CH operation, Modbus communication
    • Wireless measurement from your PC is available with the optional wireless LAN unit
    • 7” Color LCD Display
    • 8GB internal memory, SDHC to 32GB
    • 20mV to 100 Vdc & 1-5 Vdc full scale ranges
    • Thermocouples: K, J, E, T, R, S, B, N, C, RTD
    • 4 Pulse or Logic inputs, 4 Alarm Outputs
    • 10ms to 1H sample intervals & ext. sample
    • Independent start / stop triggers & ext. trigger
    • Record to GBD or CSV file format
    • USB 2.0, Ethernet & optional Wi-Fi capability
    • GL28-APS / GL-Connection SW GUI / G-Remote capable
    • Independent input type, alarm, trigger and EU scaling per channel 1
    40 years as a leading scientific lab equipment provider in the United States.
    All products come with a 1 year warranty.
    Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.
    Model GL860
    Number of analog inputs Maximum 200ch available for 1 terminal(20ch/30ch) or extension unit
    External Input (*1) Number of channels: Trigger of Sampling (1 channel), or External Sample Inputs 1ch
    Logic / Pulse (4 channels)
    Pulse input: Revolutions mode, Counts mode, Inst. mode
    Maximum input frequency: 50kHz
    Maximum number of count: 50kC/sampling
    External Output (*1) Alarm output: 4 ch
    Sampling interval 5ms-1h (5ms-50ms: voltage only, limited number of CH), external signal
    Scaling function 4 points can be set for each channel
    The temperature range scaling function is available.
    A/D converter Δ∑ type, 16Bit (effective resolution: 1/40,000 of ± range)
    PC I/F Ethernet (10BASE-T / 100BASE-TX)
    USB2.0 (Hi-SPEED) ,Wireless LAN (Option)
    Storage medium (*2) Storage: Built-in memory : approx. 8GB, SD card slot: 1
    Data format : GBD / CSV
    Recording mode Default, Ring, Relay
    Other functions Calculation function, Trigger, Alarm function, Data backup function (*3)
    Display 7-inch TFT color LCD (WVGA: 800 x 480 dots)
    Operating environment
    (including terminals)    		 0 - 45º, 5 - 85% RH
    (0 to 40°C when operated in batteries / 15 to 35°C when a battery is charging)
    Power supply AC adapter: AC100-240V / 50-60Hz
    DC input: DC8.5-24V(Option: B-514 is required)
    Battery pack: DC7.2V(2875 􀌼Ah)2 packs can be mounted (Optional item)
    Power consumption 38VA or lower (when using the AC adapter, LCD ON, recharging battery, AC100V)
    Dimentions [WxDxH] (approx. ) (*Refer to terminal specifications)
    Weight (approx.) (*Refer to terminal specifications)
    Vibration resistance Equivalent to Automobile parts Type 1 Class A

    *1 : Input/Output cable for GL (option B-513) is required.

    *2 : Recorded in 2GB per file, SD cards available, Supported SDHC, up to approx. 32GB memory

    *3 : If the ring setting and external sampling function is ON, the backup function is not available.

    *4 : Operating temperature range: -25°C to +80°C

    *5 : OS that are no longer supported by the OS manufacturer are not supported by Graphtec

    Click on the link below to download the associated PDF.


    GL860 Data Logger Catalog
