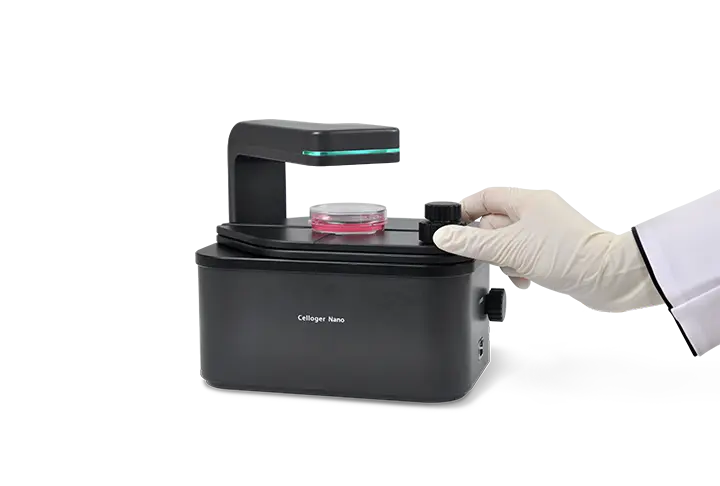

Celloger® Nano

A wireless benchtop digital microscope designed for real-time cell monitoring and quick assessment of cell conditions anywhere in your laboratory.

1.00 1.00

Not Available For Sale

    Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

    https://www.yamato-usa.com/web/image/product.template/14381/image_1920?unique=031f6d1

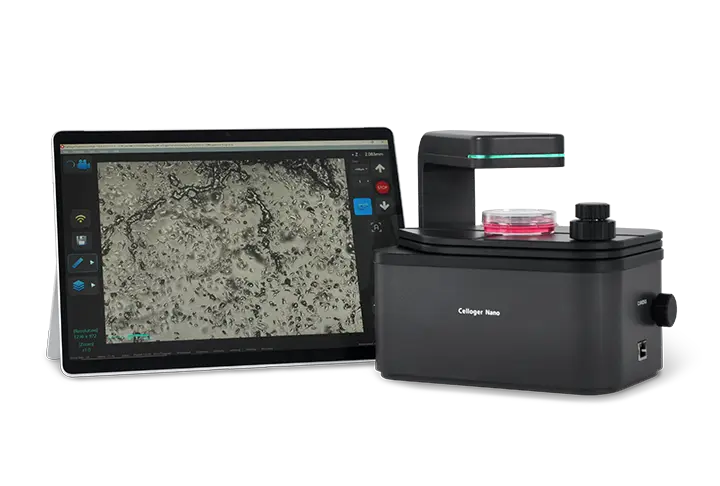

    Benchtop Digital Microscope

    Celloger® Nano is a benchtop digital microscope equipped with a wireless connection, enabling you to check the state of your cells in real-time from any location within your laboratory. With all the necessary functions to check the cells, you can quickly assess the condition of your cells.

    Expand your cell-based research with Celloger® Nano, a benchtop digital microscope.

    Key Features

    Real-Time Cell Monitoring

    Easy portability and installation

    Wireless data transfer via tablet

    Compatible with various vessel types

    User-friendly interface

    One-click time-lapse video creation




    Quick Cell Check

    Celloger® Nano is a system perfectly suitable for confirming the conditions of cells in various locations depending on the researcher's experimental needs. It enables quick and efficient inspection of cells, allowing researchers to rapidly identify potential issues in their samples.

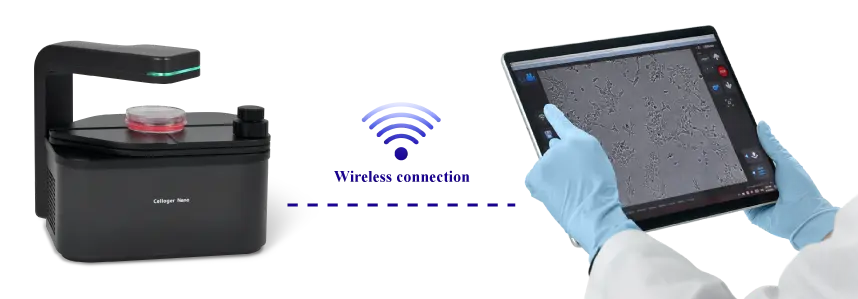

    Suitable for Tablet

    The wireless connection enables easy data transfer, allowing you to check your cells without space constraints. It provides software optimized for laptops and tablets, ensuring a seamless user experience.

    Celloger® Nano can be easily installed without a complicated connection process, saving you time.

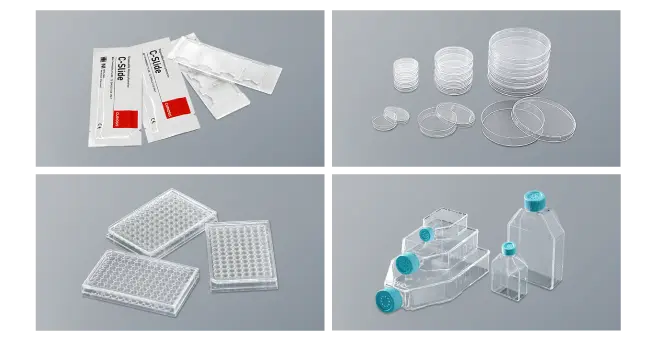

    Multiple Vessel Types

    Different kinds of vessels can be used in Celloger® Nano using its wide stage that gives enough space for large labware placement

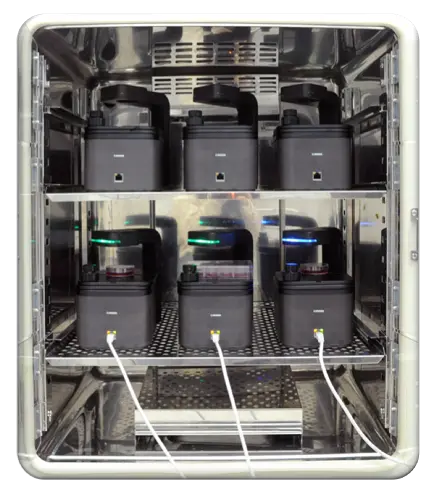

    Fit into standard C0₂ Incubator

    Celloger® Nano is a very compact system with a size almost equivalent to half of A4 paper. Compared to other products, several Celloger® Nano systems can fit into a standard CO₂ incubator.

    Maintaining the performance of a device working in a hot and humid environment is very challenging. With Celloger® Nano, it is equipped with a fan that minimizes risk factors such as preventing moisture from forming and making it easier for maintenance.




    User Friendly Functions

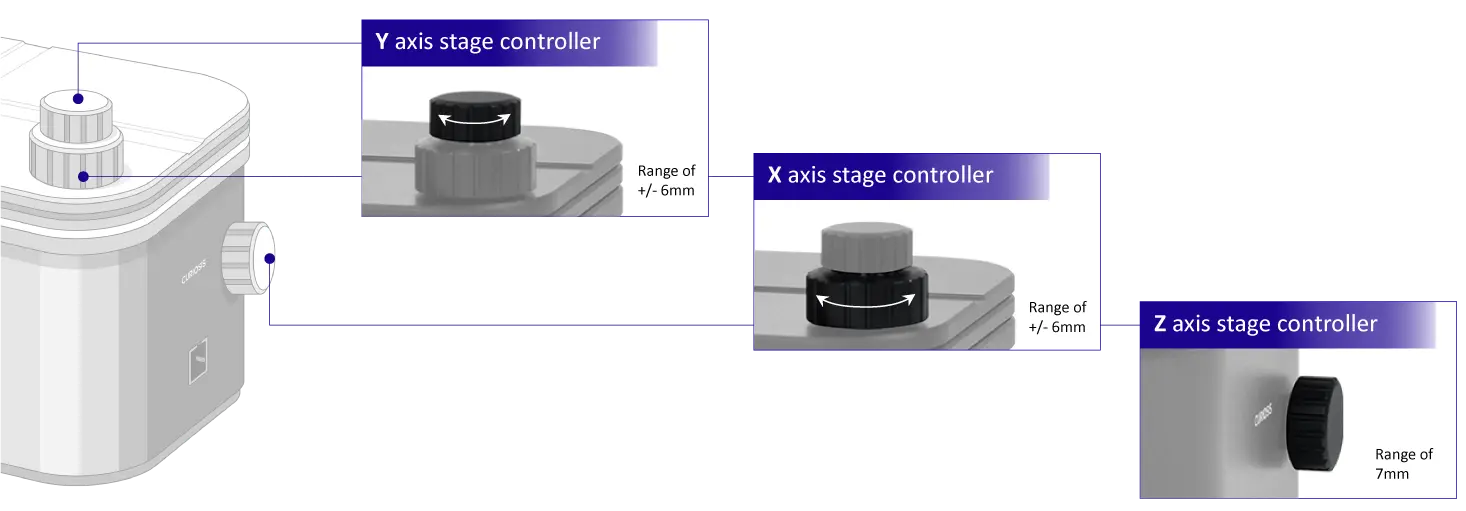

    Precise Stage Controller

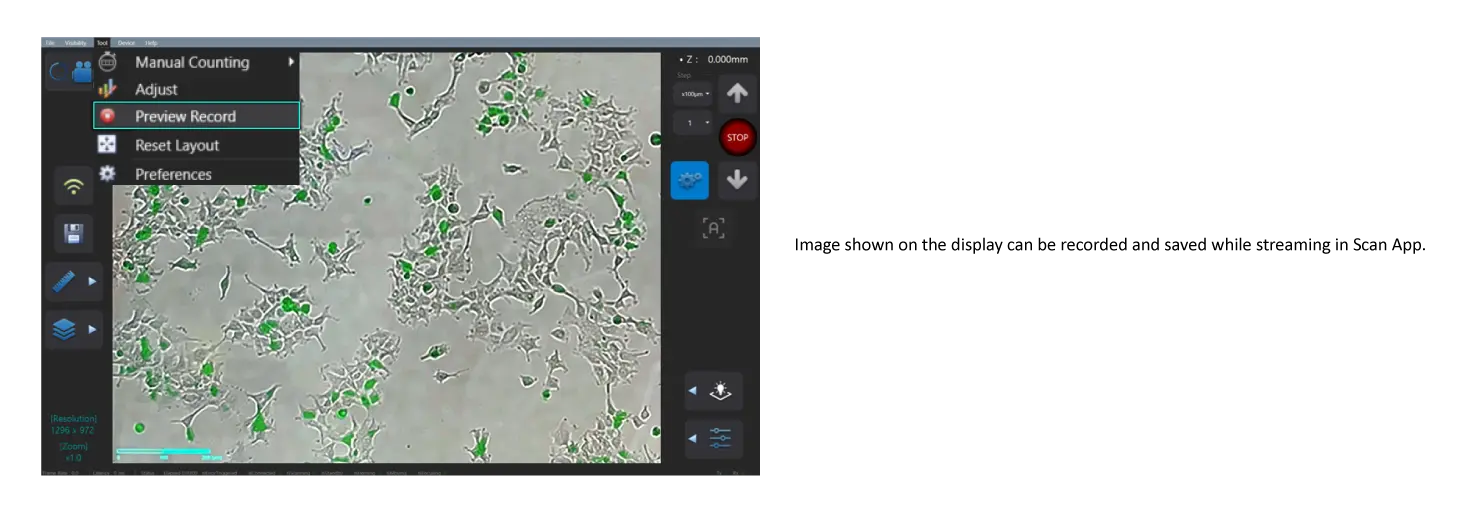

    Preview Record

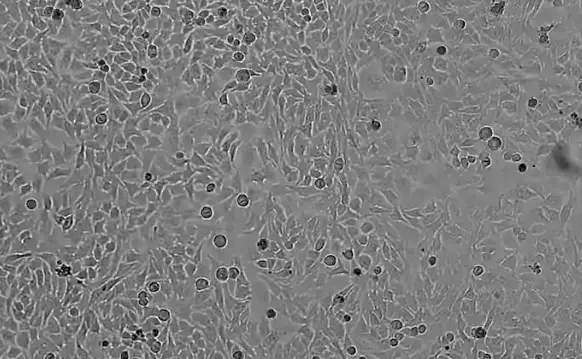

    Applications

    Apoptosis

    Cell Morphology

    Cell Prolifiration

    Cytotoxicity

    Transfection

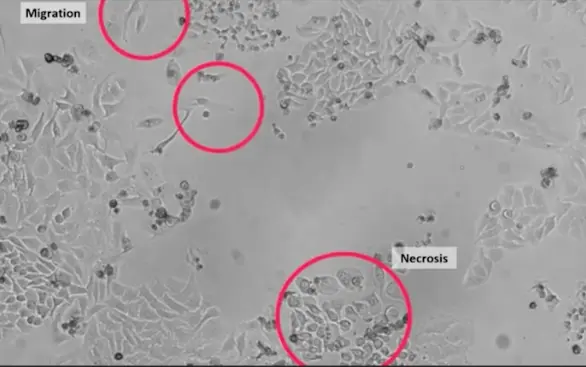

    Wound Healing Assay



    Video






    Specifications

    Dimension 226 × 358 × 215 mm
    Weight 5.6kg / 12.3lb
    Objective Lens 4X / 10X
    Field of view 2X (2.5 × 1.9 mm) / 4X (1.2 × 0.9 mm) / 10X (0.6 × 0.4 mm)

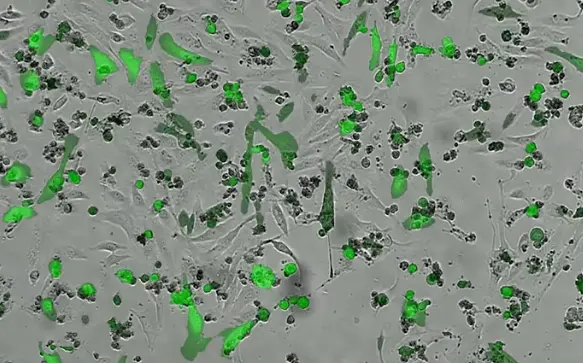

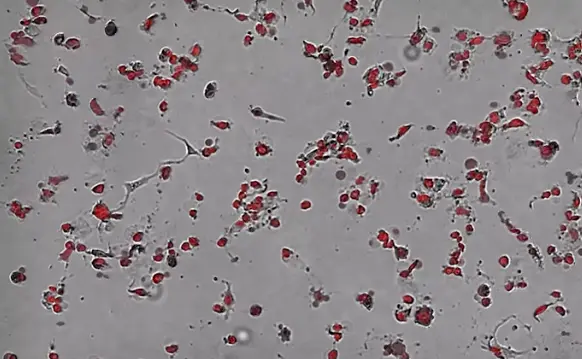

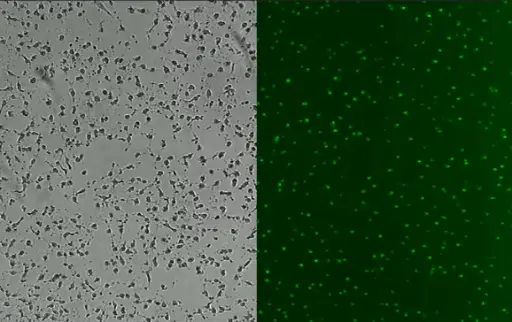

    Imaging modes Brightfield, Fluorescence(Green / Red)
    Fluorescence Green: Excitation (470/40x) / Emission (510lp)
    Red: Excitation (525/30x) / Emission (570lp)
    Light source LED
    Camera 5MP CMOS
    Image Resolution 1.25MP
    Stage Motorized XYZ
    Imaging positions Multiple
    File export format TIFF, AVI (JPEG, PNG)
    Culture vessels Flask, dish, well plate, slide
    Operating environment 10~40°C, 20~95% humidity
    Power requirements 100-240V, ~50/60Hz



    Downloads

    Celloger® Nano Brochure EN

    Celloger® Nano Quick Manual EN
