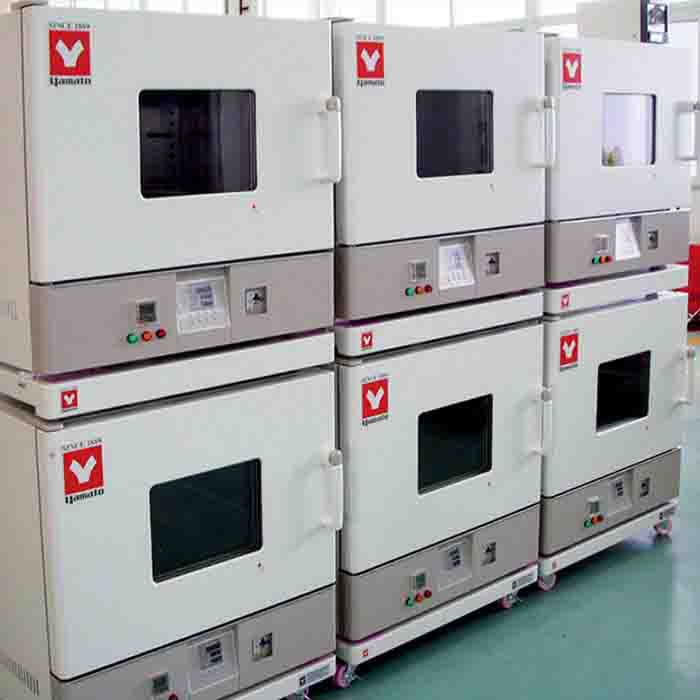

Yamato C1006 Combination Forced Convection Oven

Space saving stack solution for forced convection industrial process ovens

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

C1-006

Use platform stands to combine one machine with several units to save space
Each door is equipped with an electromagnetic lock
Easy operation, available for fixed temperature, program, quick auto stop, auto stop and auto start operations
Self-diagnostic circuit (abnormal temperature sensor, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, ELB to prevent over-current, key lock, etc.

40 years as a leading scientific lab equipment provider in the United States.

All products come with a 1 year warranty.

Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

Model	C1-006
Method	Forced convection
Operating temp. range	Room temp. +10°C ~260°C
Temp. adjustment accuracy	±1.0°C (at 210°C)
Temp. distribution accuracy	±2.5°C (at 210°C)
Operation function	Fixed temp., program, auto stop and auto start operations
Additional function	Deviation correction, key lock, power outage compensation
Internal dimension	W700×D500×H500mm (single)
Power source	Single phase AC220V
