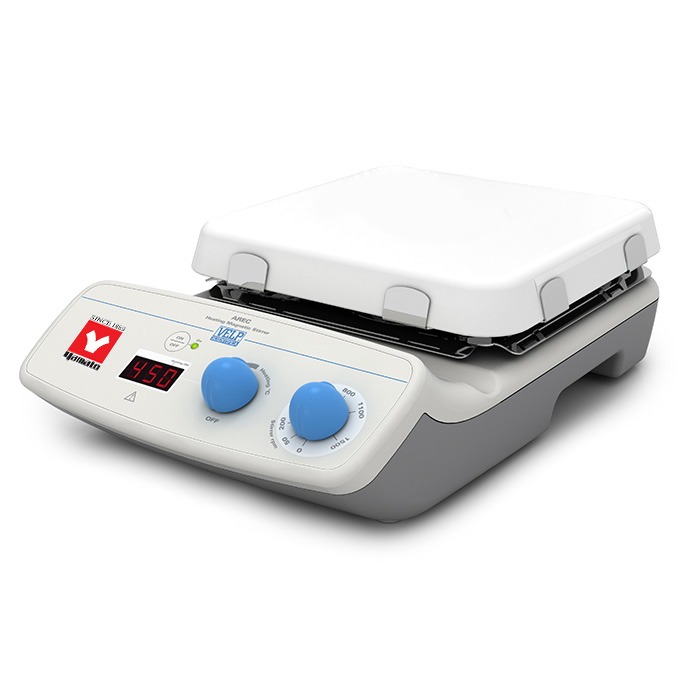

Yamato AREC-F Series Heating Magnetic Stirrers with Ceramic Plates

https://www.yamato-usa.com/web/image/product.template/138/image_1920?unique=6d943ef

This magnetic stirrer is used to mix liquids using a magnetically driven stir bar placed inside the vessel. The size and shape of the magnetic stir bar determines the stirring efficiency at any given speed.

The instrument is turned on using the ON/OFF button. Stirring speed and temperature of the heating plate are adjusted using relative knobs on the front panel. Values are indicated on the digital display.

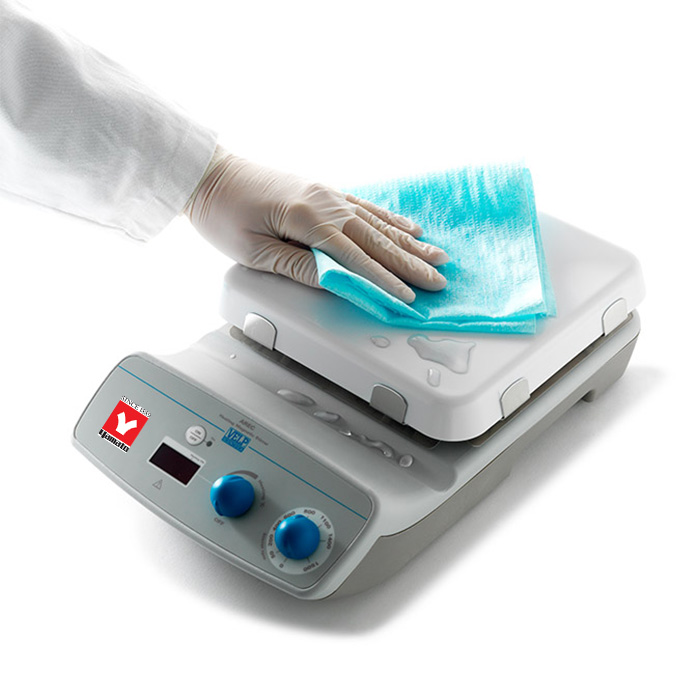

The magnetic stirrer with ceramic heating plate obtains higher temperature compared to traditional aluminium heating plate and takes less time to heat the sample. Ceramic is an inert and very hard material resistant to almost any type of chemical or mechanical aggression. Its surface characteristics remain unaltered over time.

$ 1.00 1.0 USD $ 1.00

$ 1.00

Not Available For Sale

  • Model

Please contact our team for help with this particular configuration here. Our expert team will respond to you very promptly.

Contact Us
Model: AREC-F20500011

Interested In Our Yamato AREC-F Series Heating Magnetic Stirrers with Ceramic Plates?

Find out if this model is suitable for your application.

Send me a quote

Thanks for reaching out!

Your message was delivered to an application expert who will respond as soon as possible (typically within 12 hours).

AREC--F20500011​

40 years as a leading scientific lab equipment provider in the United States.
All products come with a 1 year warranty.
Every product is made through environmentally conscious methods and remains eco-friendly all throughout its life cycle.

ModelAREC-F20500011
Programmable temp. range5°C ~ 550°C
Type of temperature controlDigital
Over temperature protectionYes
Stirring capacity15L of H₂O
Programmable speed range50-1500 rpm
Type of motor controlElectronic
Noise level<< 80 dBa
Temperature range+5 ...+40°C
Storage temperature range-10 ... +60°C
Maximum humidity80%
Maximum altitude4000m
Power supply230V 50-60Hz (F20500011)
Dimensions WxHxD203 x 94 x 344 mm
Weight3.5 kg
Overall power800W
Dimensions of heating plate180 x180 mm
Optional accessoriesMagnetic stir bar ø6x35mmA00001056
Magnetic stir bar ø10x40mmA00001060
Magnetic stir bar ø9.5x60mmA00001061
Hemispheric bowl for 250ml flasksA00001071
Hemispheric bowl for 500ml flasksA00001072
Hemispheric bowl for 1000ml flasksA00001073
Support rodA00001069
Knob10002097
Foot10000239
Promo Price$ 420


Click on the links below to download the associated PDFs.

AREC Heating Magnetic Stirrer

Stirrer and Shakers Buyer's Guide

To download Operational Manual, visit our Technical Support Center
